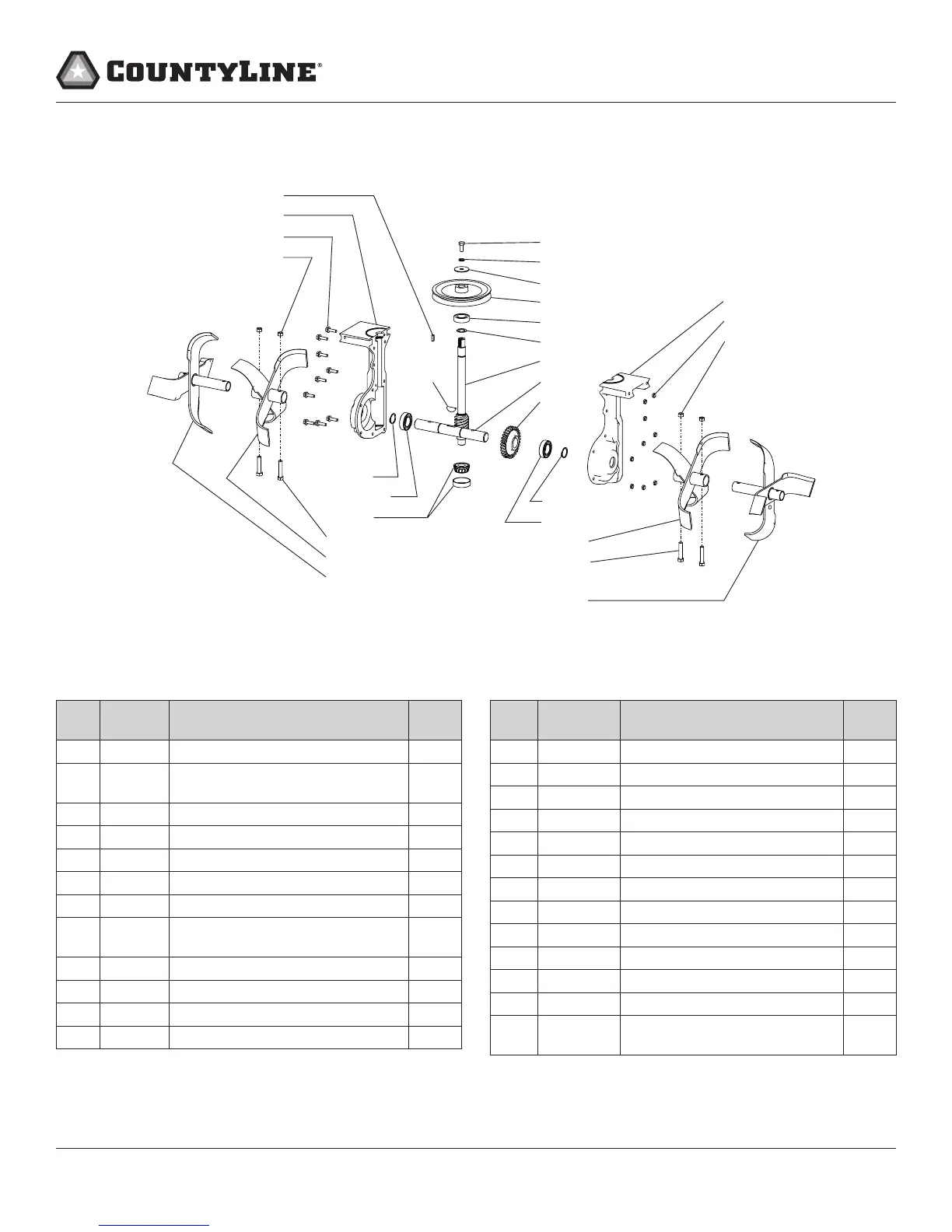

TINES & TRANSMISSION PARTS
REF.
NO.
PART # DESCRIPTION QT Y.
1 1511 BOLT,SFHH1/4-20X7/8” 9
2 1601 BEARING, TAPERED
(includes cone & race)
1
3 1701 KEY,HALFMOON1/4X1” 1
4 1810 SNAP RING, EXTERNAL 2
5 3116 GEAR, BRASS 1” ID 1
6 3122 SHAFT,DRIVE 1
7 3179 PULLEY, SINGLE GROOVE 1
8 3205W BEARING, SEALED 1” ID (replaces 3205
bearing & 747 spacer)
2
9 3322 SHAFT,TINE1” 1
10 3323 TINESET,OUTSIDERIGHT 1
11 3324 TINE SET, INSIDE 2
12 3326 TINE SET, OUTSIDE LEFT 1
REF.
NO.
PART # DESCRIPTION QT Y.
13 3364 KEY3/16X1/2” 1
14 504 LOCKWASHER,SPRING5/16” 1
15 56100B CASTING,RIGHTSIDE 1
16 56101B CASTING, LEFT SIDE 1
17 60G56 NUT,BI-WAYLOCK5/16-18 4
18 67538 NUT, NYLOC 1/4” 9
19 802 SCREW,HEXHD5/16-24X3/4” 1
20 803 WASHER5/16”IDX1-5/8”OD 1
21 8655 BOLT,HEXHD5/16-18X1-3/4” 4
22 8922 BEARING, BALL R12 1
23 8924 SNAP RING, EXTERNAL 3/4” 1
24 3310TRAN TRANSMISSION, COMPLETE 1
