CountyLine 17455 - Parts Breakdown

For additional information email info@ardisam.com or call 800-345-6007 M-F 8-5 CST
20
Operator’s Manual
17455 Front Tine Tiller

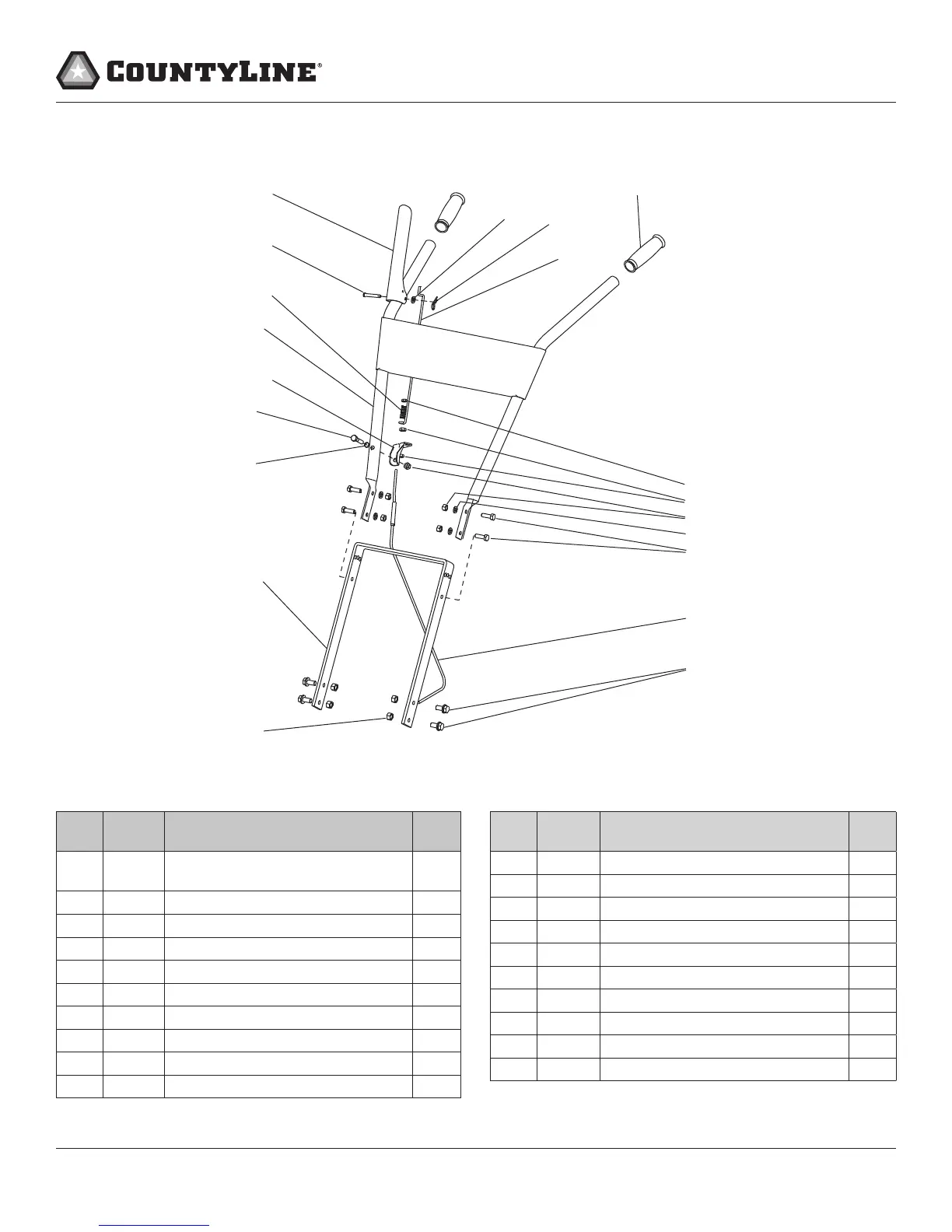

HANDLEBAR PARTS
REF.
NO.
PART # DESCRIPTION QT Y.
1 1501 BOLT,SOCFLGHEXHD5/16-18X3/4”
GR5
4
2 2104 NUT,BI-WAYHEXLOCK3/8-16 4
3 3108A CABLE ASSEMBLY W/FERREL 1
4 17619 HANDLEBAR,LOWERORANGE 1
5 17615 HANDLEBAR,ORANGEFRONTTINE 1
6 503 BOLT,HH5/16-18X1-1/2” 1
7 504 LOCKWASHER,SPRING5/16” 2
8 53606 NUT,HEXNYLOC10-24 1
9 53607 NUT,HEXJAM5/16-24 2
10 53612 LINK11-5/8”LONG 1
REF.
NO.
PART # DESCRIPTION QT Y.
11 15094 PIN, M6 X 40MM CLEVIS 1
12 53620 SPRING, COMPRESSION 1
13 53629 BRACKET,CABLEMOUNT 1
14 53631 GRIP,HANDLEBAR1”IDFLANGELESS 2
15 15095 HAIRPIN,1.22DIAMX23MM 1
16 17614 LEVER, CONTROL ORANGE 1
17 60G56 NUT,BI-WAYLOCK5/16-18 5
18 90138 BOLT,SFHH3/8-16X3/4” 4
19 WF516 WASHER,FLAT5/16” 4
20 15096 WASHER,FLAT14MM 1
