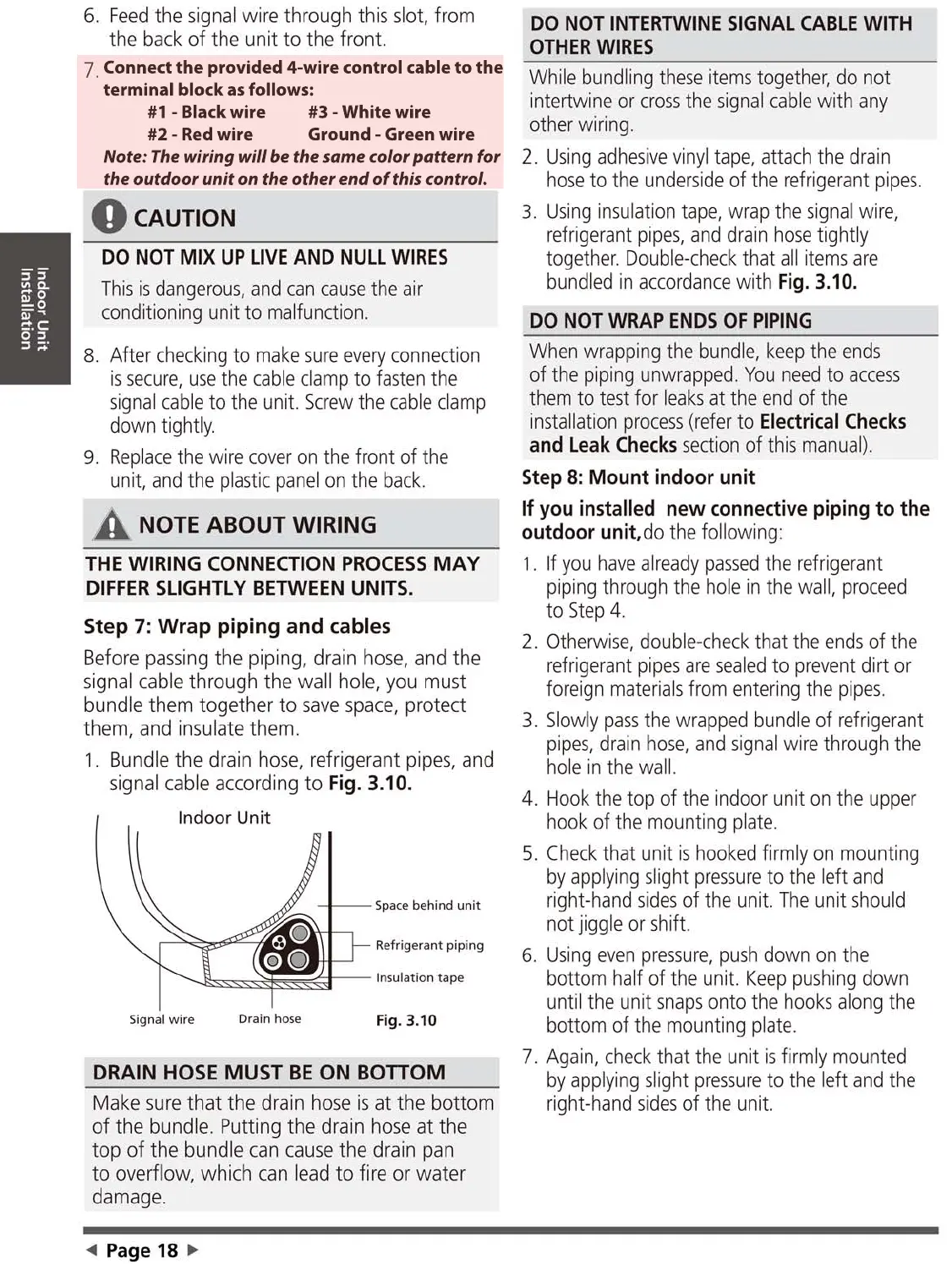

Connect the provided 4-wire control cable to the
terminal block as follows:
#1 - Black wire #3 - White wire
#2 - Red wire Ground - Green wire
Note: The wiring will be the same color pattern for
the outdoor unit on the other end of this control.
Connect the provided 4-wire control cable to the
terminal block as follows:
#1 - Black wire #3 - White wire
#2 - Red wire Ground - Green wire
Note: The wiring will be the same color pattern for
the outdoor unit on the other end of this control.
