PRODUCT SPECIFICATIONS / WATER FLOW DIAGRAM

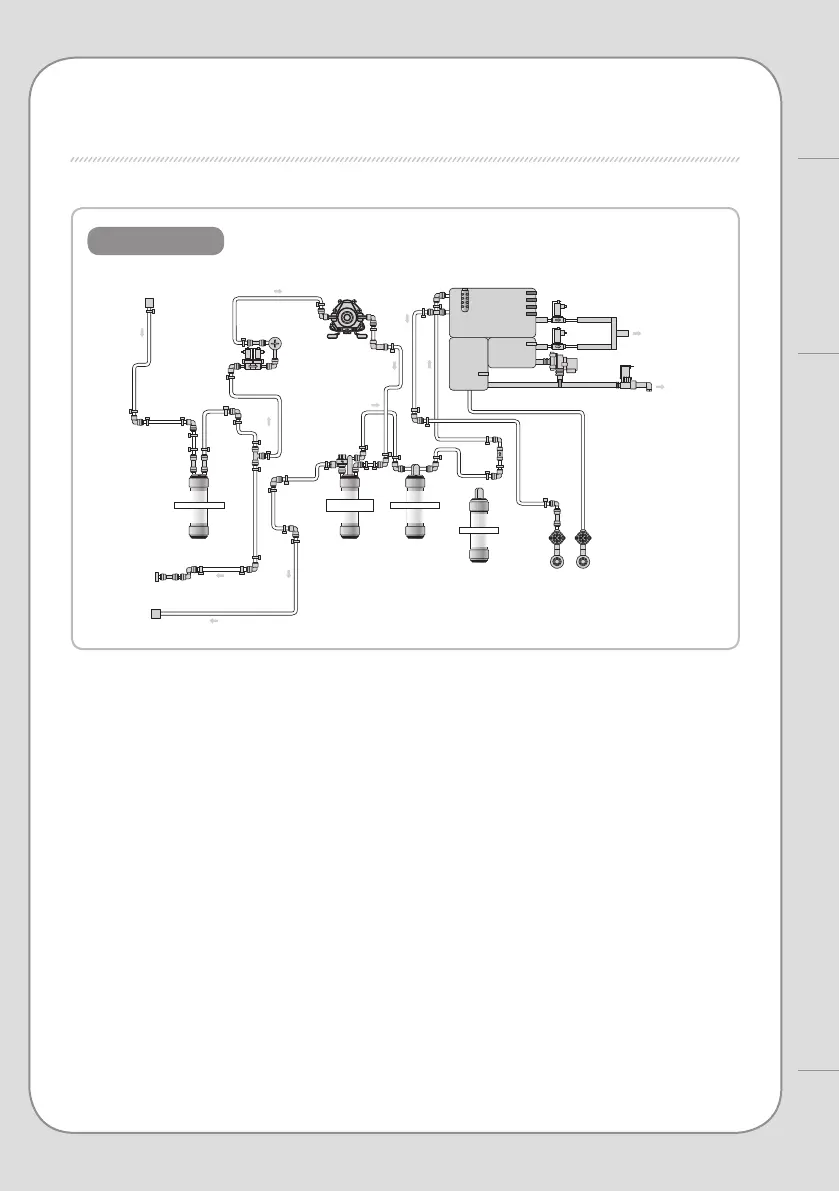

WATER FLOW DIAGRAM
CHP-7310R
Ambient Water
7.8 L
Cold Water
2.3 L
Hot Water
3.4 L
Booster Pump
Water Level Sensor
(Flood/High/Medium/Low)
Ambient Water
Extraction Valve
Ambient Water/
Cold Water Extraction
Hot Water Extraction
Hot Water Drain
(Color of cap: RED)
Extraction Drain For
Power Failure
(Color of cap: BLUE)
Disk Valve
Hot Water
Extraction Valve
Temperature Sensor
(Warm water)
Cold Water
Extraction Valve
Optional
Water Source Input
FEED/NOS
Valve
Flow
Sensor
Residential Water & Drainage
Residential Water
Control Valve
Cooking Water
Neo-Sense Filter
Plus Inno-Sense Filter
Mineral Filter
Membrane Filter
(RO)
Antibacterial Filter
