Coway CHP/CP-6310L - WATER FLOW DIAGRAM

Coway CHP/CP-6310L
40 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

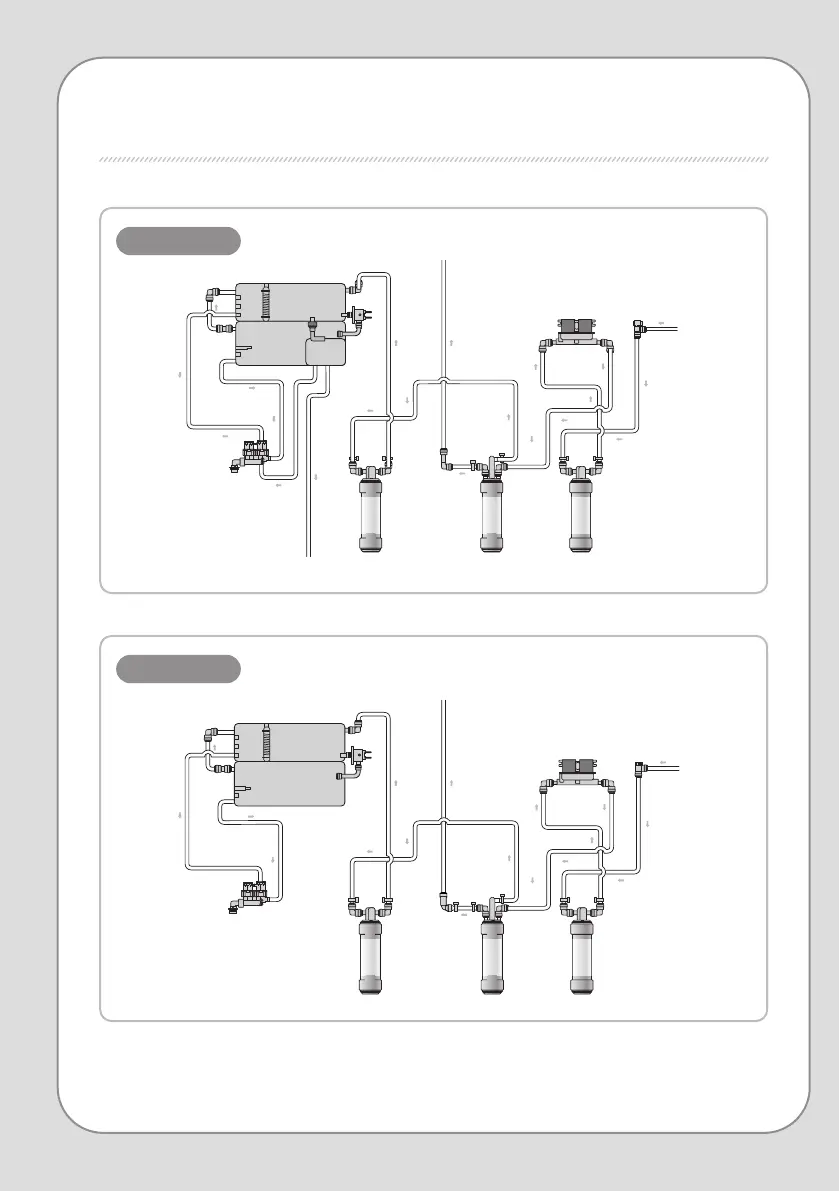

Room-temperature
water tank (2.5 L)
Cold water
tank (2.5 L)
Hot water
tank
Membrane filter (RO)
Neo-sense filter
Hot water
drain
Filtered water
drain
Connect
source water
FEED
VALVE
NOS
VALVE
3-way valve insertion
Injection connector flow channel
Plus Inno-sense filter
Room-temperature
water tank (2.5 L)
Cold water
tank (2.5 L)
Filtered water
drain
Connect
source water
2-way valve insertion
FEED
VALVE
NOS
VALVE
Plus Inno-sense filter
Membrane filter (RO)
Neo-sense filter
CHP-6310L
CP-6310L
WATER FLOW DIAGRAM
