Pedals

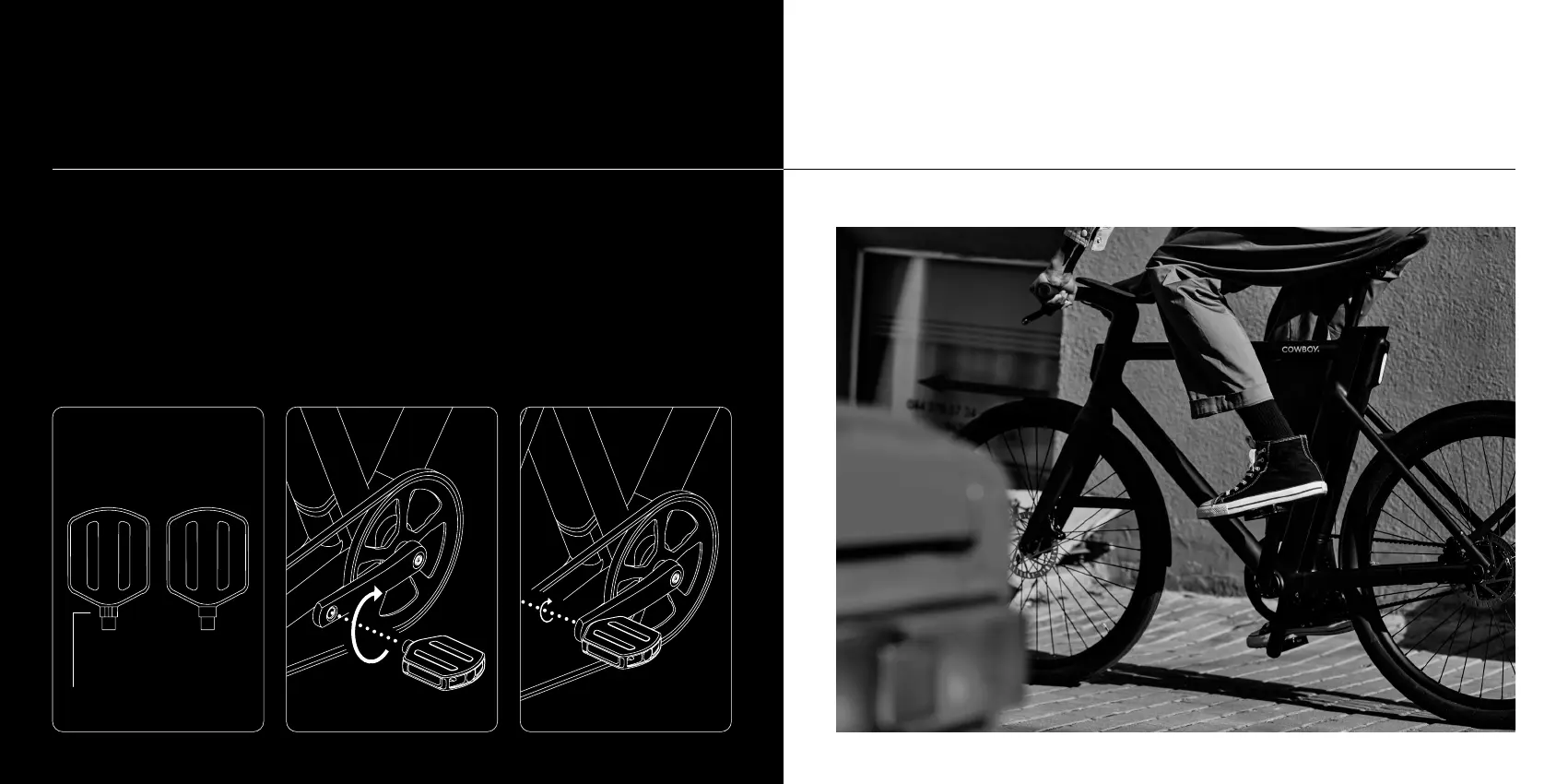

01 Know right from left
The right and left pedals are different.
You can tell them apart by their position
in the box and the three small grooves
on the left pedal axle only. You will also
find the stamped ‘R’ and ‘L’ on the end
of the axle.
03 Tighten up
Insert the shorter end of Allen key 6 into
the screw head on the side of the pedal
closest to the frame. Tighten as firmly
as possible.
Repeat these steps for the left pedal,
screwing counter-clockwise this time.
02 Screw in
Take the right pedal and screw it in
clockwise as far as you can by hand. It
should screw in easily. If it doesn’t, stop
right away as you may be damaging the
screw. Make sure the pedal is properly
aligned before trying again.
Allen key 6
3 grooves indicate
left pedal
