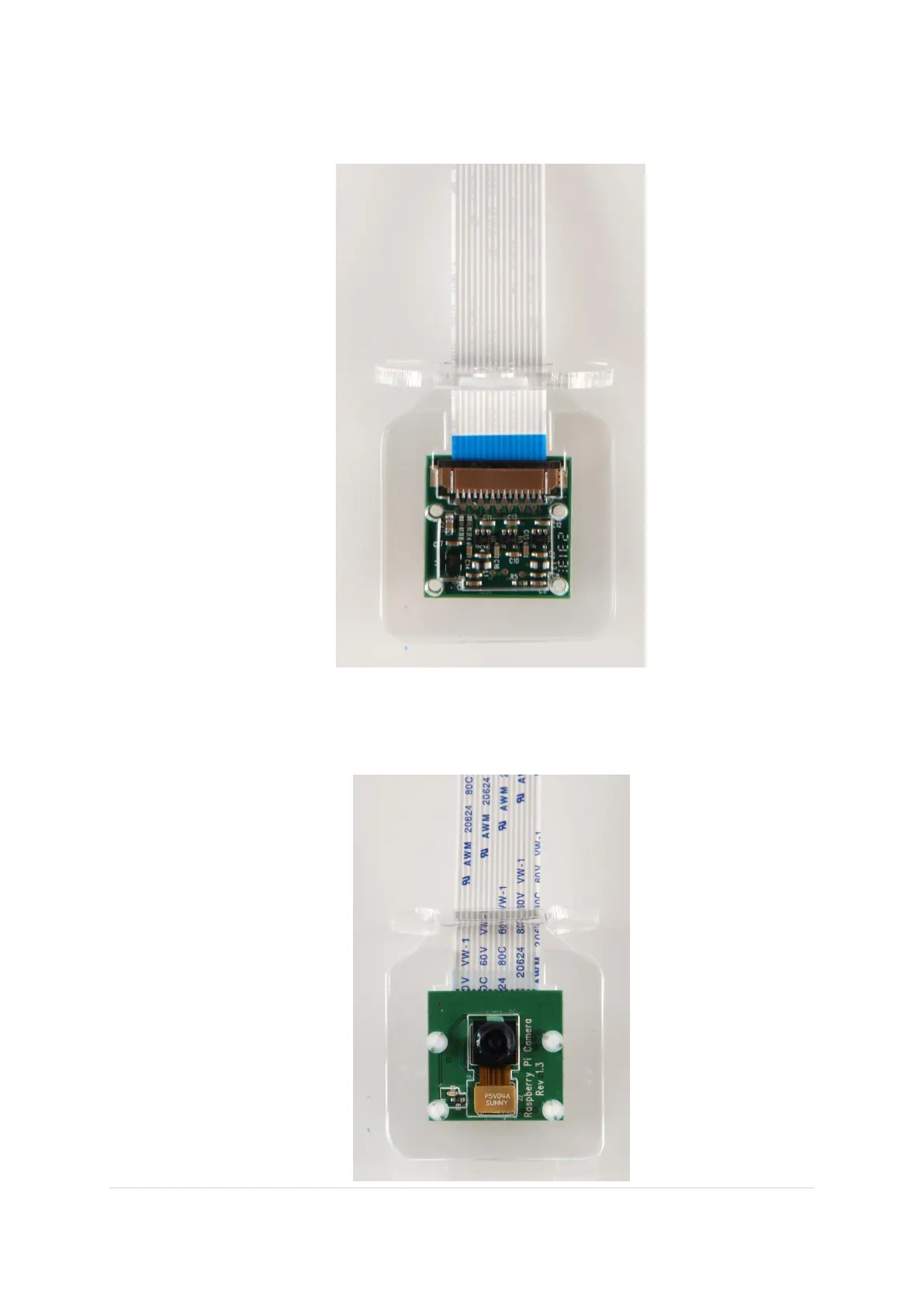

3. Turn over the camera and plastic mount then place the additional back plastic cut
out over the back of the camera, making sure it fits over the ribbon cable connector
4. Turn over the Camera and mount so the Pi camera is now facing towards you and
insert x4 M2 Nylon screws into the holes in the plastic mount and camera. Make sure
the screw fits through all three layers.
