CPE 50054 - SPECIFICATIONS; Parts Diagram and List

6 REV 50054-20130910
ENGLISH 50054
SPECIFICATIONS
1
2
2
3
3
4
5
5
5
6
7
3
8
9
10
0
11
12
13
14
15
16
17
18
16
17
18
15
18
16
17
17
16
19
5

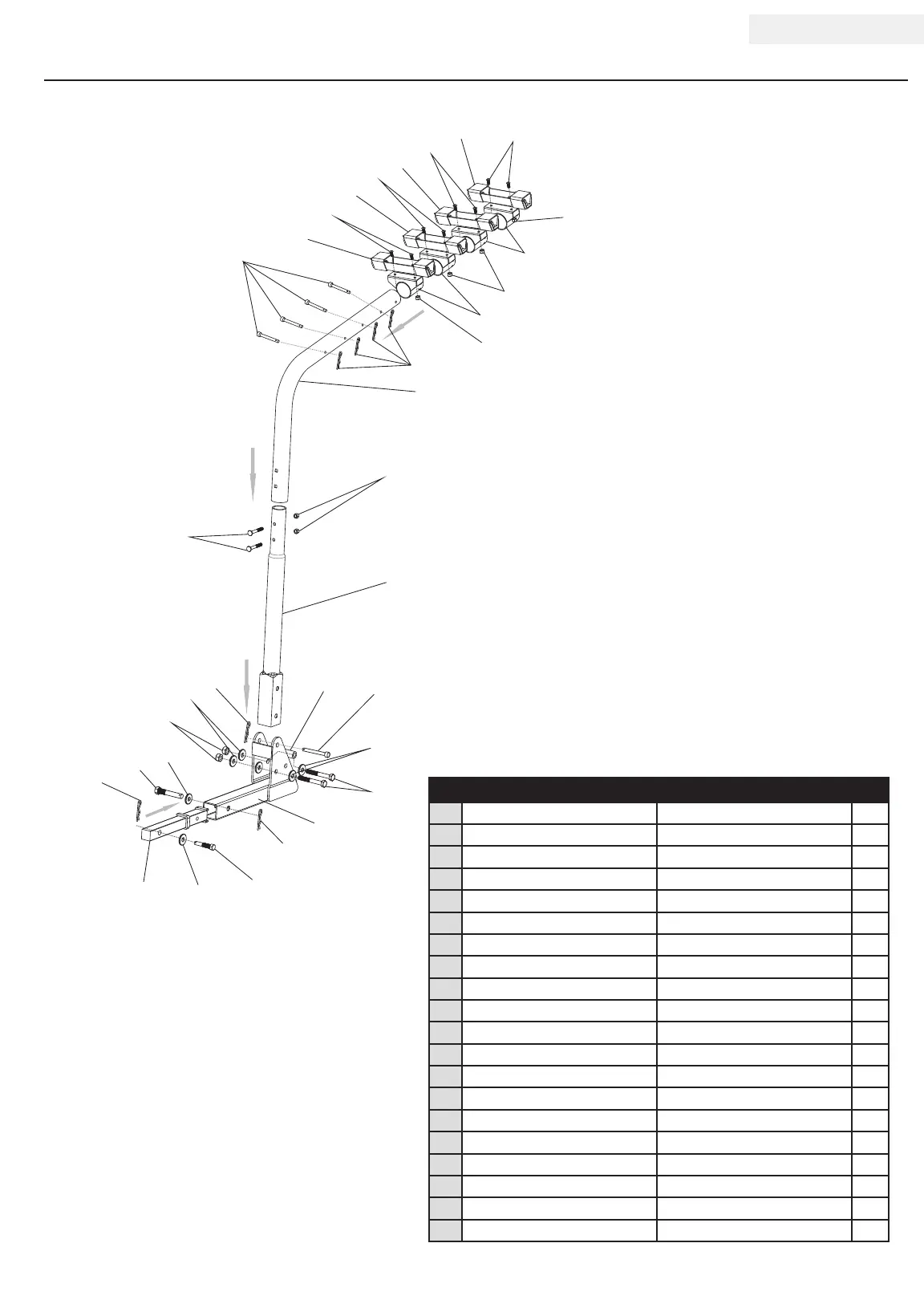

Parts Diagram & List
# Part Number Description Qty
1
50063-1 2 in. X 2 in. Square Hitch 1
2
GB5781 M12x90 Bolt M12X90 2
3
GB97.1 12 Flat Washer M12 5
4
GB6186 M12 Lock Nut M12 2
5
50063-2 R-Pin 7
6
50063-3 Bolt M12X58 1
7
GB97.1 16 Flat Washer M16 1
8
50063-4 Bolt M16X91 1
9
50063-5 Black Rubber Pipe 1
10
50063-6 Support Pole 1
11
GB/T794 M8x60 Bolt M8X60 2
12
GB6186 M8 Lock Nut M8 2
13
50063-7 Horizontal Bar 1
14
50063-8 Straight Pin 8 mm 4
15
50063-9 Cradle Supporter 4
16
50063-10 Cradle Assembly 4
17
GB/T820 M6x12 Screw M6X12 8
18
GB6186 M6 Lock Nut M6 8
19
50063 -11 Adapter 2 in. - 1.25 in. 1
20
50063-12 Straight Pin 12 mm 1
