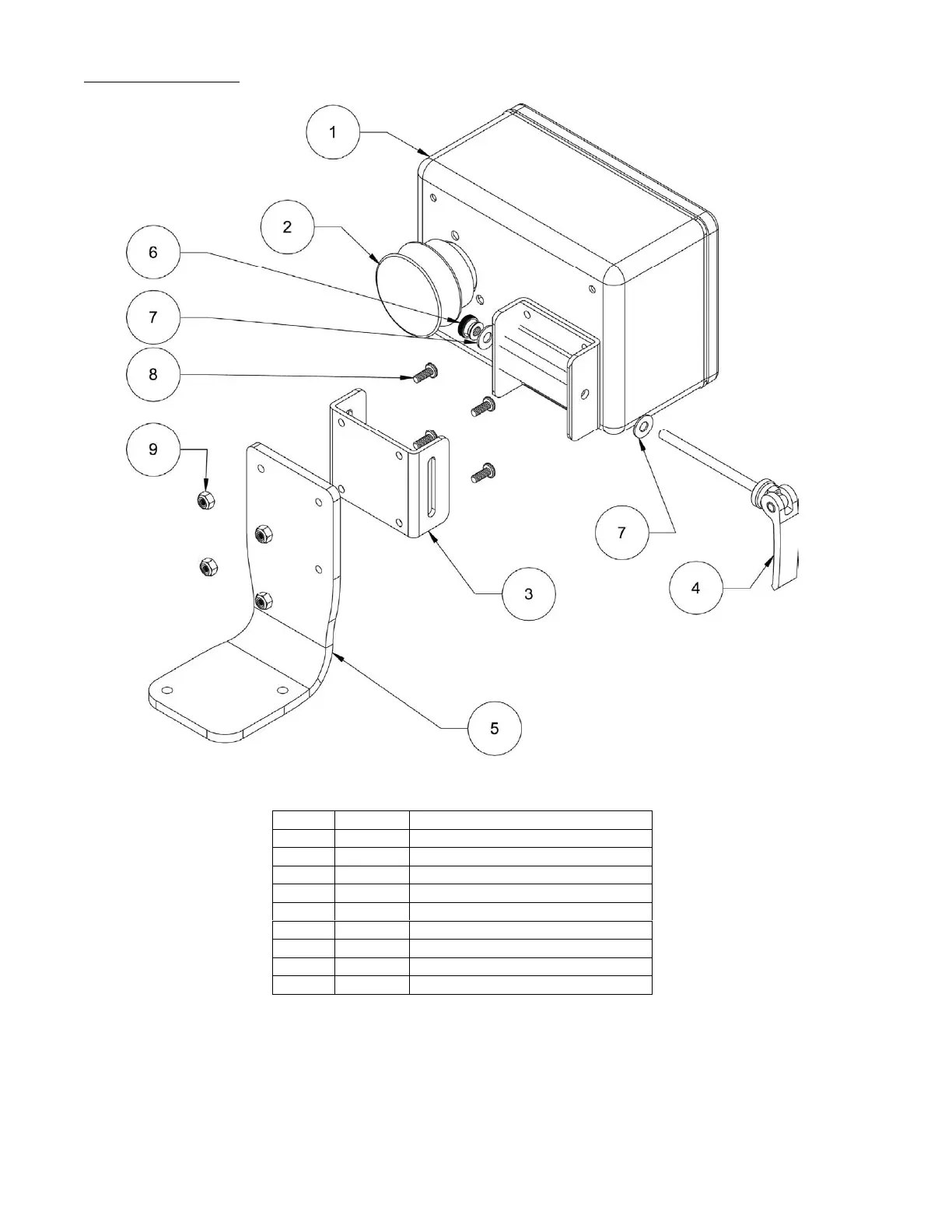

L-Bracket Parts Diagram
Item # Quantity Part Name
1 1 Motor Box
2 1 Drive Pulley
3 1 Motor Box Mounting Bracket, Slotted
4 1 Clamping Lever
5 1 L-Bracket
6 1 Knurled Nut ¼-20
7 2 Washer ¼"
8 4 10-24 x ⅝" Pan Head Machine Screw
9 4 10-24 nut
