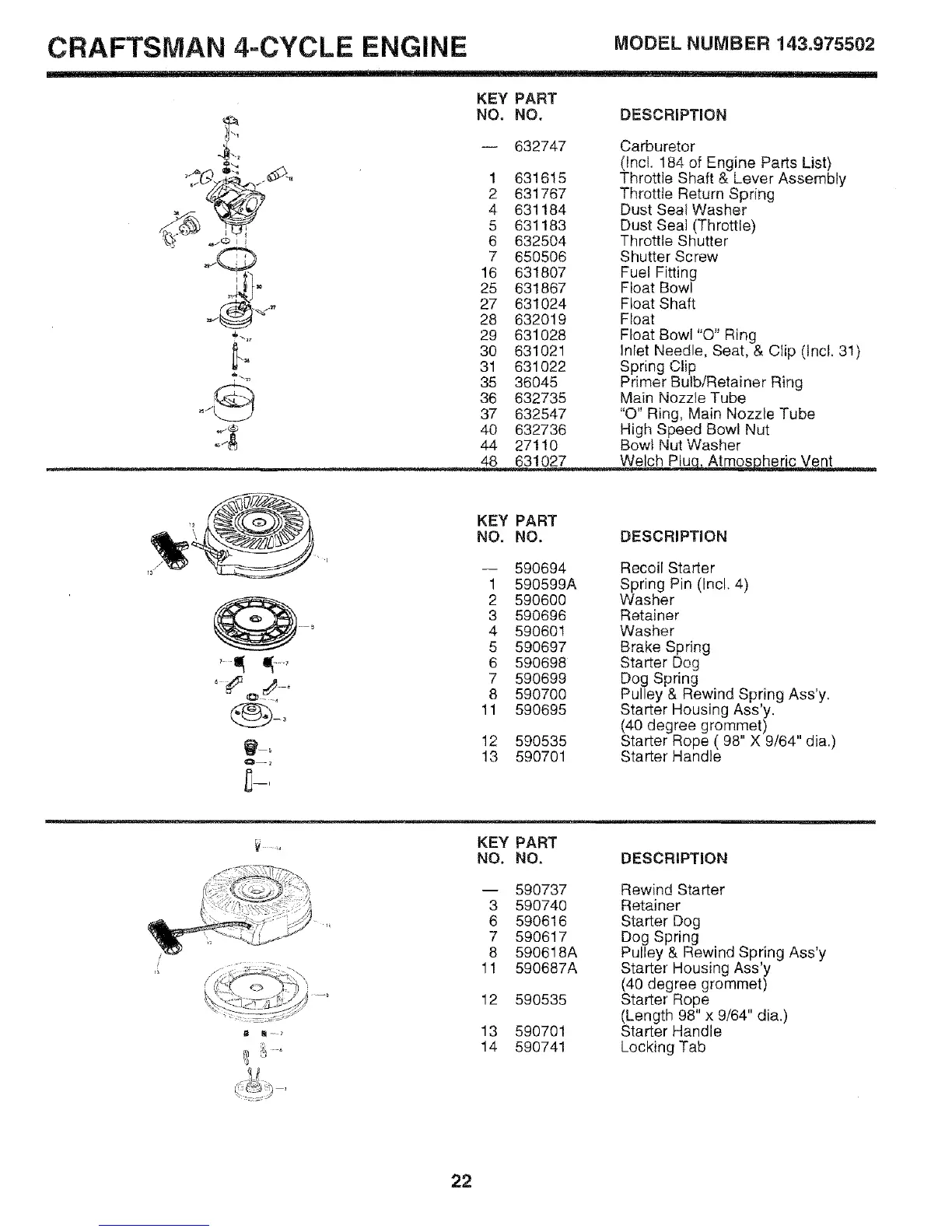

CRAFTSMAN 4-CYCLE ENGINE MODELNUMBER143.975502
KEY PART
NO, NO, DESCRiPTiON
q_ -- 632747 Carburetor
" (Incl. 184 of Engine Parts List)
"_>_-4 _._5_3_,,_ 1 631615 Throttle Shaft & Lever Assembly
2 631767 Throttle Return Spring
4 631184 Dust Seal Washer
_7._Z__ 5 631183 DustSeal (Throttle)
_ ._.o 6 632504 Throttle Shutter
O 7 650506 Shutter Screw
"" 16 631807 Fuel Fitting
_j 25 631867 Float Bowl
-_/ 27 631024 Float Shaft
_-_ 28 632019 Float
÷.... 29 631028 Float Bowl"Q" Ring
30 631021 Inret Needle, Seat, & Clip (Incl. 31)
31 631022 Spring Clip
'_ 35 36045 Primer Bulb/Retainer Ring
36 632735 Main Nozzle Tube
_! 37 632547 "0" Ring, Main Nozzle Tube
,_'_..8 40 632736 High Speed Bowl Nut
44 27110 Bowl Nut Washer
48 631027 Welch Plu Atmos hericVe t
KEY PART
NO. NO. DESCRIPTION
-- 590694 Recoil Starter
1 590599A Spring Pin (Inc!. 4)
2 590600 Washer
3 590696 Retainer
- ° 4 590601 Washer
5 590697 Brake Spring
'-_ _ ..... 6 590698 Starter Dog
7 590699 Dog Spring
E
_" _'_-' 8 590700 Pulley & Rewind Spring Ass'y.
(___ 11 590695 Starter Housing Ass'y.
(40 degree grommet)
12 590535 Starter Rope ( 98" X 9/64" dia.)
_-,
___ 13 590701 Starter Handle
,, KEY PART
NO. NO. DESCRIPTION
-- 590737 Rewind Starter
3 590740 Retainer
6 590616 Starter Dog
7 590617 Dog Spring
8 590618A Pulley & Rewind Spring Ass'y
11 590687A Starter Housing Ass'y
(40 degree grommet)
12 590535 Starter' Rope
(Length 98" x 9/64" dia.)
13 590701 Starter Handle
14 590741 Locking Tab
