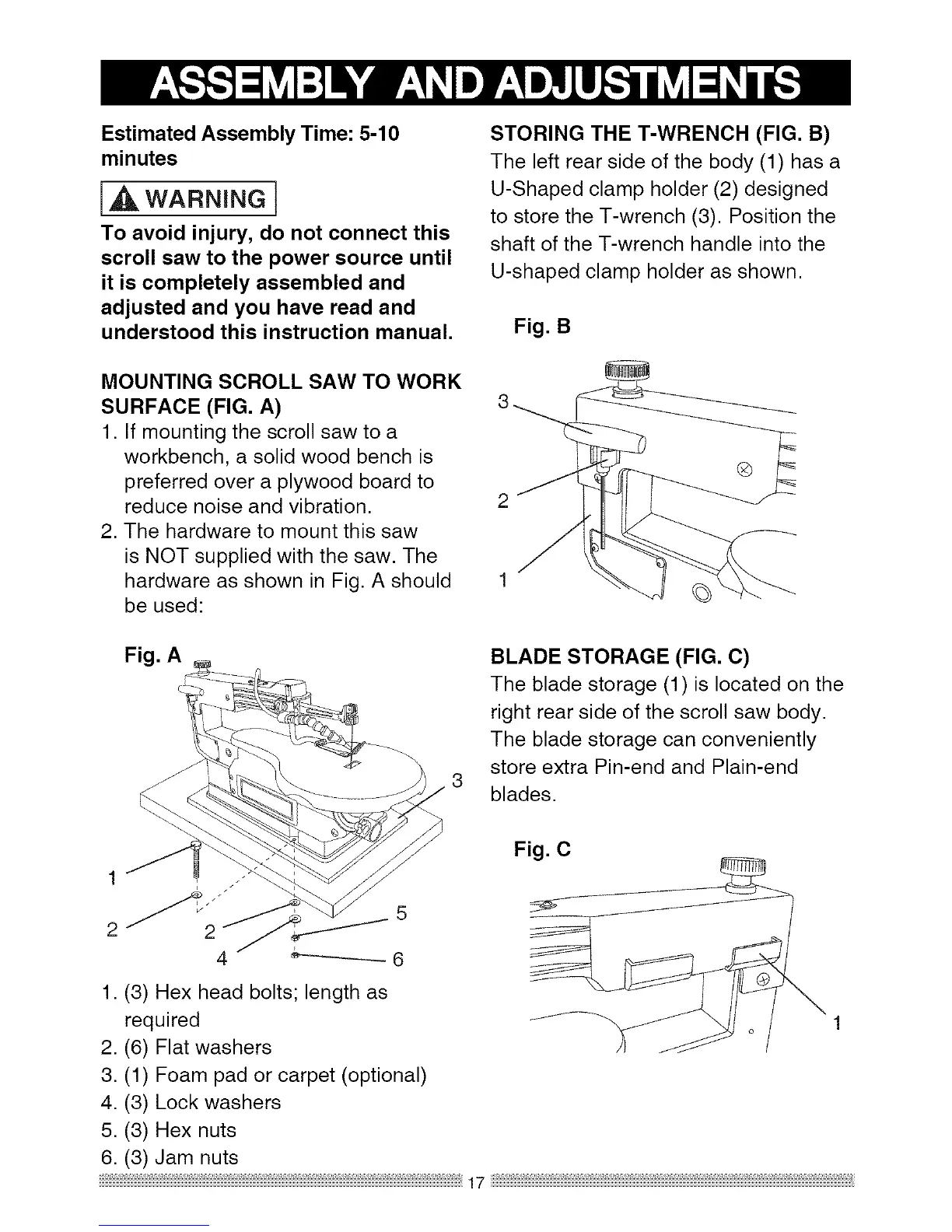

Estimated Assembly Time: 5-10
minutes
WARNING J
To avoid injury, do not connect this
scroll saw to the power source until
it is completely assembled and
adjusted and you have read and
understood this instruction manual.
MOUNTING SCROLL SAW TO WORK
SURFACE (FIG. A)
1. If mounting the scroll saw to a
workbench, a solid wood bench is
preferred over a plywood board to
reduce noise and vibration.
2. The hardware to mount this saw
is NOT supplied with the saw. The
hardware as shown in Fig. A should
be used:
Fig. A
STORING THE T-WRENCH (FIG. B)
The left rear side of the body (1) has a
U-Shaped clamp holder (2) designed
to store the T-wrench (3). Position the
shaft of the T-wrench handle into the
U-shaped clamp holder as shown.
Fig. B
2
BLADE STORAGE (FIG. C)
The blade storage (1) is located on the
right rear side of the scroll saw body.
The blade storage can conveniently
store extra Pin-end and Plain-end
blades.
Fig. C
1
5
4 _----_ -- 6
1. (3) Hex head bolts; length as
required 1
2. (6) Flat washers
3. (1) Foam pad or carpet (optional)
4. (3) Lock washers
5. (3) Hex nuts
6. (3) Jam nuts
17
To Next Page
