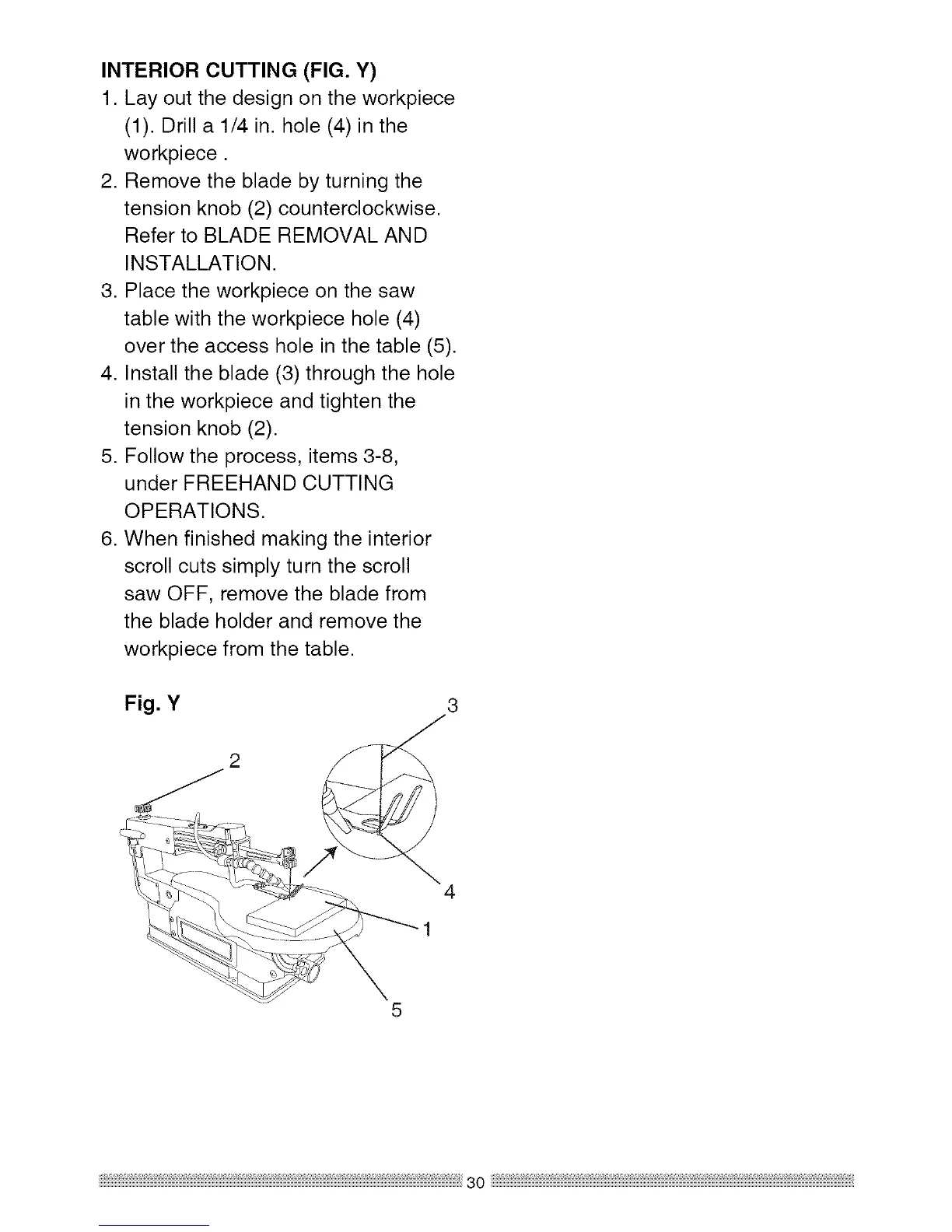

INTERIOR CUTTING (FIG. Y)
1. Lay out the design on the workpiece
(1). Drill a 1/4 in. hole (4) in the
workpiece.
2. Remove the blade by turning the
tension knob (2) counterclockwise.
Refer to BLADE REMOVAL AND
INSTALLATION.
3. Place the workpiece on the saw
table with the workpiece hole (4)
over the access hole in the table (5).
4. Install the blade (3) through the hole
in the workpiece and tighten the
tension knob (2).
5. Follow the process, items 3-8,
under FREEHAND CUTTING
OPERATIONS.
6. When finished making the interior
scroll cuts simply turn the scroll
saw OFF, remove the blade from
the blade holder and remove the
workpiece from the table.
Fig. Y
3
4
