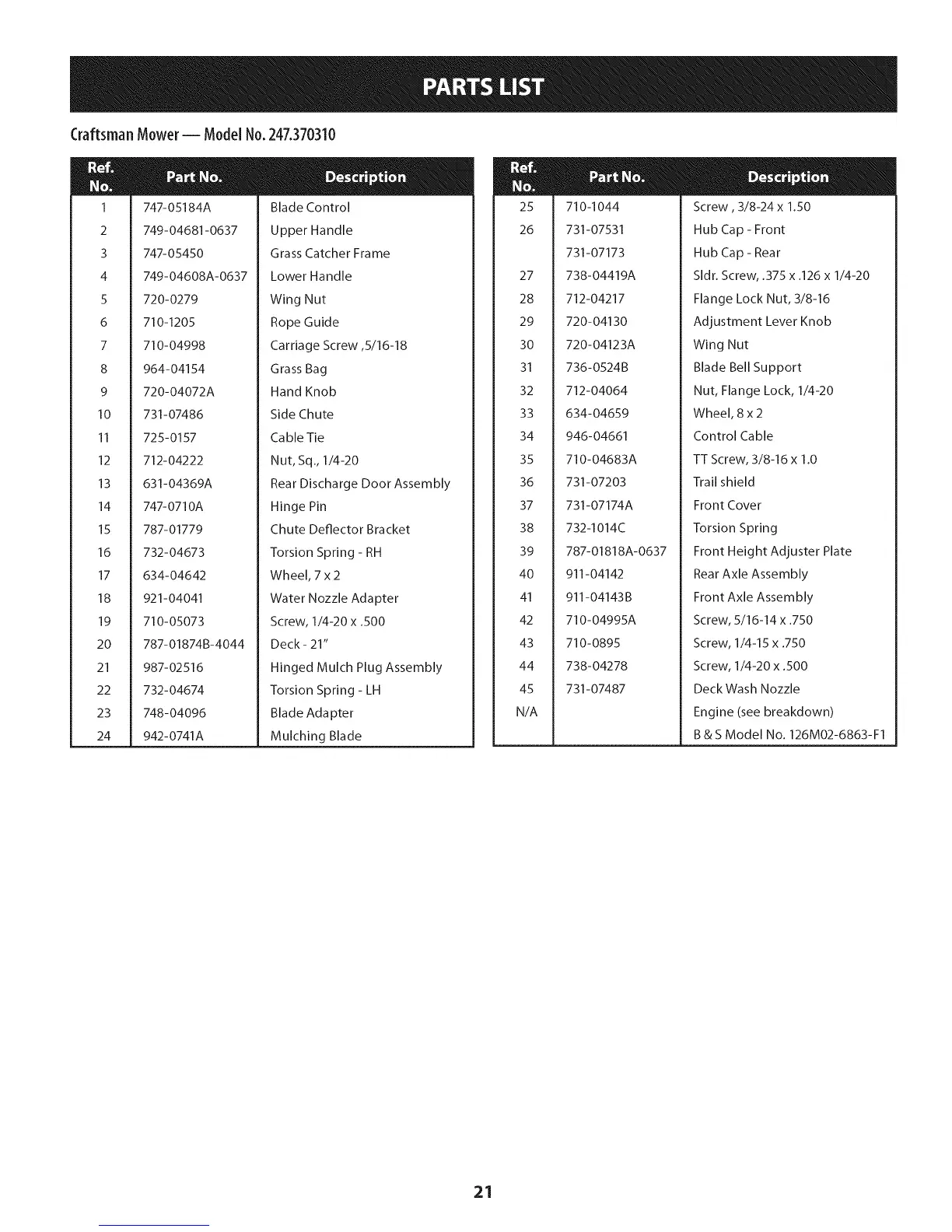

Craftsman 247.370310 - Page 21

(:raftsmanMower-- ModelNo.247.370310
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
747-05184A
749-04681-0637
747-05450
749-04608A-0637
720-0279
710-1205
710-04998
964-04154
720-04072A
731-07486
725-0157
712-04222
631-04369A
747-0710A
787-01779
732-04673
634-04642
921-04041
710-05073
787-01874B-4044
987-02516
732-04674
748-04096
942-0741A
Blade Control
Upper Handle
Grass Catcher Frame
Lower Handle
Wing Nut
Rope Guide
Carriage Screw ,5/16-18
Grass Bag
Hand Knob
Side Chute
Ca ble Tie
Nut, Sq., 1/4-20
Rear Discharge Door Assembly
Hinge Pin
Chute Deflector Bracket
Torsion Spring - RH
Wheel, 7 x 2
Water Nozzle Adapter
Screw, 1/4-20 x .500
Deck- 21"
Hinged Mulch Plug Assembly
Torsion Spring - LH
Blade Adapter
Mulching Blade
m
m
u
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
N/A
710-1044
731-07531
731-07173
738-04419A
712-04217
720-04130
720-04123A
736-0524B
712-04064
634-04659
946-04661
710-04683A
731-07203
731-07174A
732-1014C
787-01818A-0637
911-04142
911-04143B
710-04995A
710-0895
738-04278
731-07487
Screw, 3/8-24 x 1.50
Hub Cap - Front
Hub Cap - Rear
Sldr. Screw, .375 x .126 x 1/4-20
Flange Lock Nut, 3/8-16
Adjustment Lever Knob
Wing Nut
Blade Bell Support
Nut, Flange Lock, 1/4-20
Wheel, 8 x 2
Control Cable
TT Screw, 3/8-16 x 1.0
Trail shield
Front Cover
Torsion Spring
Front Height Adjuster Plate
Rear Axle Assembly
Front Axle Assembly
Screw, 5/16-14 x .750
Screw, 1/4-15 x .750
Screw, 1/4-20 x .500
Deck Wash Nozzle
Engine (see breakdown)
B & S Model No. 126M02-6863-F1
21
