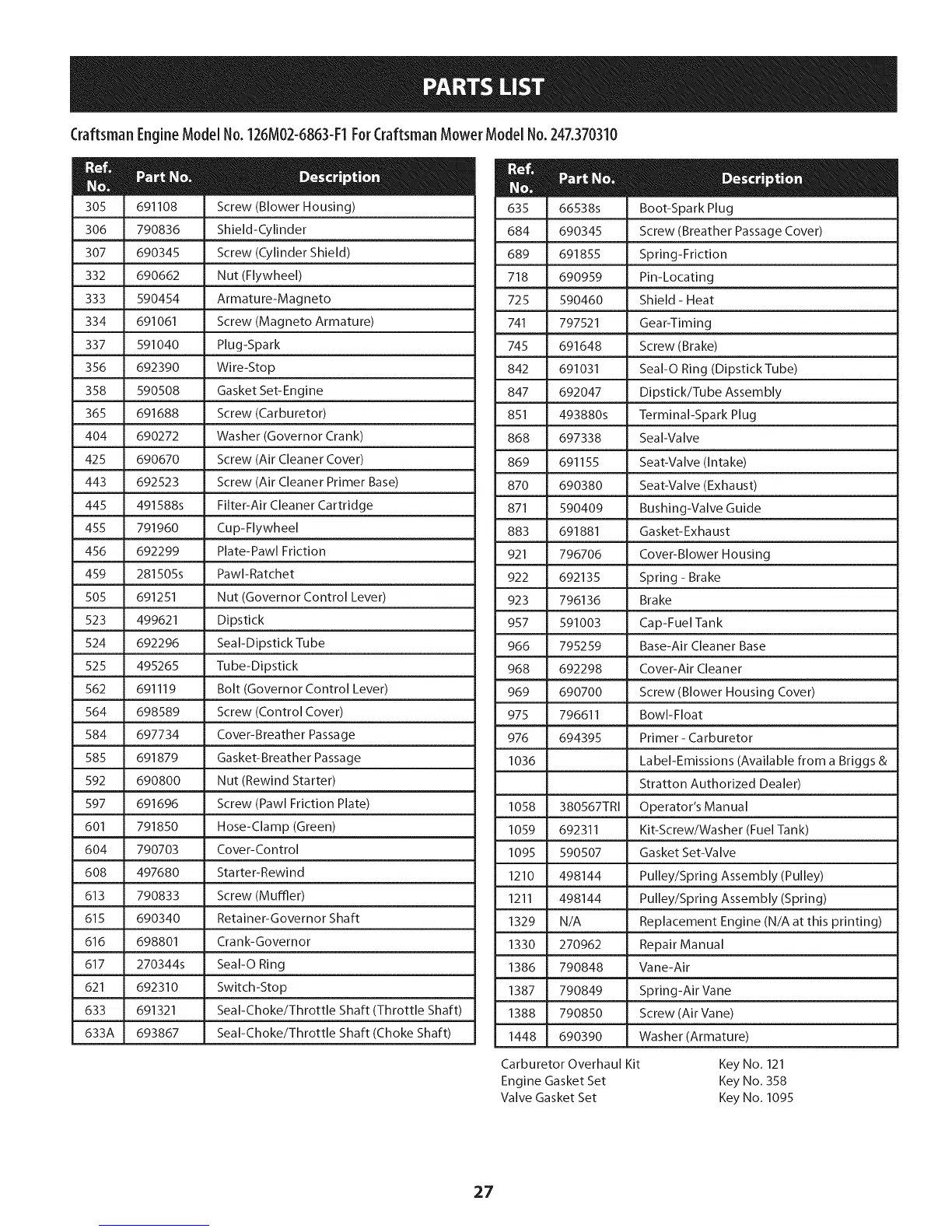

(:raftsman Engine Model No. 126MO2-6863-F1For (:raftsman Mower Model No.247.370310
691108 Screw (Blower Housing)
306 790836 Shield-Cylinder
307 690345 Screw (Cylinder Shield)
332 690662 Nut (Flywheel)
333 590454 Armature-Magneto
334 691061 Screw (Magneto Armature)
337 591040 Plug-Spark
356 692390 Wire-Stop
358 590508 Gasket Set-Engine
365 691688 Screw (Carburetor)
404 690272 Washer (Governor Crank)
425 690670 Screw (Air Cleaner Cover)
443 692523 Screw (Air Cleaner Primer Base)
445 491588s Filter-Air Cleaner Cartridge
455 791960 Cup-Flywheel
456 692299 Plate-Pawl Friction
459 281505s PawI-Ratchet
505 691251 Nut (Governor Control Lever)
523 499621 Dipstick
524 692296 Seal-Dipstick Tube
525 495265 Tube-Dipstick
562 691119 Bolt (Governor Control Lever)
564 698589 Screw (Control Cover)
584 697734 Cover-Breather Passage
585 691879 Gasket-Breather Passage
592 690800 Nut (Rewind Starter)
597 691696 Screw (Pawl Friction Plate)
601 791850 Hose-Clamp (Green)
604 790703 Cover-Control
608 497680 Starter-Rewind
613 790833 Screw (Muffler)
615 690340 Retainer-Governor Shaft
616 698801 Crank-Governor
617 270344s Seal-O Ring
621 692310 Switch-Stop
633 691321 Seal-Choke/Throttle Shaft (Throttle Shaft)
633A 693867 Seal-Choke/Throttle Shaft (Choke Shaft)
66538s Boot-Spark Plug
684 690345 Screw (Breather Passage Cover)
689 691855 Spring-Friction
718 690959 Pin-Locating
725 590460 Shield - Heat
741 797521 Gear-Timing
745 691648 Screw (Brake)
842 691031 Seal-O Ring (Dipstick Tube)
847 692047 Dipstick/Tube Assembly
851 493880s Terminal-Spark Plug
868 697338 Seal-Valve
869 691155 Seat-Valve (Intake)
870 690380 Seat-Valve (Exhaust)
871 590409 Bushing-Valve Guide
883 691881 Gasket-Exhaust
921 796706 Cover-Blower Housing
922 692135 Spring - Brake
923 796136 Brake
957 591003 Cap-Fuel Tank
966 795259 Base-Air Cleaner Base
968 692298 Cover-Air Cleaner
969 690700 Screw (Blower Housing Cover)
975 796611 Bowl-Float
976 694395 Primer - Carburetor
1036 Label-Emissions (Available from a Briggs &
Stratton Authorized Dealer)
1058 380567TRI Operator's Manual
1059 692311 Kit-Screw/Washer (Fuel Tank)
1095 590507 Gasket Set-Valve
1210 498144 Pulley/Spring Assembly (Pulley)
1211 498144 Pulley/Spring Assembly (Spring)
1329 N/A Replacement Engine (N/A at this printing)
1330 270962 Repair Manual
1386 790848 Vane-Air
1387 790849 Spring-Air Vane
1388 790850 Screw (Air Vane)
1448 690390 Washer (Armature)
Carburetor Overhaul Kit Key No. 121
Engine Gasket Set Key No. 358
Valve Gasket Set Key No. 1095
27
