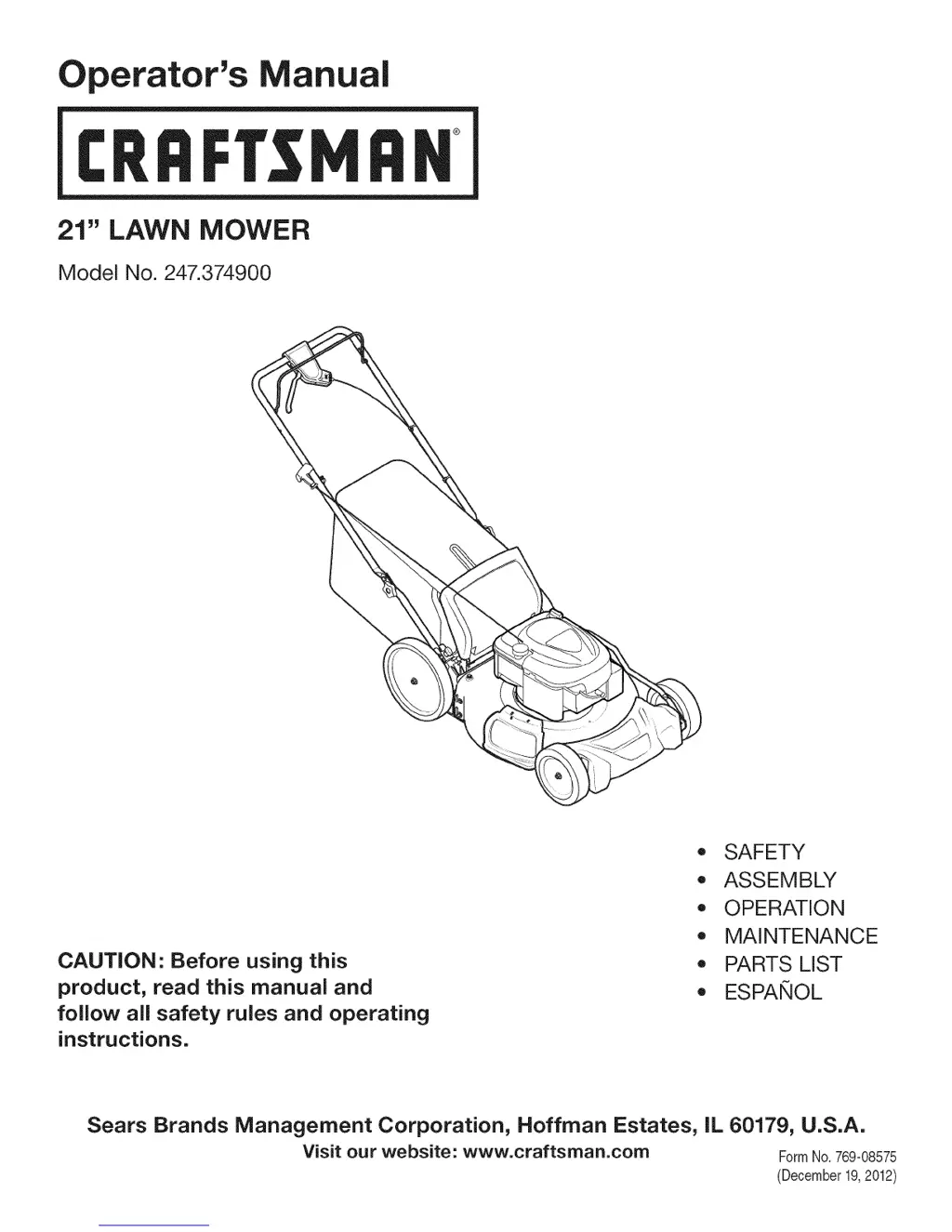

Craftsman 247.374900 - User Manual

Questions and Answers

A
Alice LongAug 15, 2025
Why won't my Craftsman 247.374900 engine start?
- B
  Belinda PerkinsAug 15, 2025
  There are several possible reasons why your Craftsman Lawn Mower engine might fail to start: * The blade control may be disengaged. Ensure it is engaged. * The spark plug boot may be disconnected. Connect the wire to the spark plug boot. * The fuel tank may be empty or contain stale fuel. Refill the tank with clean, fresh gasoline. * The engine may not be primed (if equipped with a primer). Prime the engine as instructed in the operation section. * The spark plug may be faulty. Clean, adjust the gap, or replace it. * The engine may be flooded. Wait a few minutes before attempting to restart it. * The fuel line may be blocked. Contact your Sears Parts & Repair Center to have the fuel line cleaned.
J
johnthompsonAug 18, 2025
Why does my Craftsman 247.374900 leave an uneven cut?
- C
  Courtney RobinsonAug 18, 2025
  If your Craftsman Lawn Mower provides an uneven cut, the blade may be dull. Sharpen or replace the blade.
J
James RiveraAug 21, 2025
Why is my Craftsman 247.374900 engine running rough?
- J
  Jesus EllisAug 21, 2025
  If your Craftsman Lawn Mower engine runs erratically, it could be due to: * A loose spark plug boot. Connect and tighten the spark plug boot. * Stale fuel. Replace with clean, fresh gasoline. * A plugged vent in the gas cap. Clear the vent. * Water or dirt in the fuel system. Run the engine until it stops from lack of fuel, then refill with fresh fuel. * A dirty air cleaner. Refer to the Air Cleaner section in Engine Maintenance. * A blocked fuel line. Contact your Sears Parts & Repair Center to have the fuel line cleaned.
K
kurt28Aug 25, 2025
Why is my Craftsman 247.374900 Lawn Mower not self-propelling?
- J
  Joshua HolmesAug 26, 2025
  If your Craftsman Lawn Mower will not self-propel, consider the following: 1. The belt may not be installed properly. Check the belt for proper pulley installation and movement. 2. Debris may be clogging the drive operation. Stop the engine, disconnect the spark plug boot, and clean out any debris. 3. The belt may be damaged or worn. Inspect and replace the belt. 4. The drive control may be out of adjustment. Adjust the drive control, referring to the Assembly section.
D
Daniel SchmidtAug 28, 2025
Why is my Craftsman Lawn Mower overheating?
- K
  kvillarrealAug 28, 2025
  If your Craftsman Lawn Mower engine is overheating, check the following: * Low engine oil level. Fill the crankcase with the proper oil. * Restricted airflow. Clean the area around and on top of the engine.
N
ntaylorAug 31, 2025
Why won't my Craftsman 247.374900 mulch grass?
- M
  Mrs. Jacqueline BrownAug 31, 2025
  If your Craftsman Lawn Mower won't mulch grass, it might be because: * The grass is wet. Avoid mowing when the grass is wet; wait until it dries. * The grass is excessively high. Mow once at a high cutting height, then mow again at the desired height or make a narrower cutting path. * The blade is dull. Sharpen or replace the blade.
G
Gregory MirandaSep 4, 2025
Why does my Craftsman 247.374900 Lawn Mower idle rough?
- C
  Christopher SmithSep 4, 2025
  If your Craftsman Lawn Mower idles poorly, it could be due to: * A spark plug that is fouled, faulty, or has a gap that is too wide. Reset the gap or replace the spark plug. * A dirty air cleaner. Refer to the Air Cleaner section in Engine Maintenance.
S
Shawn StokesSep 7, 2025
Why is my Craftsman 247.374900 vibrating so much?
- L
  lovemonicaSep 7, 2025
  If your Craftsman Lawn Mower has excessive vibration, check if: * The cutting blade is loose or unbalanced. Tighten the blade and adapter, and balance the blade. * The cutting blade is bent. Replace the blade.
E
Eric KelleySep 12, 2025
What to do if my Craftsman 247.374900 hesitates?
- M
  Michael BensonSep 12, 2025
  If your Craftsman Lawn Mower occasionally skips or hesitates, the spark plug gap may be too close. Adjust the gap, referring to the Spark Plug section in Engine Maintenance.

Summary

Warranty Statement

CRAFTSMAN TWO YEAR FULL WARRANTY

Details of the two-year limited warranty against defects in material or workmanship.

Safety Instructions

General Operation Guidelines

Slope Operation Precautions

Precautions and procedures for mowing on inclines.

Child Safety

Safety advice regarding children around the mower.

Service Safety

Engine Modification Warning

Warning against altering engine governor settings.

Assembly

Attaching The Handle

Attaching the Grass Catcher

Attaching Side Discharge Cover

Adjustments

Cutting Height

Drive Control

Operation

Blade Control Operation

Description of the blade control mechanism and safety.

Drive Control Operation

Explanation of the mower's self-propel drive control.

Cutting Height Adjustment

Grass Catcher Usage

Side Discharge Cover Installation

Recoil Starter Operation

Gas and Oil Fill-Up Instructions

Instructions for filling the engine with oil and gasoline.

Gasoline Precautions

Starting the Engine

Step-by-step guide to starting the mower engine.

Stopping the Engine

How to safely stop the mower engine.

Using Your Lawn Mower Safely

Mulching Grass

Collecting Grass Clippings

Service and Maintenance

MAINTENANCE SCHEDULE

A schedule of recommended maintenance tasks and intervals.

Engine Maintenance Procedures

Specific maintenance tasks for the engine.

Checking Engine Oil

How to check and maintain the engine oil level.

Changing Engine Oil

Step-by-step guide to changing the engine oil.

Cleaning the Engine

Lubrication Points

Deck Wash Instructions

Blade Care and Replacement

Procedures for inspecting, sharpening, or replacing the blade.

Off-Season Storage

Engine Preparation for Storage

Mower Preparation for Storage

Troubleshooting

Common Engine and Mower Issues

Solutions for common problems like starting, running, and vibration.

Troubleshooting Mulching Issues

Troubleshooting steps for mulching performance issues.

Troubleshooting Uneven Cut

Causes and solutions for an uneven lawn cut.

Troubleshooting Self-Propel Issues

Troubleshooting guide for self-propel mechanism failures.

Craftsman 247.374900 Specifications

General

Engine Type	4-cycle
Engine Brand	Briggs & Stratton
Engine Displacement	190cc
Cutting Width	21 inches
Cutting Height Positions	6
Drive System	Self-propelled
Oil Capacity	20 oz
Mulching Capability	Yes
Side Discharge	Yes
Rear Bagging	Yes
Deck Material	Steel
Self-Propelled	Yes
Starter Type	Recoil
Cutting Height Adjustment	Dual-lever
Wheel Size	8 inches front, 11 inches rear
