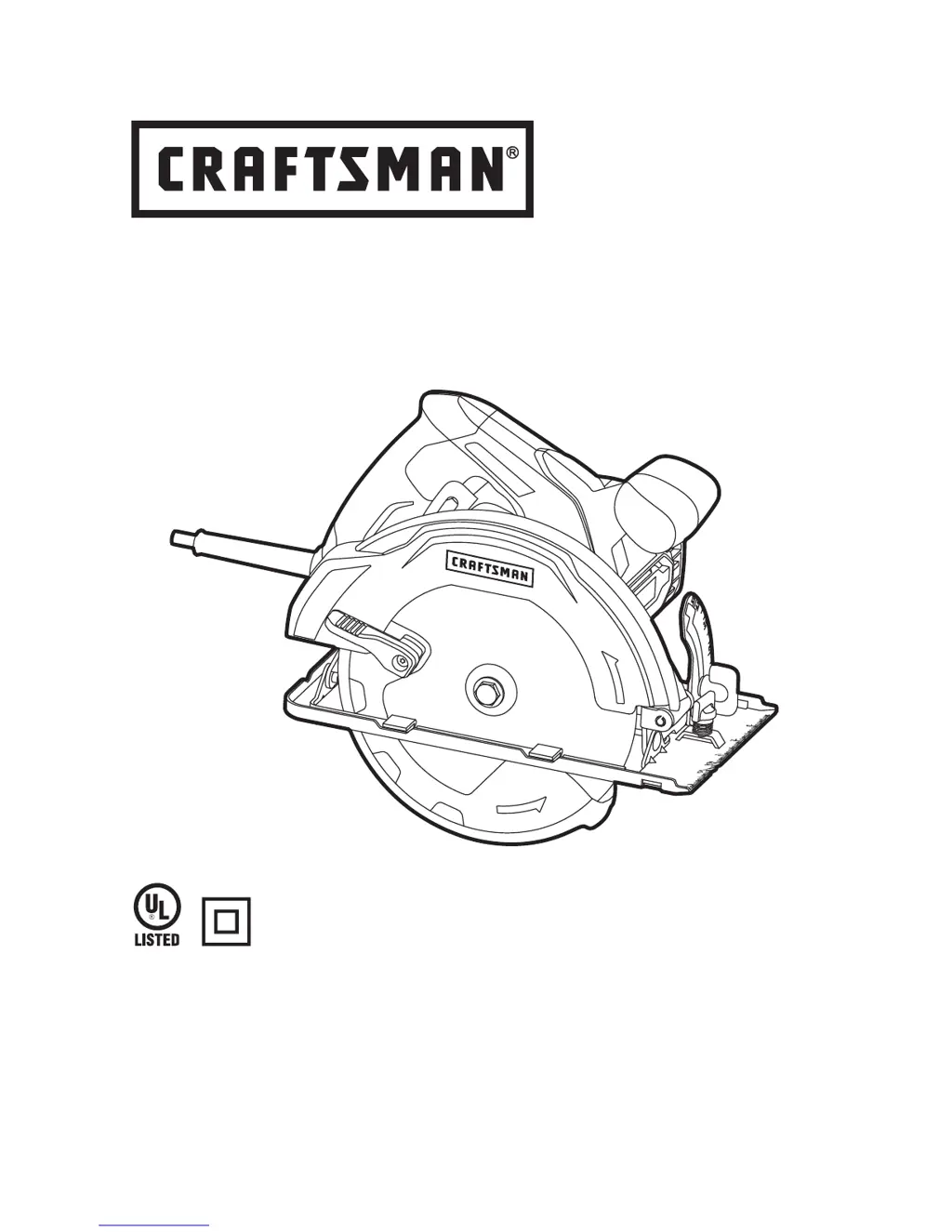

Craftsman 320.46123 User Manual

Operator’s Manual
12 Amp 7 1/4 in. CIRCULAR SAW
Model No. 320.46123
Sears Brands Management Corporation, Hoffman Estates,
IL 60179 U.S.A.
www.craftsman.com
• WARRANTY
• SAFETY
• DESCRIPTION
• ASSEMBLY
• OPERATION
• MAINTENANCE
• ESPAÑOL
ѥWARNING: To reduce the risk of injury,
the user must read and understand the
Operator’s Manual before using this product.
Volts
amperes
hertz
watts
kilowatts
hours
minutes
seconds
no-load speed
Revolutions or reciprocations per minute
Direct current
Alternating current
Class II tool
IP symbol
Read The Operator’s Manual
UL
kW
h
s

Craftsman 320.46123 Specifications

General

Type	Circular Saw
Spindle Lock	Yes
Dust Port	Yes
Blade Diameter	7-1/4 inches
Depth of Cut at 90 degrees	2-7/16 inches

Summary

Safety Symbols

Symbol Signal Meaning

Explains the meaning of DANGER, WARNING, and CAUTION symbols.

Safety Alert Symbols

Defines DANGER, WARNING, and CAUTION signals and their severity.

Damage Prevention Messages

Informs about equipment or property damage if instructions are not followed.

Eye Protection Warning

Emphasizes wearing safety goggles or glasses with side shields.

Safety Instructions

General Power Tool Safety Warnings

Read all warnings and instructions; failure to do so may result in injury.

Work Area Safety

Keep area clean, lit, and free of explosive atmospheres. Keep bystanders away.

Electrical Safety

Use correct plugs, avoid grounded surfaces, do not expose to rain or wet conditions.

Personal Safety and Tool Use

Personal Safety

Stay alert, use PPE, prevent unintentional starting, dress properly.

Power Tool Use and Care

Use correct tool, maintain tools, disconnect power before adjustments.

Specific Safety Rules for Circular Saw

General Saw Safety Instructions

Keep hands away, do not reach underneath, adjust depth, secure workpiece.

Blade and Washer Safety

Use correct blade size, never use damaged washers or bolt.

Kickback Prevention

Kickback Causes and Warnings

Explains kickback and lists practices to avoid it.

Lower Guard Safety

Lower Guard Safety

Check guard operation, do not retract manually except for special cuts.

Description

Know Your Circular Saw

Identifies key parts of the circular saw using a diagram.

Product Specifications

Lists technical details like amps, speed, blade size, and angles.

Saw Features

Ergonomic Design

Describes the saw's design for comfortable two-handed control.

Bevel Adjustment

Explains how to set bevel cuts from 0° to 52°.

Lock-off Button

Reduces the possibility of accidental starting.

Depth-of-Cut Adjustment

Details how to adjust the cutting depth up to 2 1/2 inches.

Assembly

Unpacking

Instructions for carefully removing and inspecting the tool and accessories.

Packing List

Lists the items included in the package: saw, wrench, blade, manual.

Install the Blade

Blade Installation Steps

Step-by-step guide to safely install the saw blade.

Operation

Saw Blades

Discusses blade maintenance, types, and maximum capacity.

Blade Guard System

Explains the importance and function of the lower blade guard.

Kickback and Operation Safety

Kickback Causes and Warnings

Explains kickback and lists dangerous practices to avoid.

Kickback Reduction Techniques

Reducing Kickback Risk

Provides specific steps to minimize the chance of kickback during operation.

Saw Controls and Adjustments

Lock-Off and Trigger Switch

Explains how to use the lock-off button and trigger switch to operate the saw.

Adjusting Blade Depth

Details how to adjust the cutting depth using the scale.

Bevel Cutting Procedures

Bevel Adjustments

Details how to adjust the saw's bevel angle from 0° to 52°.

General Saw Operation

Operating the Saw

General guidance on operating the saw safely and effectively.

Operational Aids

Integrated Crosscut Ruler

Describes the ruler marked on the base for measuring repetitive cuts.

Cutting Techniques

Cutting Marks

Explains the 0° and 45° cutting notches on the saw base.

Rip and Cross Cuts

Discusses using the combination blade for different cut types and using guides.

Cutting with a Straight Edge

Provides steps for making straight cuts using a guide.

Edge Guide Cutting

Cutting with an Edge Guide

Instructions for using an edge guide for accurate cuts.

Bevel Cutting Operation

Making a Bevel Cut

Guides the user on how to perform bevel cuts at various angles.

Maintenance

General Maintenance

Advises on cleaning, avoiding solvents, and using correct parts.

Troubleshooting

Saw Not Working

Addresses issues where the circular saw does not power on.

Blade Not Following Straight Line

Solutions for when the blade cuts unevenly or deviates.

Blade Binding or Smoking

Troubleshooting steps for blade binding or friction issues.

Part List Diagram

Exploded View of Parts

Visual representation of all parts with numbers for identification.

Part Identification

Parts Identification (1-28)

Lists part numbers and names for components 1 through 28.

Part Identification Continued

Parts Identification (29-57, 201-205, 301)

Lists part numbers and names for remaining components.
