Craftsman 33748 - Mulch Plug Installation

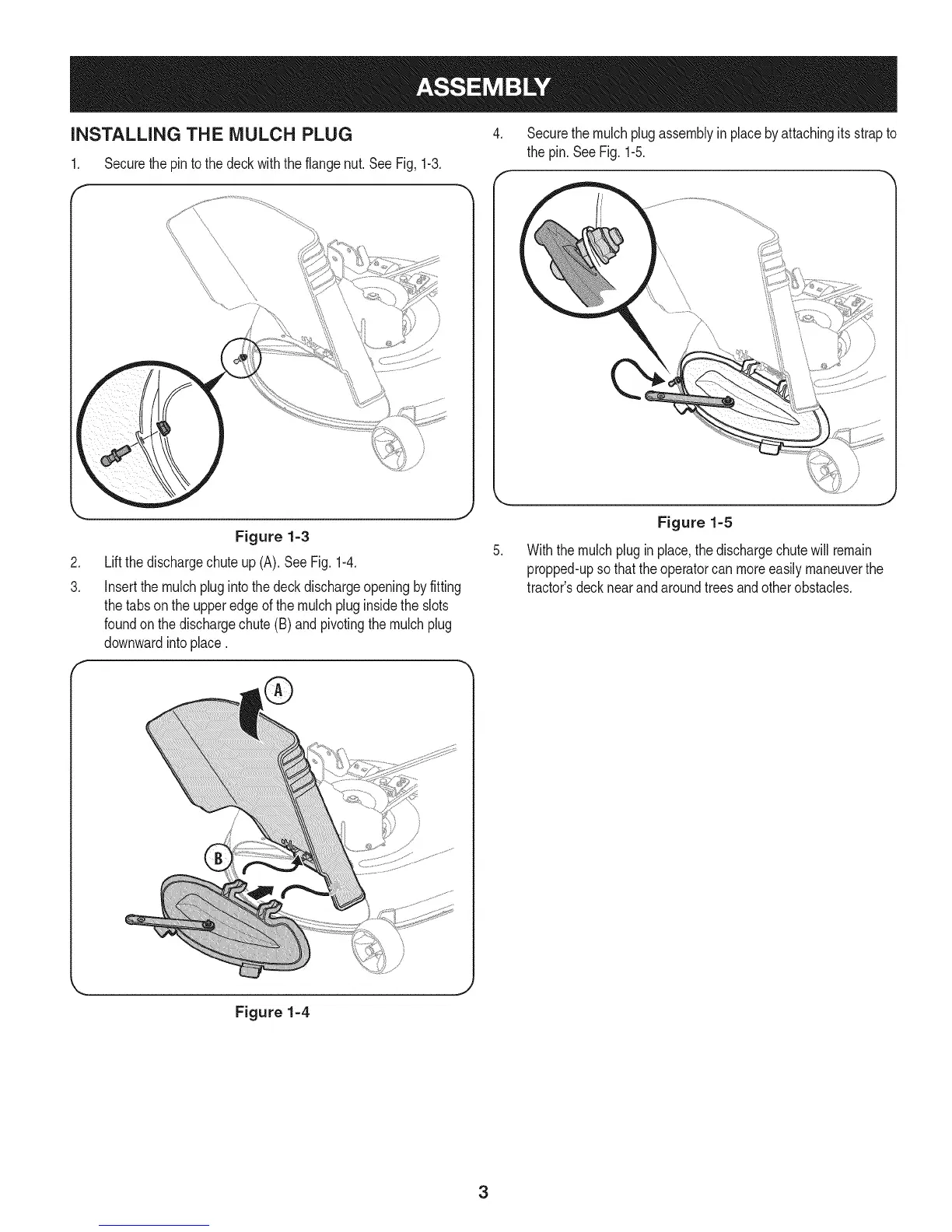

iNSTALLiNG THE MULCH PLUG
1. Securethepintothe deckwiththe flangenut.SeeFig,1-3.
.
3.
Figure 1=3
Liftthedischargechuteup (A).SeeFig. 1-4.
Insertthemulchplugintothedeckdischargeopeningbyfitting
thetabson theupperedgeof the mulchpluginsidetheslots
foundonthedischargechute(B)and pivotingthemulchplug
downwardintoplace.
Securethemulchplugassemblyin placebyattachingitsstrapto
thepin.SeeFig.1-5.
. J
Figure 1=5
Withthemulchpluginplace,the dischargechutewillremain
propped-upsothattheoperatorcanmoreeasilymaneuverthe
tractor'sdecknearandaroundtreesandotherobstacles.
Figure 1=4
3
