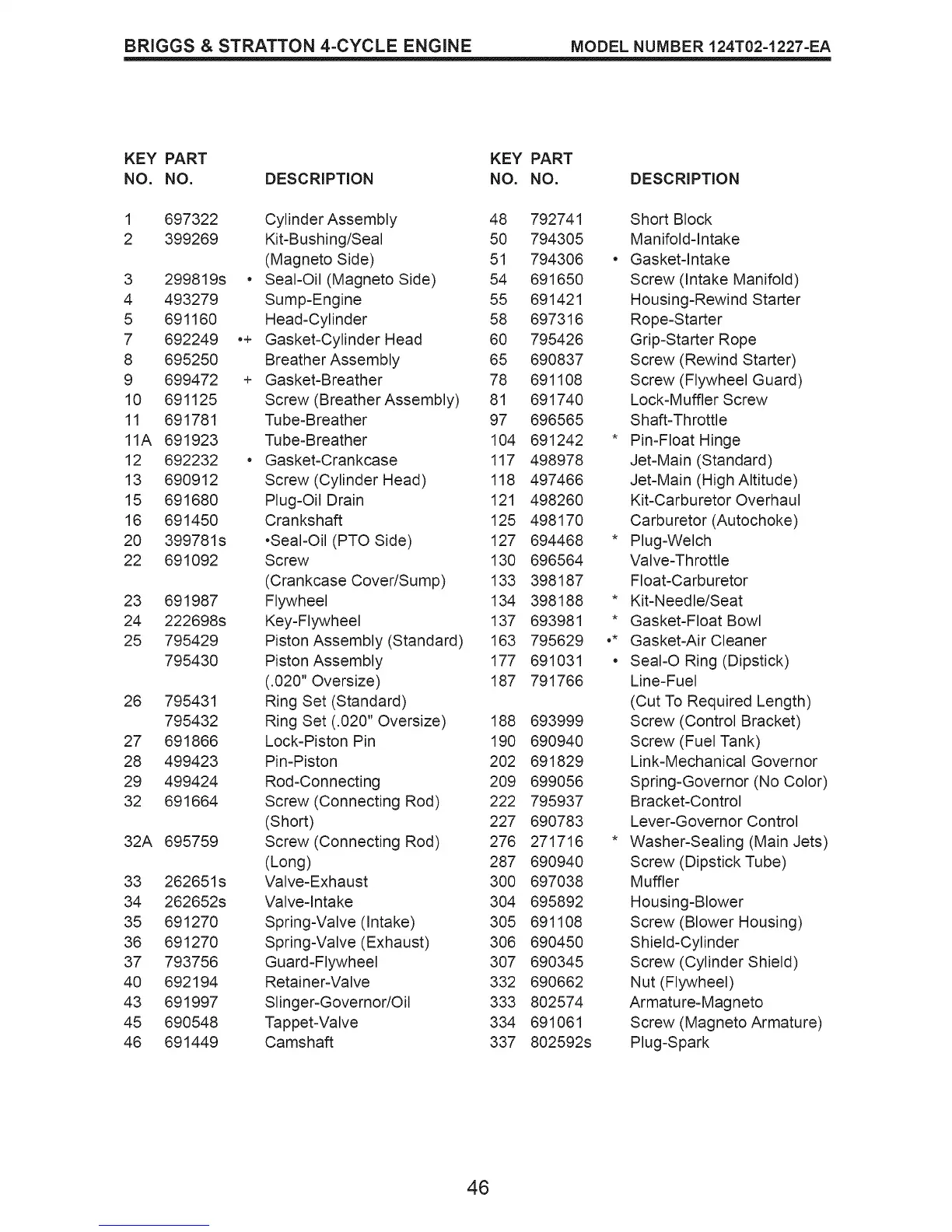

Craftsman 37623 - Page 46

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 124T02-1227=EA
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 697322 Cylinder Assembly 48 792741 Short Block
2 399269 Kit-Bushing/Seal 50 794305 Manifold-Intake
(Magneto Side) 51 794306 * Gasket-Intake
3 299819s * Seal-Oil (Magneto Side) 54 691650 Screw (Intake Manifold)
4 493279 Sump-Engine 55 691421 Housing-Rewind Starter
5 691160 Head-Cylinder 58 697316 Rope-Starter
7 692249 *+ Gasket-Cylinder Head 60 795426 Grip-Starter Rope
8 695250 Breather Assembly 65 690837 Screw (Rewind Starter)
9 699472 + Gasket-Breather 78 691108 Screw (Flywheel Guard)
10 691125 Screw (Breather Assembly) 81 691740 Lock-Muffler Screw
11 691781 Tube-B reather 97 696565 Shaft-Th rottle
11A 691923 Tube-Breather 104 691242 * PimFIoatHinge
12 692232 * Gasket-Crankcase 117 498978 Jet-Main (Standard)
13 690912 Screw (Cylinder Head) 118 497466 Jet-Main (High Altitude)
15 691680 Plug-Oil Drain 121 498260 Kit-Carburetor Overhaul
16 691450 Crankshaft 125 498170 Carburetor (Autochoke)
20 399781s *Seal-Oil (PTO Side) 127 694468 * Plug-Welch
22 691092 Screw 130 696564 Valve-Throttle
(Crankcase Cover/Sump) 133 398187 Float-Carburetor
23 691987 Flywheel 134 398188 * Kit-Needle/Seat
24 222698s Key-Flywheel 137 693981 * Gasket-Float Bowl
25 795429 Piston Assembly (Standard) 163 795629 ** Gasket-Air Cleaner
795430 Piston Assembly 177 691031 * Seal=O Ring (Dipstick)
(.020" Oversize) 187 791766 Line-Fuel
26 795431 Ring Set (Standard) (Cut To Required Length)
795432 Ring Set (.020" Oversize) 188 693999 Screw (Control Bracket)
27 691866 Lock-Piston Pin 190 690940 Screw (Fuel Tank)
28 499423 Pin-Piston 202 691829 Link-Mechanical Governor
29 499424 Rod-Connecting 209 699056 Spring-Governor (No Color)
32 691664 Screw (Connecting Rod) 222 795937 Bracket-Control
(Short) 227 690783 Lever-Governor Control
32A 695759 Screw (Connecting Rod) 276 271716 * Washer-Sealing (Main Jets)
(Long) 287 690940 Screw (Dipstick Tube)
33 262651s Valve-Exhaust 300 697038 Muffler
34 262652s Valve-Intake 304 695892 Housing-Blower
35 691270 Spring-Valve (Intake) 305 691108 Screw (Blower Housing)
36 691270 Spring-Valve (Exhaust) 306 690450 Shield-Cylinder
37 793756 Guard-Flywheel 307 690345 Screw (Cylinder Shield)
40 692194 Retainer-Valve 332 690662 Nut (Flywheel)
43 691997 Slinger-Governor/Oil 333 802574 Armature-Magneto
45 690548 Tappet-Valve 334 691061 Screw (Magneto Armature)
46 691449 Camshaft 337 802592s Plug-Spark
46
