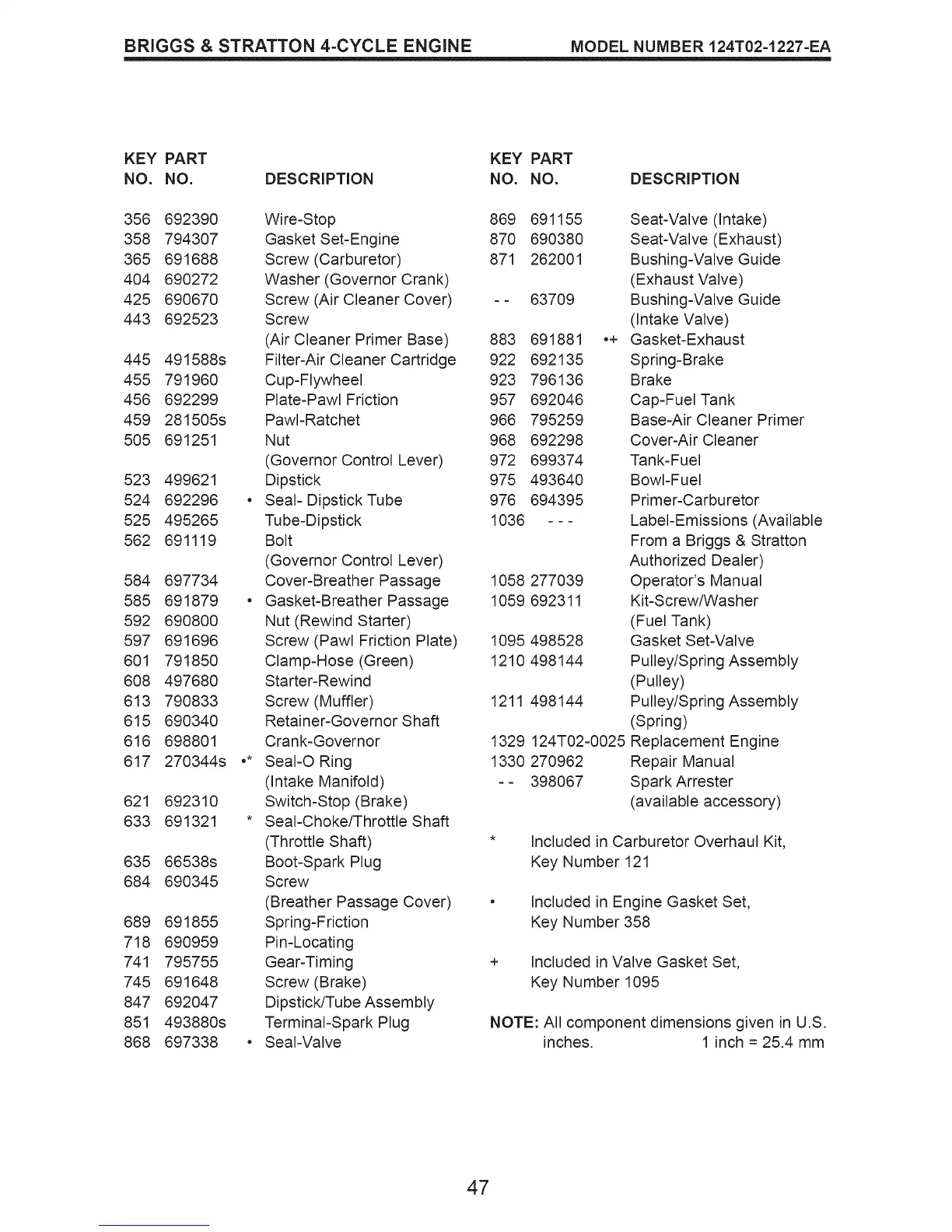

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 124T02-1227=EA
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
356 692390 Wire-Stop 869 691155 Seat-Valve(Intake)
358 794307 Gasket Set-Engine 870 690380 Seat-Valve (Exhaust)
365 691688 Screw (Carburetor) 871 262001 Bushing-Valve Guide
404 690272 Washer (Governor Crank) (Exhaust Valve)
425 690670 Screw (Air Cleaner Cover) -- 63709 Bushing-Valve Guide
443 692523 Screw (Intake Valve)
(Air Cleaner Primer Base) 883 691881 ,+ Gasket-Exhaust
445 491588s Filter-Air Cleaner Cartridge 922 692135 Spring-Brake
455 791960 Cup-Flywheel 923 796136 Brake
456 692299 Plate-Pawl Friction 957 692046 Cap-Fuel Tank
459 281505s PawI-Ratchet 966 795259 Base-Air Cleaner Primer
505 691251 Nut 968 692298 Cover-Air Cleaner
(Governor Control Lever) 972 699374 Tank-Fuel
523 499621 Dipstick 975 493640 Bowl-Fuel
524 692296 * SeaI- Dipstick Tube 976 694395 Primer-Carburetor
525 495265 Tube-Dipstick 1036 - - - Label-Emissions (Available
562 691119 Bolt From a Briggs & Stratton
(Governor Control Lever) Authorized Dealer)
584 697734 Cover-Breather Passage 1058 277039 Operator's Manual
585 691879 * Gasket-Breather Passage 1059 692311 Kit-Screw/Washer
592 690800 Nut (Rewind Starter) (Fuel Tank)
597 691696 Screw (Pawl Friction Plate) 1095 498528 Gasket Set-Valve
601 791850 Clamp-Hose (Green) 1210 498144 Pulley/Spring Assembly
608 497680 Starter-Rewind (Pulley)
613 790833 Screw (Muffler) 1211 498144 Pulley/Spring Assembly
615 690340 Retainer-Governor Shaft (Spring)
616 698801 Crank-Governor 1329 124T02-0025 Replacement Engine
617 270344s ,* SeaI-O Ring 1330 270962 Repair Manual
(Intake Manifold) -- 398067 SparkArrester
621 692310 Switch-Stop (Brake) (available accessory)
633 691321 * Seal-Choke/Throttle Shaft
(Throttle Shaft) * Included in Carburetor Overhaul Kit,
635 66538s Boot-Spark Plug Key Number 121
684 690345 Screw
(Breather Passage Cover) • Included in Engine Gasket Set,
689 691855 Spring-Friction Key Number 358
718 690959 Pin-Locating
741 795755 Gear-Timing + Included in Valve Gasket Set,
745 691648 Screw (Brake) Key Number 1095
847 692047 Dipstick/Tube Assembly
851 493880s Terminal-Spark Plug NOTE: All component dimensions given in U.S.
868 697338 • Seal-Valve inches. 1 inch = 25.4 mm
47
