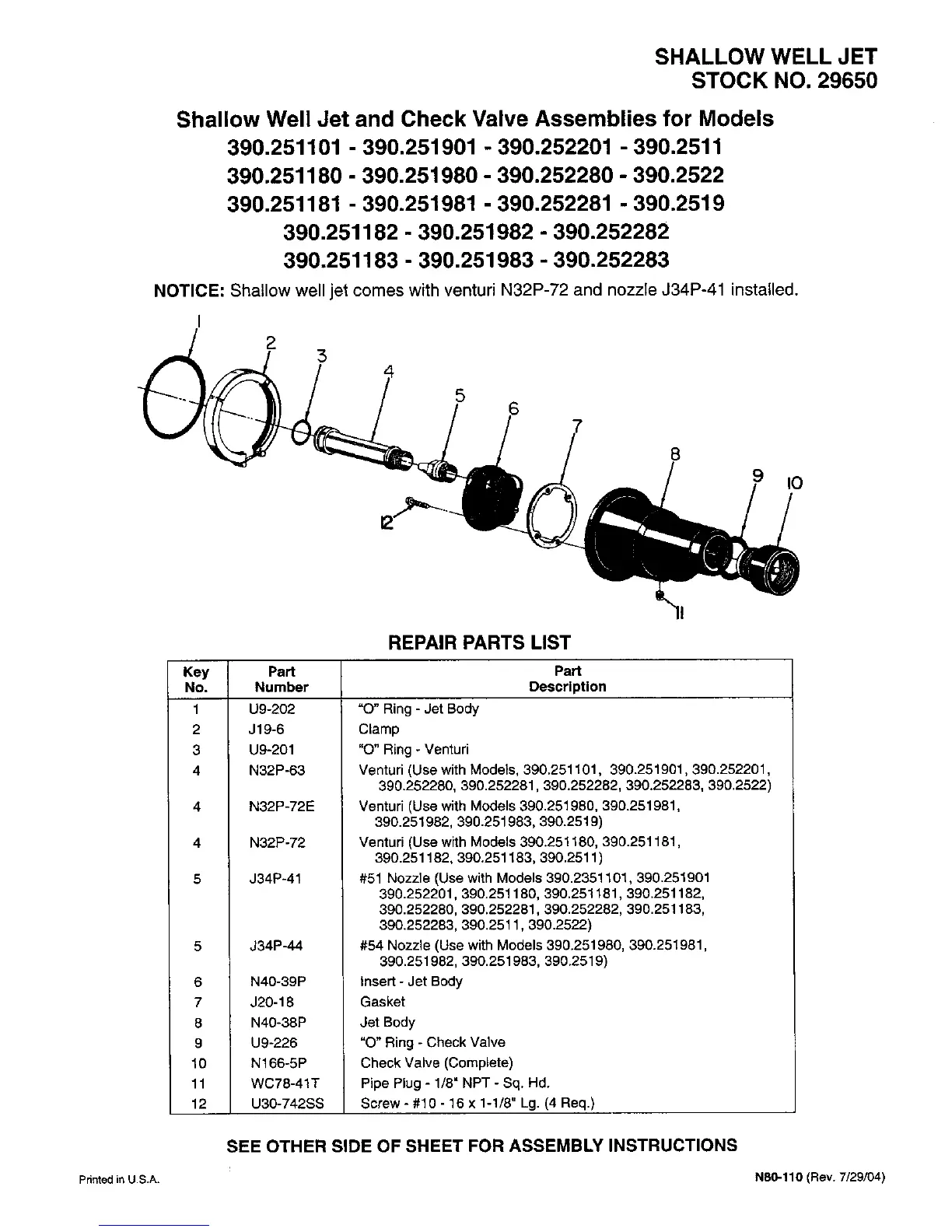

SHALLOW WELL JET
STOCK NO. 29650
Shallow Well Jet and Check Valve Assemblies for Models
390,251101 - 390,251901 - 390.252201 - 390,2511
390.251180 - 390,251980 - 390.252280 - 390.2522
390,251181 - 390.251981 - 390,252281 - 390.2519
390,251182 - 390.251982 - 390.252282
390.251183 - 390,251983 - 390,252283
NOTICE: Shallow well jet comes with venturi N32P-72 and nozzle J34P-41 installed.
I
2
5
8
9 IO
Key Part
No. Number
1 U9-202
2 J19-6
3 U9-201
4 N32P-63
4
4
5
6
7
8
9
10
11
12
REPAIR PARTS LIST
N32P-72E
N32P-72
J34P-41
J34P-44
N40-39P
J20-18
N40-38P
U9-226
N166-5P
WC78-41T
U30-742SS
Part
Description
"O" Ring - Jet Body
Clamp
"O" Ring - Venturi
Venturi (Use with Models, 390.251101, 390.251901,390.252201,
390.252280, 390.252281,390.252282, 390.252283, 390.2522)
Venturi (Use with Models 390.251980, 390.251981,
390.251982, 390.251983, 390.2519)
Venturi (Use with Models 390.251180, 390.251181,
390.251182, 390.251183, 390.2511 )
#51 Nozzle (Use with Models 390.2351101,390.251901
390.252201, 390.251180, 390.251181,390.251182,
390.252280, 390.252281, 390.252282, 390.251183,
390.252283, 390.2511,390.2522)
#54 Nozzle (Use with Models 390.251980, 390.251981,
390.251982, 390.251983, 390.2519)
Insert - Jet Body
Gasket
Jet Body
"O" Ring - Check Valve
Check Valve (Complete)
Pipe Plug - 1/8" NPT - Sq. Hd.
Screw - #10 - 16 x 1-1/8" Lg. (4 Req.)
SEE OTHER SIDE OF SHEET FOR ASSEMBLY INSTRUCTIONS
Printedin U.S.A. N80-110 (Rev. 7/29/04)
