KNOW YOUR MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR MOWER.
Compare the illustrations with your mower to familiarize yourself with the location of various controls and adjustments.
Save the manuaJ for future reference.
\ /
HEIGHT
ADJUSTMENT
STRAP
HEIGHT \\
ADJUSTMENT\
LIFT LEVER \
RECOIL START
NDLE
MOWER BLADE
CLUTCH LEVER
SHUT OFF
CONTROL
/

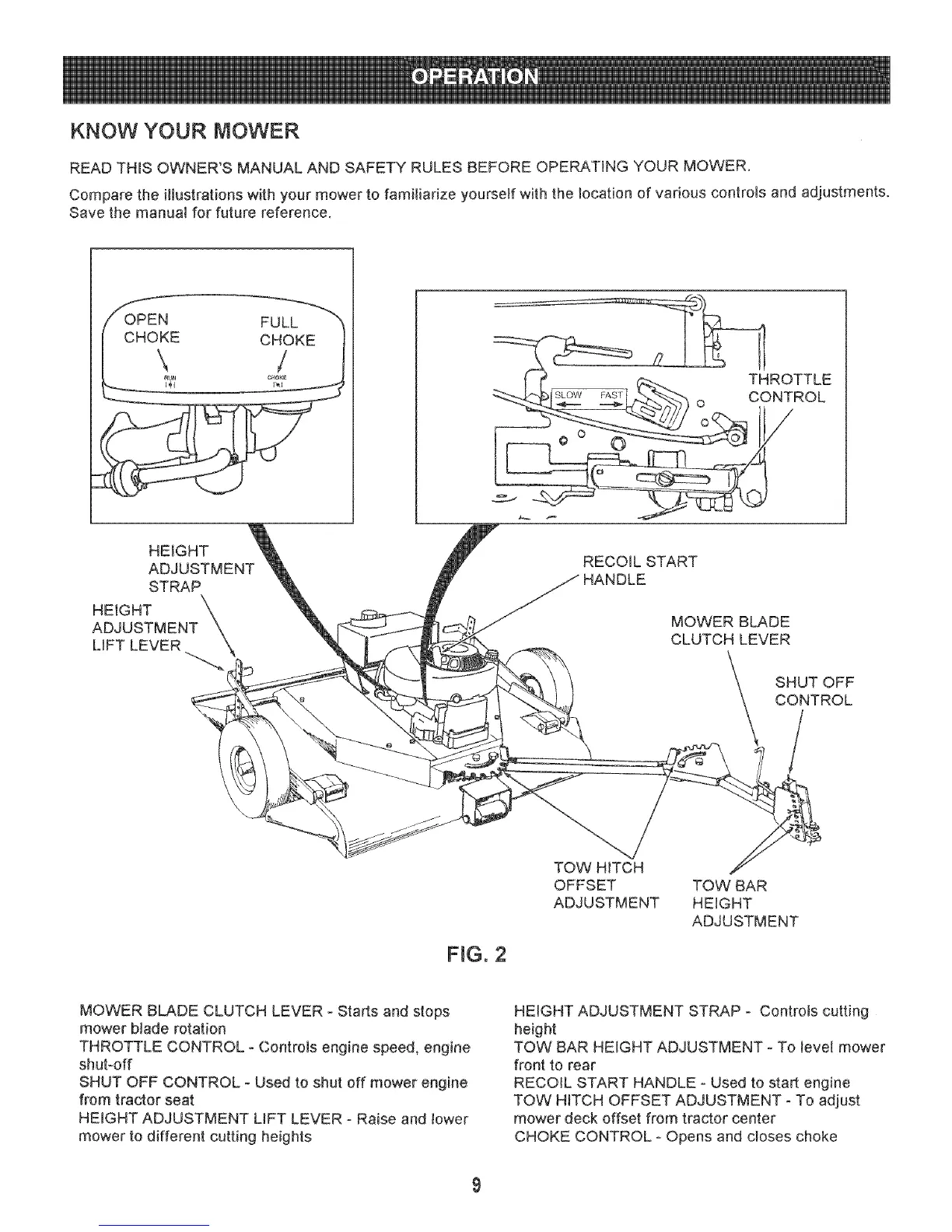

FiG. 2
TOW HITCH
OFFSET
ADJUSTMENT
TOW BAR
HEIGHT
ADJUSTMENT
MOWER BLADE CLUTCH LEVER - Starts and stops
mower blade rotation
THROTTLE CONTROL - Controls engine speed, engine
shut-off
SHUT OFF CONTROL - Used to shut off mower engine
from tractor seat
HEIGHT ADJUSTMENT LiFT LEVER o Raise and lower
mower to different cutting heights
HEIGHT ADJUSTMENT STRAP - Controls cutting
height
TOW BAR HEIGHT ADJUSTMENT oTo level mower
front to rear
RECOIL START HANDLE - Used to start engine
TOW HtTCH OFFSET ADJUSTMENT o To adjust
mower deck offset from tractor center
CHOKE CONTROL oOpens and closes choke
