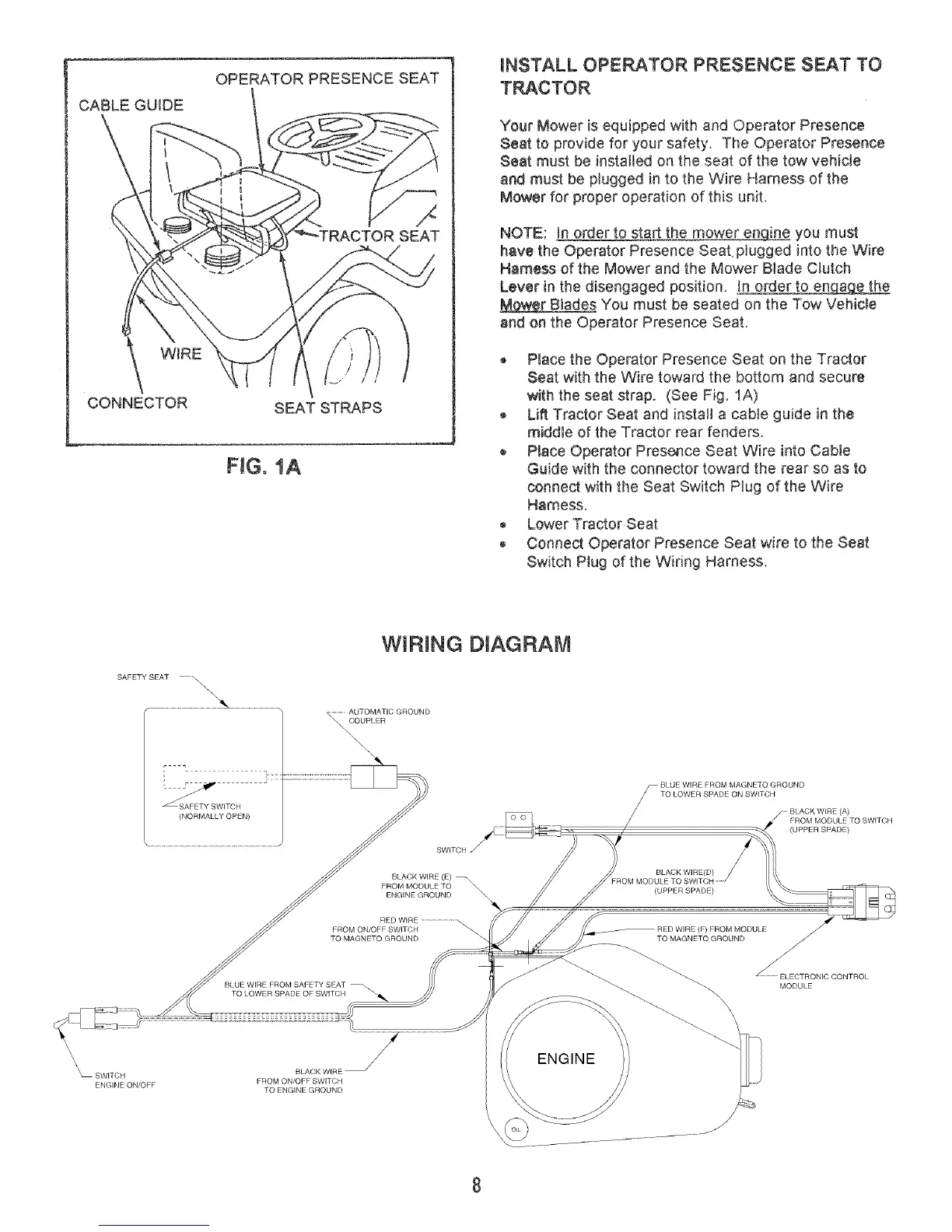

Craftsman 486.243293 - Wiring Diagram

CABLE GUIDE
OPERATOR PRESENCE SEAT
SEAT
WIRE
CONNECTOR
SEAT STRAPS
FJGoIA
INSTALL OPERATOR PRESENCE SEAT TO
TRACTOR
Your Mower is equipped with and Operator Presence
Seat to provide for your safety. The Operator Presence
Seat must be installed on the seat of the tow vehicle
and must be plugged in to the Wire Harness of the
Mower for proper operation of this unit.
NOTE: In order to sta4 the mower _ you must
have the Operator Presence Seatplugged into the Wire
Harness of the Mower and the Mower Blade Clutch
Lover in the disengaged position. In order to en a e the
Blades You must be seated on the Tow Vehicle
and on the Operator Presence Seat.
• Place the Operator Presence Seat on the Tractor
Seat with the Wire toward the bottom and secure
with the seat strap. (See Fig. 1A)
o Lift Tractor Seat and install a cable guide in the
middle of the Tractor rear fenders,
P_ace Operator Preseace Seat Wire into Cable
Guide with the connector toward the rear so as to
connect with the Seat Switch Plug of the Wire
Harness,
,, Lower Tractor Seat
o Connect Operator Presence Seat wire to the Seat
Switch Plug of the Wiring Harness.
SAFETY SEAT ..........\
\\
\\
WiRiNG DIAGRAM
\
\
\
\
SWITCH
ENGINE ON/OFF
_WITCH
(NORMALLY OPEN I
SWITCH /
BLACK WIRE(E)_
FROM MODULE TO \\
ENGINE GROUND
RED WIRE \
FROM ON/OFF SWITCH
TO MAGNETO GROUND
BLUE WIRE FROM SAFETY SEAT
TO LOWER SPADE OF SWITCH
BLACK WiRE --/
FROM ON/OFF SWITCH
TO ENGINE GROUND
/ BLACKWIRE (A)
FROM MODULE TO SWITCH
(UPPER SPADE)
:ROM MODULE TO
(UPPER SPADE)
(F) FROM MODULE
TO MAGNETO GROUND
MODULE
