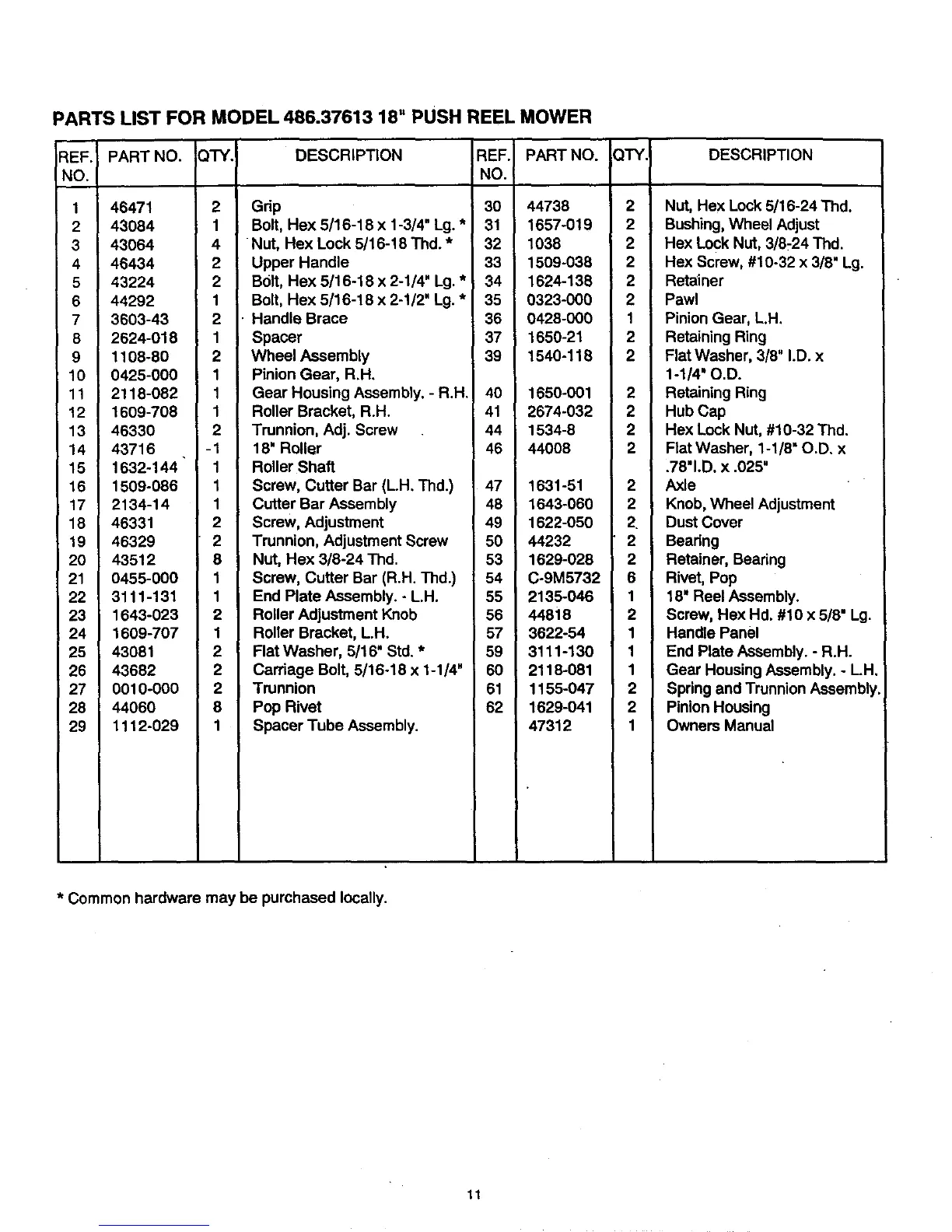

PARTS LIST FOR MODEL 486.37613 18 = PUSH REEL MOWER
F:tEF. PARTNO. QTY'. DESCRIPTION REF. PARTNO. DTY
NO. NO.
DESCRIPTION
1 46471
2 43084
3 43064
4 46434
5 43224
6 44292
7 3603-43
8 2624-018
9 1108-80
10 0425-000
11 2118-082
12 1609-708
13 46330
14 43716
15 1632-144"
16 1509-086
17 2134-14
18 46331
19 46329
20 43512
21 0455-000
22 3111-131
23 1643-023
24 1609-707
25 43081
26 43682
27 0010-000
28 44060
29 1112-029
2 Grip
1 Bolt, Hex 5/16-18 x 1-3/4" Lg. *
4 Nut, Hex Lock 5/16-18 Thd. *
2 Upper Handle
2 B01t,Hex 5/16-18 x 2-1/4" Lg. *
1 Bolt, Hex 5/16-18 x 2-1/2" Lg. *
2 Handle Brace
1 Spacer
2 Wheel Assembly
1 Pinion Gear, R.H.
1 Gear Housing Assembly. - R.H.
1 Roller Bracket, R.H.
2 Trunnion, Adj. Screw
-1 18" Roller
1 Roller Shaft
1 Screw, Cutter Bar (L.H. Thd.)
1 Cutter Bar Assembly
2 Screw, Adjustment
2 Trunnion, Adjustment Screw
8 NUt, Hex 3/8-24 Thd.
1 Screw, Cutter Bar (R.H. Thd.)
1 End Plate Assembly. - L.H.
2 Roller Adjustment Knob
1 Roller Bracket, L.H.
2 Flat Washer, 5/16" Std. *
2 Carriage Bolt, 5/16-18 x 1-1/4"
2 Trunnion
8 Pop Rivet
1 Spacer Tube Assembly.
30 44738
31 1657-019
32 1038
33 1509-038
34 1624-138
35 0323-000
36 0428-000
37 1650-21
39 1540-118
40 1660-001
41 2674-032
44 1534-8
46 44008
47 1631-51
48 1643-060
49 1622-050
50 44232
53 1629-028
54 C-9M5732
55 2135-046
56 44818
57 8622-54
59 3111-130
60 2118-081
61 1155-047
62 1629-041
47312
2 NUt, Hex Lock 5/16-24 Thd.
2 Bushing, Wheel Adjust
2 Hex Lock Nut, 3/8-24 Thd.
2 Hex Screw, #10-32 x 3/8" Lg.
2 Retainer
2 Pawl
1 Pinion Gear, L.H.
2 Retaining Ring
2 Flat Washer, 3/8" I.D. x
1-1/4' O.D.
2 Retaining Ring
2 Hub Cap
2 Hex Lock Nut, #10-32 Thd.
2 Flat Washer, 1-1/8" O.D. x
.78"1.D. x .025"
2 Axle
2 Knob, Wheel Adjustment
2 Dust Cover
2 Bearing
2 Retainer, Bearing
6 Rivet, Pop
1 18' Reel Assembly.
2 Screw, Hex Hd. #10 x 5/8" Lg.
1 Handle Panel
1 End Plate Assembly. - R.H.
1 Gear Housing Assembly. - L.H.
2 Spring and Trunnion Assembly
2 Pinion Housing
1 Owners Manual
* Common hardware may be purchased locally.
11
