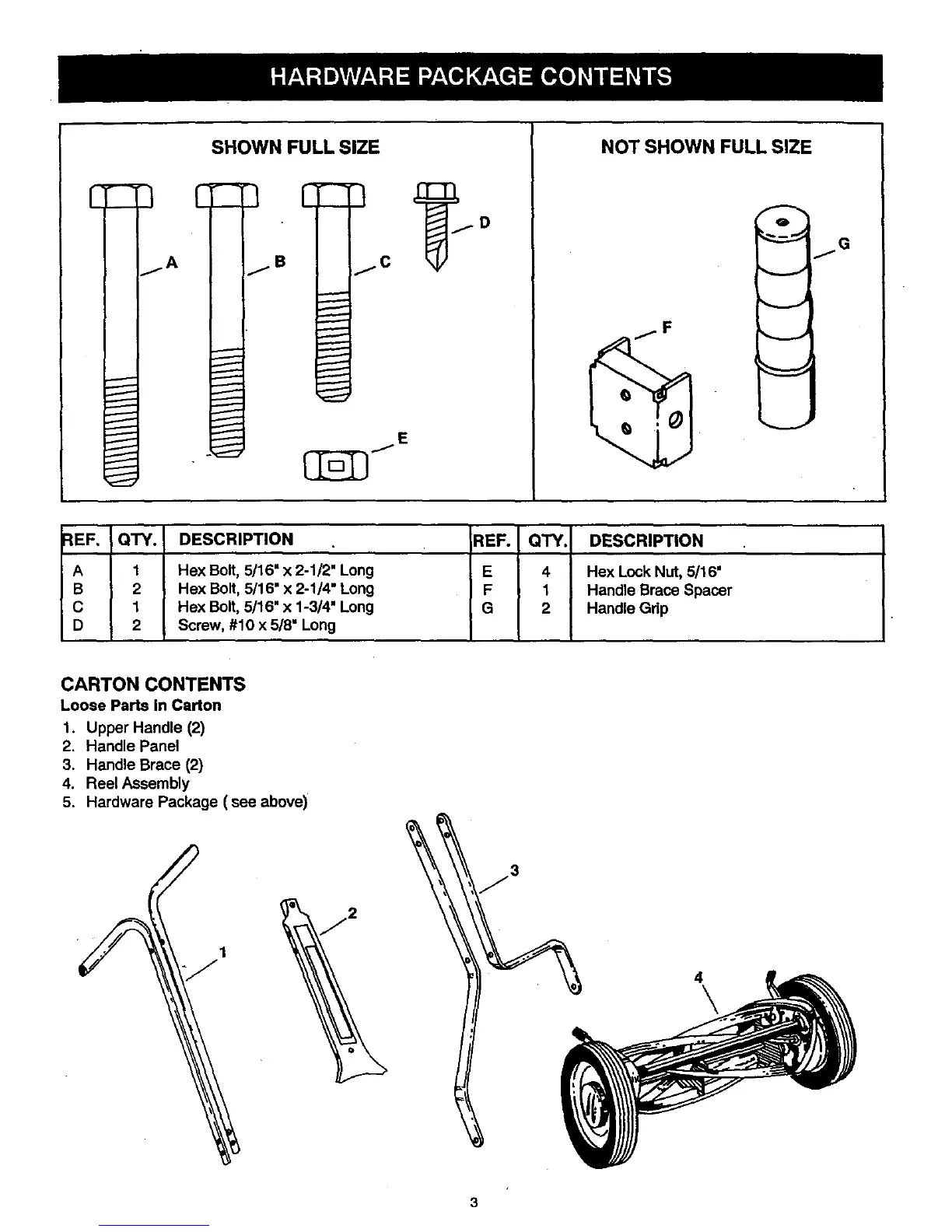

Craftsman 486.37613 - Hardware Package Contents; Carton Contents

E
jA
I
I
I
I
I
I
I
SHOWN FULL SIZE
I
1
I
E
NOT SHOWN FULL SIZE
o
G
f
REF. QTY.
A 1
B 2
C 1
D 2
DESCRIPTION
Hex Bolt, 5/16" x 2-1/2" Long
Hex Bolt, 5/16" x 2-1/4" Long
Hex Bolt, 5/16" x 1-3/4" Long
Screw, #10 x 5/8" Long
REF. QTY.
E 4
F 1
G 2
DESCRIPTION
Hex Lock Nut, 5/16"
Handle Brace Spacer
Handle Gdp
CARTON CONTENTS
Loose Parts in Carton
1. Upper Handle (2)
2. Handle Panel
3. Handle Brace (2)
4. Reel Assembly
5. Hardware Package ( see above)
4
