Craftsman 536.292521 - Page 22

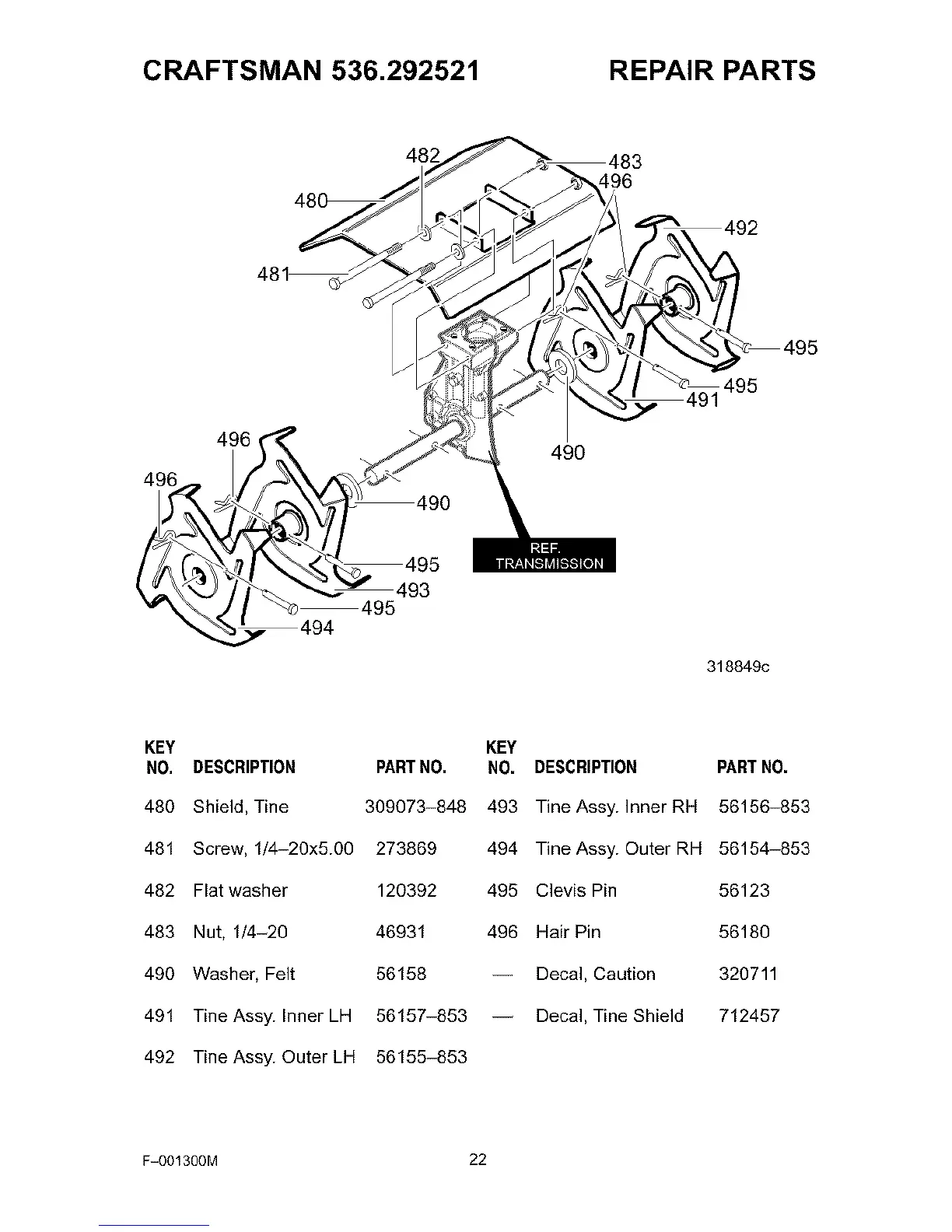

CRAFTSMAN 536.292521 REPAIR PARTS
496
496
482
4814_
318849c
KEY
NO. DESCRIPTION PART NO.
480 Shield, Tine 309073-848
481 Screw, 1/4-20x5.00 273869
482 Flat washer 120392
483 Nut, 1/4-20 46931
490 Washer, Felt 56158
491 Tine Assy. Inner LH 56157-853
492 Tine Assy. Outer LH 56155_53
KEY
NO. DESCRIPTION PARTNO.
493 Tine Assy. Inner RH 56156_53
494 Tine Assy. Outer RH 56154-853
495 Clevis Pin 56123
496 Hair Pin 56180
-- Decal, Caution 320711
-- Decal, Tine Shield 712457
F=001300M 22
