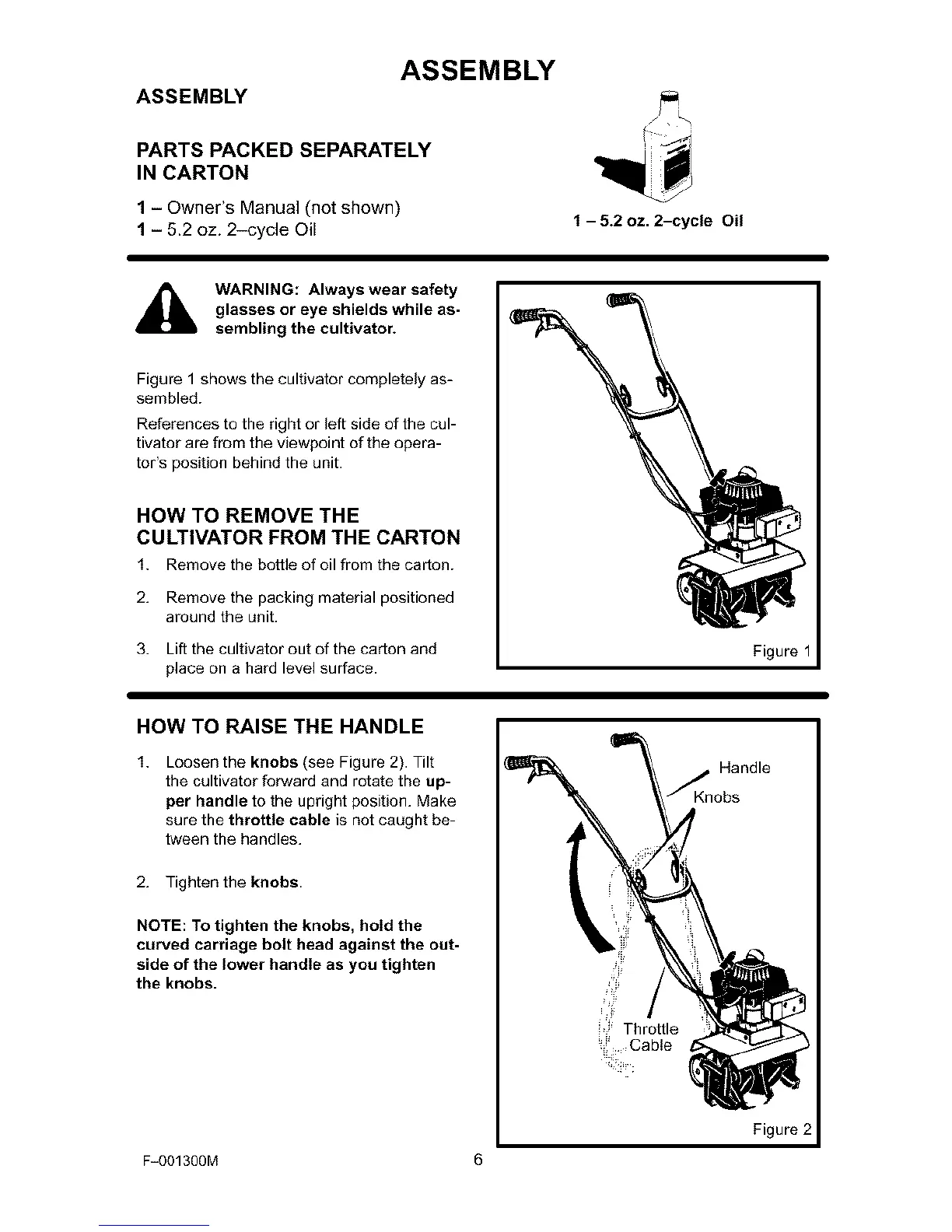

ASSEMBLY
ASSEMBLY
PARTS PACKED SEPARATELY
IN CARTON
1 - Owner's Manual (not shown)
1 - 5.2 oz. 2-cycle Oil
f - 5.2 oz. 2-cycle Oil
WARNING: Always wear safety
glasses or eye shields while as-
sembling the cultivator.
Figure 1 shows the cultivator completely as-
sembled.
References to the right or left side of the cul-
tivator are from the viewpoint of the opera-
tot's position behind the unit.
HOW TO REMOVE THE
CULTIVATOR FROM THE CARTON
1. Removethe bottle of oil from the carton.
2. Removethe packing material positioned
aroundthe unit.
3. Liftthe cultivator out of the carton and
place on a hard level surface.
Figure 1
HOW TO RAISE THE HANDLE
1. Loosen the knobs (see Figure 2). Tilt
the cultivator forward and rotate the up-
per handle to the upright position. Make
sure the throttle cable is not caught be-
tween the handles.
2. Tighten the knobs.
NOTE: To tighten the knobs, hold the
curved carriage bolt head against the out-
side of the lower handle as you tighten
the knobs.
Handle
Knobs
Figure 2
F=001300M 6
