Craftsman 536.292521 - Page 24

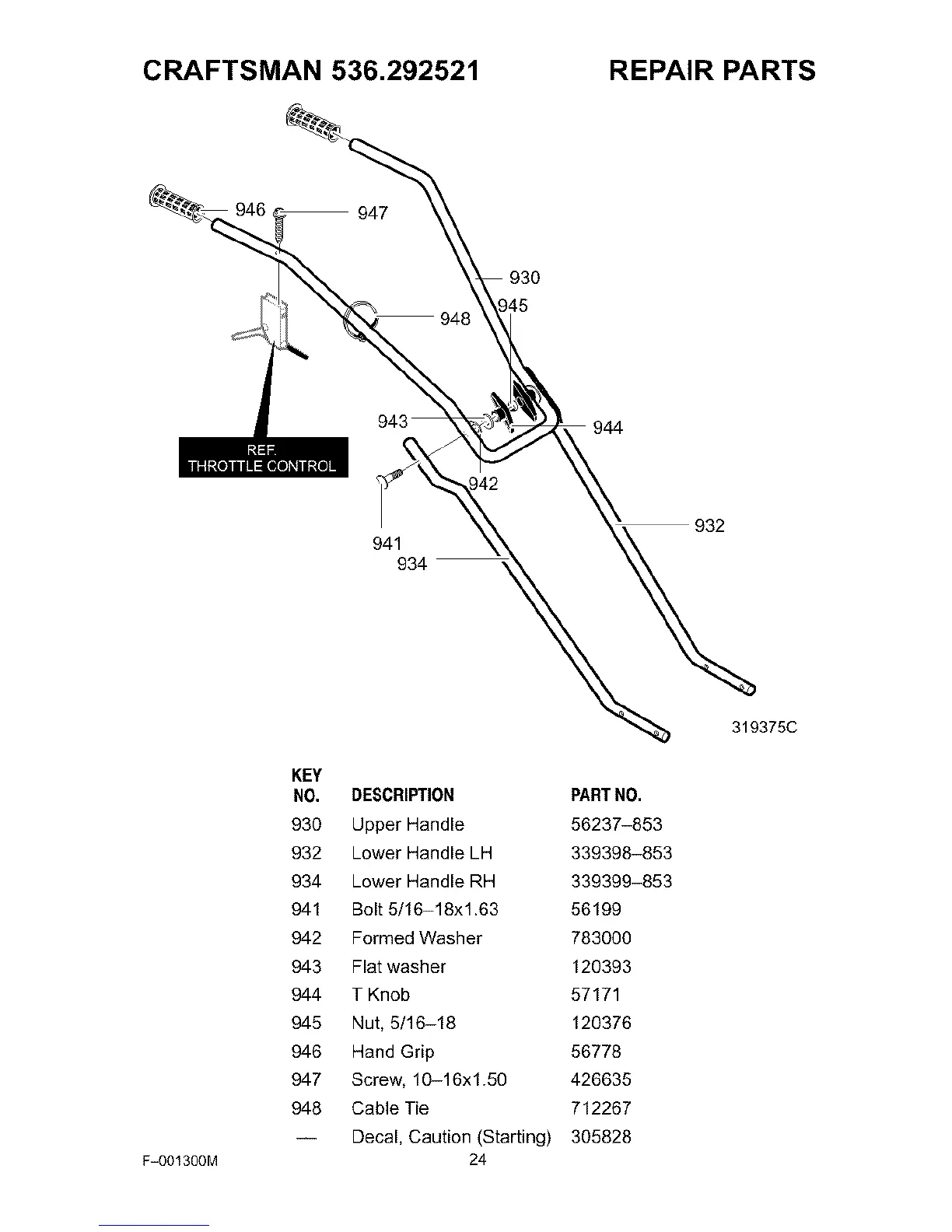

CRAFTSMAN 536.292521 REPAIR PARTS
947
930
[5
944
F=001300M
941
934
KEY
NO. DESCRIPTION PARTNO.
930 Upper Handle 56237-853
932 Lower Handle LH 339398-853
934 Lower Handle RH 339399-853
941 Bolt 5/16-18xl .63 56199
942 Formed Washer 783000
943 Flat washer 120393
944 T Knob 57171
945 Nut, 5116-18 120376
946 Hand Grip 56778
947 Screw, 10-16xl.50 426635
948 Cable Tie 712267
-- Decal, Caution (Starting) 305828
24
932
319375C
