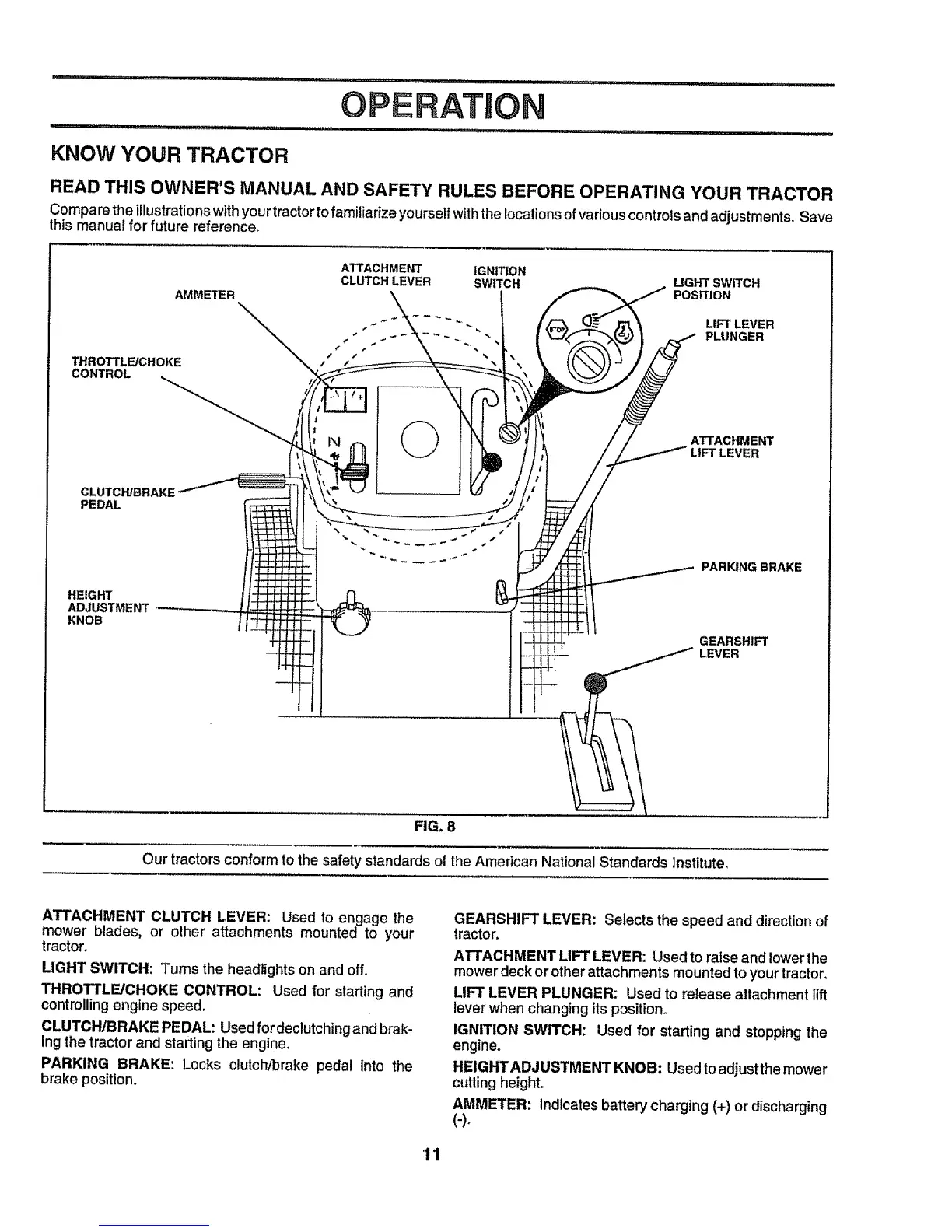

OPERATION
i...................... ::::1,1,, ,
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Comparethe illustrationswithyourtractortofamiliarize yourselfwiththe locationsofvariouscontroisandadjustments_Save
this manual for future reference°
ATTACHMENT IGNITION
CLUTCH LEVER SWITCH
AMMETER
%
THROTTLE/CHOKE
CONTROL
LIGHT SWITCH
POSITION
LIFT LEVER
PLUNGER
CLUTCH/BRAKE
PEDAL
HEIGHT
ADJUSTMENT
KNOB
©
ATTACHMENT
LIFT LEVER
PARKING BRAKE
GEARSHIFT
LEVER
FIG. 8
Our tractorsconform to the safety standards of the American National Standards ]nstitute_
ATTACHMENT CLUTCH LEVER: Used to engage the
mower blades, or other attachments mounted to your
tractor°
LIGHT SWITCH: Turns the headlights on and off,
THROTTLE/CHOKE CONTROL: Used for starting and
controllingengine speed.
CLUTCH/BRAKE PEDAL: Used for declutching and brak-
ingthe tractor and starting the engine.
PARKING BRAKE: Locks clutch/brake pedal into the
brake position.
GEARSHIFT LEVER: Selects the speed and direction of
tractor,
ATTACHMENT LIFT LEVER: Used to raise and lower the
mower deck or other attachments mountedto yourtractor,
LIFT LEVER PLUNGER: Used to release attachment lift
lever when changing its position°
IGNITION SWITCH: Used for starting and stopping the
engine.
HEIGHTADJUSTMENT KNOB: Usedto adjustthe mower
cutting height.
AMMETER: Indicates battery charging (÷) or discharging
(-).
'11
