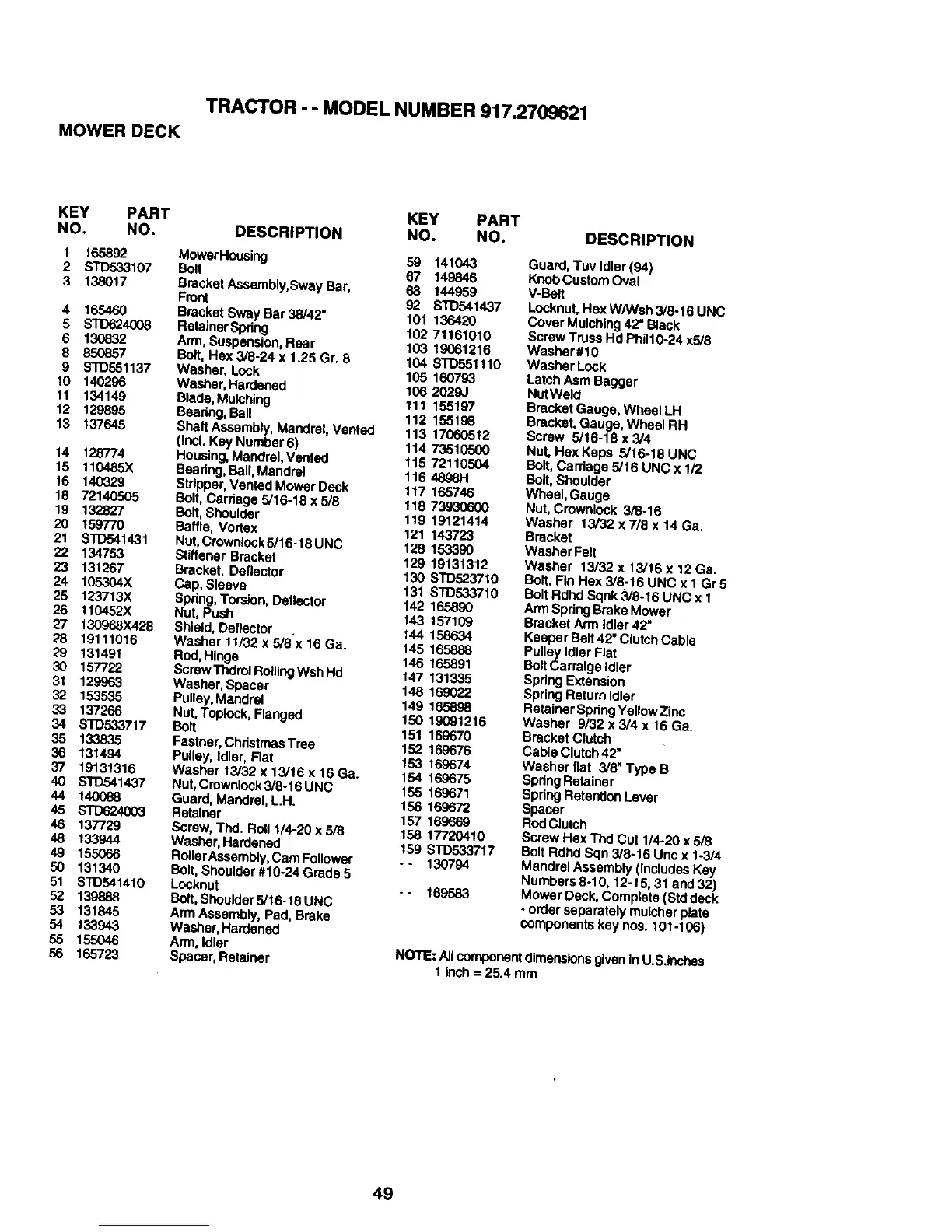

TRACTOR -- MODEL NUMBER 917.2709621
MOWER DECK
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 165892 MowerHousing 59 141043
2 STD533107 Bolt 67 149846
3 138017 BrecketAssembly,SwayBar, 68 144959
Front 92 STD541437
4 165460 Bracket Sway Bar 38/42" 101 136420
5 STD624008 RetainerSpdng 102 71161010
6 130832 Arm, Suspension, Rear 103 19061216
8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 104 STD551110
9 S'I_551137 Washer, Lock 105 160793
10 140296 Washer, Hardened 106 2029J
11 134149 Blade, Mulching 111 155197
12 129895 Bearing,Ball 112 155198
13 137645 Shaft Assembly, Mandrel, Vented 113 17060512
(IncLKey Number 6) 114 73510500
14 128774 Housing,Mandrel, Vented 115 72110504
15 110485X Bearing,Bali, Mandrel 116 4898H
16 140329 Stdpper, Vented MowerDeck 117 165746
18 72140505 Bolt, Carriage 5,'16-18 x 5/8 118 73930600
19 132827 Bolt, Shoulder 119 19121414
20 159770 Baffle, Vortex 121 143723
21 S'rD541431 Nut,Crownlock5/16-18UNC 128 153390
22 134753 Stiffener Bracket 129 19131312
23 131267 Bracket, Deflector 130 STD523710
24 105304X Cap, Sleeve 131 STD533710
25 123713X Spring,Torsion, Deflector 142 165890
26 110452X Nut, Push 143 157109
27 130968X428 Shield, Deflector 144 158634
28 19111016 Washer 11/32 x 5/8 x 16 Ga. 145165888
29 131491 Rod, Hinge 146 165891
30 157722 ScrewThdrolRolllngWshHd 147 131335
31 129963 Washsr, Spscer 148 169022
32 153535 Pulley, Mandrel 149 165898
33 137266 Nut, Toptock, Flanged 150 19091216
34 STD533717 Bolt 151 169670
35 133835 Fastner, Christmas'rree 152 169676
36 131494 Pulley, Idler, Rat 153 169674
37 19131316 Washer 13/32 x 13/16 x 16 Ga. 154 168675
40 STD541437 Nut, Crownlock3/6-t6UNC 155 169671
44 140088 Guard, Mandrel, L.H. 156 169672
45 S'1'O624003 Retainer 157 169669
46 137729 Screw, Tnd. Roll 1/4-20 x 5/8 158 17720410
48 133944 Washer,Hsrdened 159 STD533-/17
49 155066 RollerAssembly, Cam Follower -- 130794
50 131340 Bolt, Shoulder #10-24 Grade 5
51 STD541410 Locknut - - 169583
52 139888 Bolt, Shoulder5/16-18 UNC
53 131845 Arm Assembly, Pad, Brake
54 133943 Washer, Hardened
55 155046 Arm, Idler
56 165723 Spacer, Retainer
DESCRIPTION
Guard, Tuv Idler {94)
Knob Custom Oval
V-Belt
Locknut,Hex W/Wsh 3/8-16 UNC
Cover Mulching42" Black
Screw Truss Hd Phil10-24 x5/8
Washer#10
Washer Lock
Latch Asm Bagger
NutWeld
Bracket Gauge, Wheel LH
Bracket, Gauge, Wheel RH
Screw 5/16-18 x 3/4
Nut, Hex Keps 5/16-18 UNC
Bolt, Carriage 5/16 UNC x 1/2
Bolt,Shoutder
Wheel, Gauge
Nut, Crownlcck 3/8-16
Washer 13/32 x 7/8 x 14 Ga.
Bracket
Washer Felt
Washer 13/32 x 13/16 x 12 Ga.
Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5
Bolt Rdhd Sqnk 3/8-16 UNC x 1
ArmSpring Brake Mower
Bracket Arm Idler 42"
Keeper Belt 42"ClutchCable
Pulley Idler Flat
Bolt Carraigs Idler
Spring Extension
SpringReturn idler
Retainer SpringYellowZinc
Washer 9/32 x 3/4 x 16 Ga.
Bracket Clutch
Cable Clutch42"
Washer flat 3/8" Type B
SpringRetainer
Spring Retention Lever
Spacer
BodClutch
Screw Hex Thd Cut 1/4-20 x 5/8
Bolt Rdhd Sqn 3/8-16 Uno x 1-3/4
Mandrel Assembly (IncludesKey
Numbers 8-10, 12-15, 31 and 32)
Mower Deck, Complete (Std deck
- order separately mulcher plate
components key nos. 101-106)
NOTE:/dl componentdimensionsgivenin U.S.Inohes
1 inch = 25.4 mm
49
