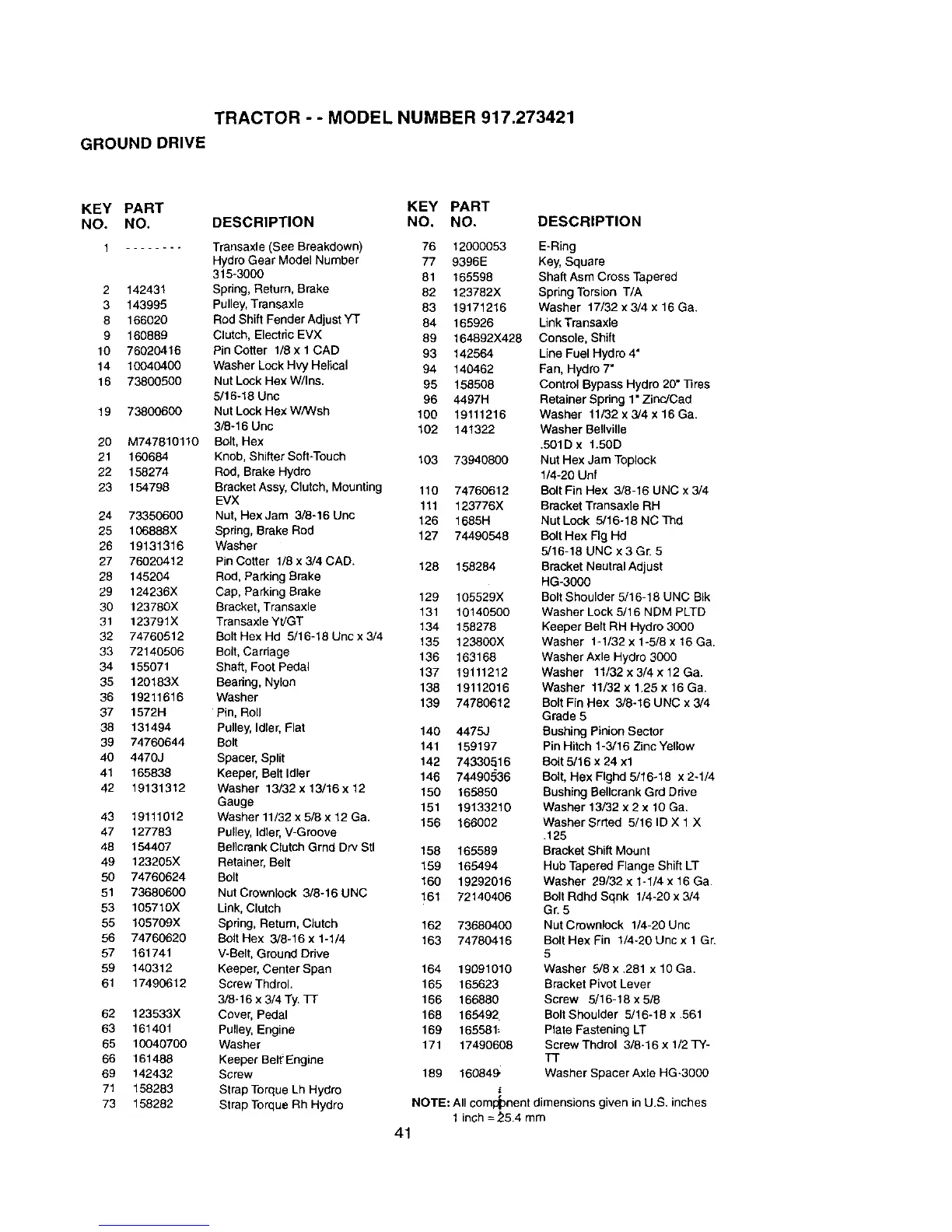

TRACTOR - - MODEL NUMBER 917.273421
GROUND DRIVE
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 ........ Transaxle(See Breakdown) 76 12000053
HydroGear Model Number 77 9396E
315-3000 81 165598
2 142431 Spdng, Return, Brake 82 123782X
3 143995 Pulley,Transaxle 83 19171216
8 166020 Rod Shift Fender Adjust Y3" 84 165926
9 160889 Clutch, Electric EVX 89 164892X428
10 76020416 Pin Cotter 1/8 x 1 CAD 93 142564
14 10040400 Washer Lock Hvy Helical 94 140462
16 73800500 Nut Lock Hex W/Ins. 95 158508
5/16-18 Uric 96 4497H
19 73800600 Nut Lock Hex W/Wsh 100 19111216
3/8-16 Unc 102 141322
20 M747810110 Bolt, Hex
21 160684 Knob, Shifter Soft-Touch 103 73940800
22 158274 Rod, Brake Hydro
23 154798 Bracket Assy, Clutch, Mounting 110 74760612
EVX 111 123776X
24 73350600 Nut, HexJam 3/8-16 Uric 126 1685H
25 106888X Spring, Brake Rod 127 74490548
26 19131316 Washer
27 76020412 Pin Cotter 1/6 x 3/4 CAD. 128 158284
28 145204 Rod, Parking Brake
29 124236X Cap, Parking Brake 129 105529X
30 123780X Bracket, Trensaxle 131 10140500
31 123791X Transaxle Yt]GT 134 158278
32 74760512 Bolt Hex Hd 5/16-18 Uric x 3/4 135 123800X
33 72140506 Bolt, Carriage 136 163168
34 155071 Shaft, Foot Pedal 137 19111212
35 120183X Bearing, Nylon 138 19112016
36 19211616 Washer 139 74780612
37 1572H Pin, Roll
38 131494 Pulley, Idler,Flat 140 4475,1
39 74760644 Bolt 141 159197
40 4470J Spacer, Split 142 74330516
41 165838 Keeper, Belt Idler 146 74490536
42 19131312 Washer 13/82 x 13/16x 12 150 165850
Gauge 151 19133210
43 19111012 Washer 11/32 x 5/8 x 12 Ga. 156 166002
47 127783 Pulley, Idler, V-Groove
48 154407 BellcrankClutch Grnd DrYStl 156 165589
49 123205X Retainer, Belt 159 165494
50 74760624 Bolt 160 19292016
51 73680600 Nut Crownlock 3/8-16 UNC 161 72140406
53 105710X Link, Clutch
55 105709X Spring, Return, Clutch 162 73680400
56 74760620 Bolt Hex 3/8-16x 1-1/4 163 74780416
57 161741 V-Belt, Ground Ddve
59 140312 Keeper, Center Span 164 19091010
61 17490612 Scraw Thdrol. 165 165623
3/8-16 x 3/4 Ty. TI- 166 166880
62 123533X Cover, Pedal 168 165492
63 161401 Pulley, Engine 169 165581:
65 10040700 Washer 171 17490608
66 161488 Keeper Belt"Engine
69 142432 Screw 189 160849.
71 158283 Strap TorqueLh Hydro
73 158282 Strap Torque Rh Hydro
DESCRIPTION
E-Ring
Key, Square
Shaft Asm Cross Tapered
Spring Torsion T/A
Washer 17/32 x 3/4 x 16 Ga.
Link Transaxle
Console, Shift
Line Fuel Hydro 4"
Fan, Hydro 7"
Control Bypass Hydro 20" 33res
Retainer Spring 1" Zinc!Cad
Washer 11/32 x 3/4 x 16 Ga.
Washer Bellville
.501D x t.50D
Nut Hex Jam Toplock
1/4-20 Unf
Bolt Fin Hex 3/8-16 UNC x 3/4
Bracket Transaxle RH
Nut Lock 5/16-18 NC Thd
Bolt Hex Fig Hd
5/16-18 UNC x 3 Gr. 5
Bracket Neutral Adjust
HG-3000
Bolt Shoulder 5/16-18 UNC BIk
Washer Lock 5/16 NDM PLTD
Keeper Belt RH Hydro 3000
Washer 1-1/32 x 1-5/8 x 16 Ga.
Washer Axle Hydro 3000
Washer 11/32 x 3/4 x 12 Ga.
Washer 11/82 x 1.25 x 16 Ga.
Bolt Fin Hex 3/8-16 UNC x 3/4
Grade 5
BushingPinionSector
Pin Hitch 1-3/16 Zinc Yellow
Bolt 5/16 x 24 xl
Bolt, Hex Flghd 5/16-18 x 2-1/4
Bushing Bellcrank Grd Drive
Washer 13/82 x 2 x 10 Ga.
Washer Srrted 5/16 ID X 1 X
.125
Bracket Shift Mount
Hub Tapered Flange Shift LT
Washer 29/32 x 1-1/4 x 16 Ga.
Bolt Rdhd Sqnk 1/4-20 x 3/4
Gr. 5
Nut Crownlock 1/4-20 Unc
Bolt Hex Fin 1/4-20 Unc x 1 Gr.
5
Washer 5/8 x .281 x 10 Ga.
Bracket Pivot Lever
Screw 5/16-18 x 5/8
Bolt Shoulder 5/16-18 x .561
Plate Fastening LT
ScrewThdrol 3/6-16 x 1/2 TY-
TT
Washer Spacer Axle HG-3000
NOTE: All component dimensionsgiven inU.S. inches
1 inch =2.5.4 mm
