Craftsman 917.273421 - Seat Assembly

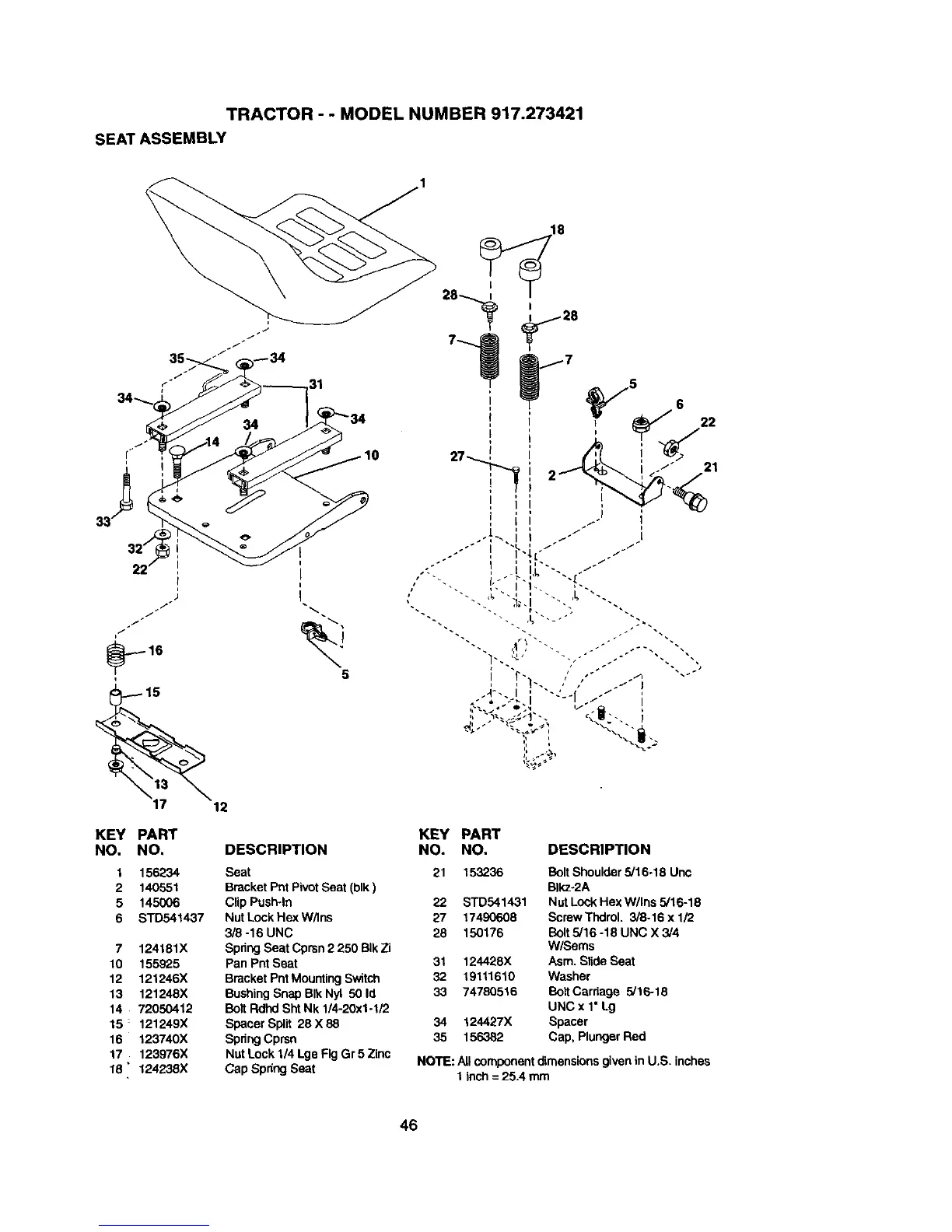

TRACTOR - - MODEL NUMBER 917.273421
SEAT ASSEMBLY
31
10
KEY PART
NO. NO.
1 156234
2 140551
5 145006
6 STD541437
7 124181X
10 155925
12 121246X
13 121248X
14 72050412
15 121249X
16 123740X
17 123976X
15" 124235X
DESCRIPTION
Seat
Bracket Pnt Pivot Seat (blk)
Clip Push-In
Nut Lock Hex W/Ins
3/8 -16 UNC
Spdng Seat Cprsn 2 250 BIkZi
Pan Pnt Seat
Bracket Pnt MountingSwitch
BushingSnap BIk Nyl 50 Id
Bolt Rdhd ShtNk 1/4-20x1-1/2
Spacer Split 28 X 88
Spring Cprsn
Nat Lock1/4 Lge Fig Gr 5 Zinc
Cap Spring Seat
5
21
KEY
NO.
PART
NO. DESCRIPTION
21 15,3236 Boit Shoulder5/16-18 Unc
Blkz-2A
22 STD541431 Nut LockHex W/Ins 5/16-18
27 17490608 ScrewThdrol. 3/8-16 x 1/2
28 150176 Bolt5/16 -18 UNC X 3/4
W/Sems
31 124428X Asm. Slide Seat
32 19111610 Washer
33 74780516 BoltCarriage 5/16-18
UNCx 1"Lg
34 124427X Spacer
35 156382 Cap, PlungerRed
NOTE: All component dimensions givenin U.S. inches
1 inch = 25.4 mm
46
