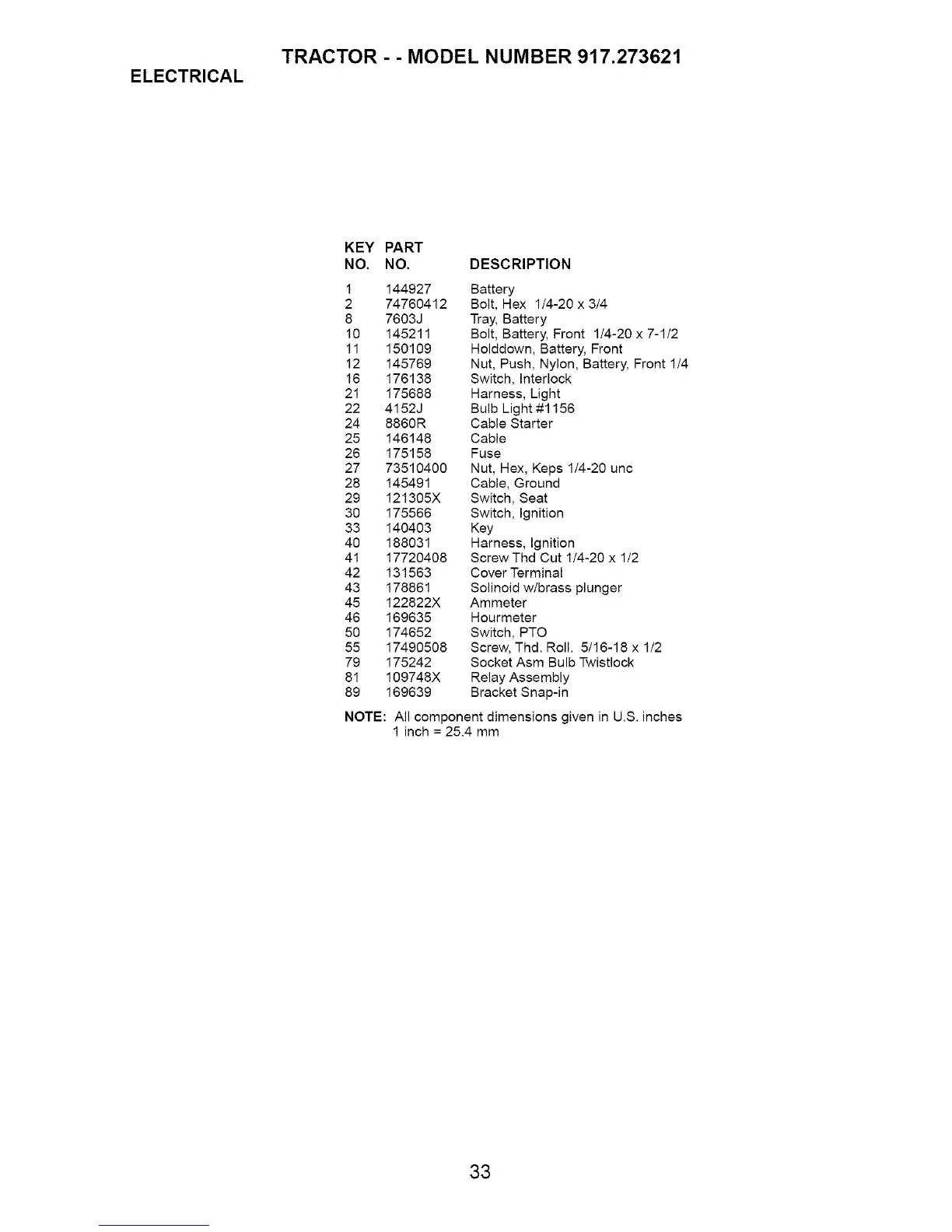

Craftsman 917.273621 - Page 33

ELECTRICAL
TRACTOR - - MODEL NUMBER 917.273621
KEY PART
NO. NO. DESCRIPTION
1 144927 Battery
2 74760412 Bolt, Hex 1/4-20 x 3/4
8 7603J Tray, Battery
10 145211 Bolt, Battery, Front 1/4-20 x 7-1/2
11 150109 Holddown, Battery, Front
12 145769 Nut, Push, Nylon, Battery, Front 1/4
16 176138 Switch, Interlock
21 175688 Harness, Light
22 4152J Bulb Light #1156
24 8860R Cable Starter
25 146148 Cable
26 175158 Fuse
27 73510400 Nut, Hex, Keps 1/4-20 uric
28 145491 Cable, Ground
29 121305X Switch, Seat
30 175566 Switch, Ignition
33 140403 Key
40 188031 Harness, Ignition
41 17720408 ScrewThd Cut 1/4-20 x 1/2
42 131563 Cover Terminal
43 178861 Solinoid w/brass plunger
45 122822X Ammeter
46 169635 Hourmeter
50 174652 Switch, PTO
55 17490508 Screw, Thd. Roll. 5/16-18 x 1/2
79 175242 Socket Asm Bulb Twistlock
81 109748X Relay Assembly
89 169639 Bracket Snap-in
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
