Craftsman 917.273621 - Page 35

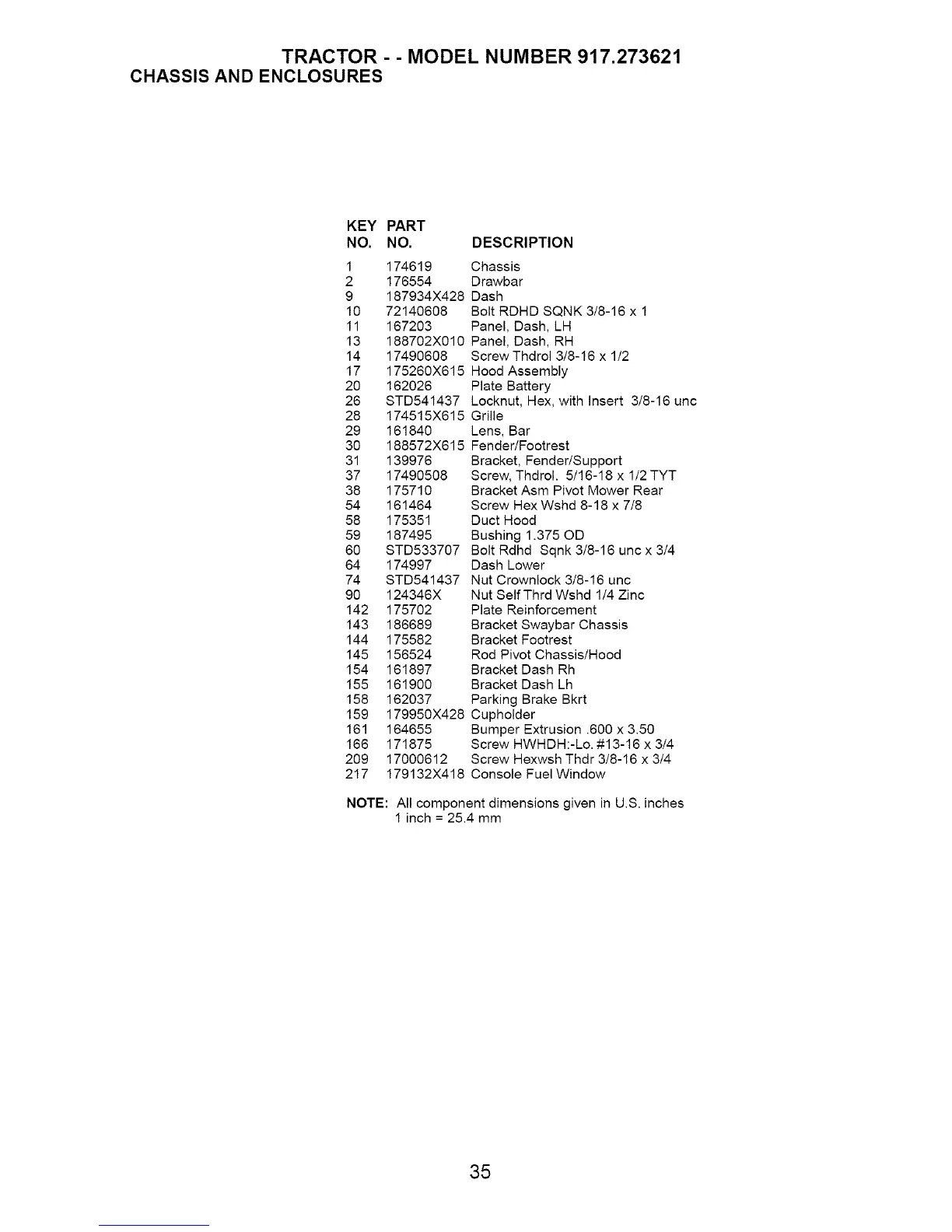

TRACTOR - - MODEL NUMBER 917,273621
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 174619 Chassis
2 176554 Drawbar
9 187934X428 Dash
10 72140608 Bolt RDHD SQNK 3/8-16 x 1
11 167203 Panel, Dash, LH
13 188702X010 Panel, Dash, RH
14 17490608 Screw Thdrol 3/8-16 x 1/2
17 175260X615 Hood Assembly
20 162026 Plate Battery
26 STD541437 Locknut, Hex, with insert 3/8-16 uric
28 174515X615 Grille
29 161840 Lens, Bar
30 188572X615 Fender/Footrest
31 139976 Bracket, Fender/Support
37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT
38 175710 Bracket Asm Pivot Mower Rear
54 161464 Screw Hex Wshd 8-18 x 7/8
58 175351 Duct Hood
59 187495 Bushing 1.375 OD
60 STD533707 Bolt Rdhd Sqnk 3/8-16 unc x 3/4
64 174997 Dash Lower
74 STD541437 Nut Crownlock 3/8-16 unc
90 124346X Nut SelfThrd Wshd 1/4 Zinc
142 175702 Plate Reinforcement
143 186689 Bracket Swaybar Chassis
144 175582 Bracket Footrest
145 156524 Rod Pivot Chassis/Hood
154 161897 Bracket Dash Rh
155 161900 Bracket Dash Lh
158 162037 Parking Brake Bkrt
159 179950X428 Cupholder
161 164655 Bumper Extrusion .600 x 3.50
166 171875 Screw HWHDH:-Lo. #13-16 x 314
209 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
217 179132X418 Console Fuel Window
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
