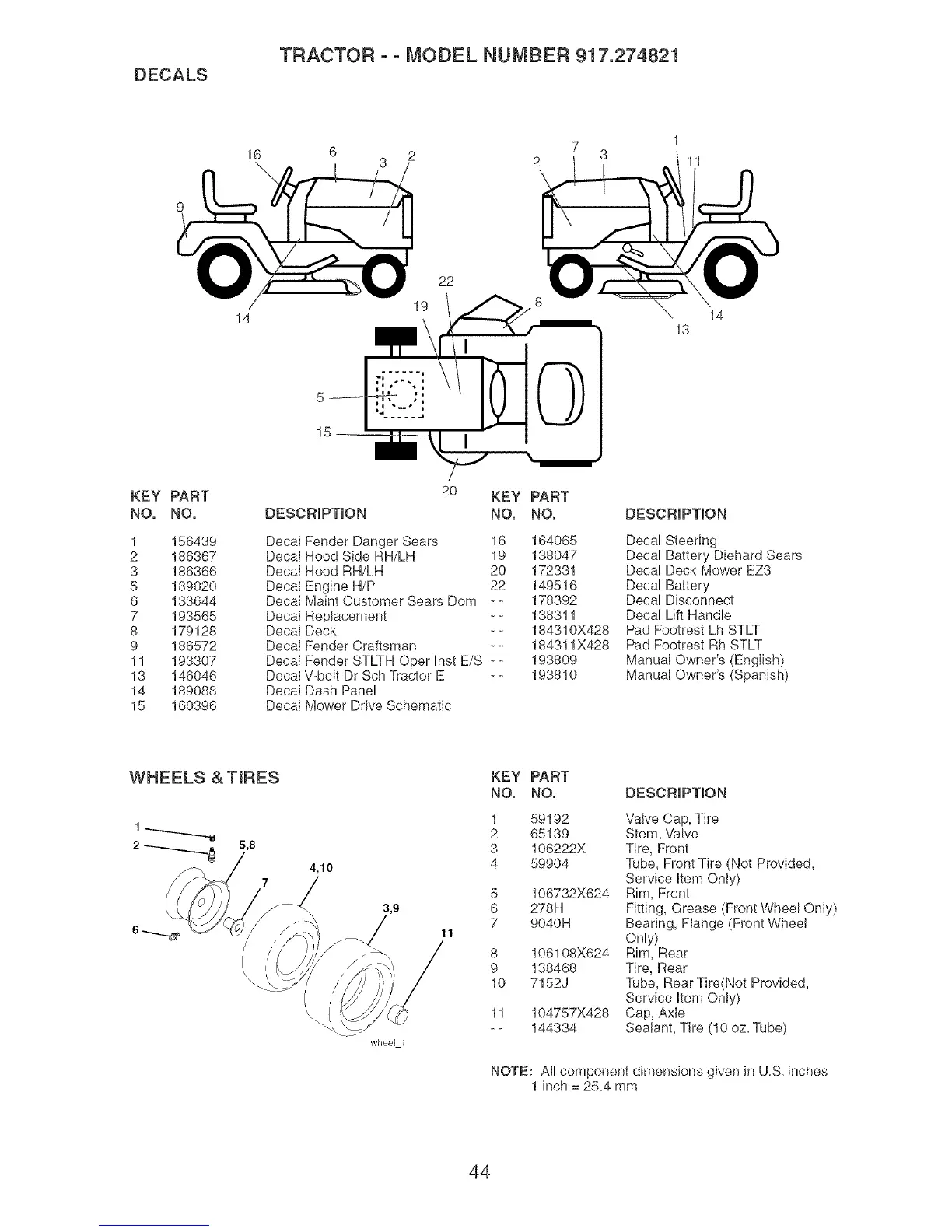

Craftsman 917.274821 - Page 44

DECALS
TRACTOR ° ° MODEL NUMBER 917.274821
16
\
7
3 2 2
1
11
14
5
15--
22
19
14
13
KEY
NO.
PART
NO.
1 156439
2 186367
3 186366
5 189020
6 133644
7 193565
8 179128
9 186572
11 193307
13 146046
14 189088
15 160396
20 KEY PART
DESCRIPTION NO, NO,
Decai Fender Danger Sears 16 164065
Decal Hood Side RH/LH 19 138047
Decal Hood RH/LH 20 172331
Decal Engine H/P 22 149516
Decat Maint Customer Sears Dom - - 178392
Decal Replacement - - 138311
Decal Deck - - 184310X428
Decal Fender Craftsman - - 18431 lX428
Decal Fender STLTH Oper Inst E/S - - 193809
Decal V-belt Dr Sch Tractor E - - 193810
Decal Dash Panel
Decal Mower Drive Schematic
DESCRIPTION
Decal Steering
Decal Battery Diehard Sears
Decal Deck Mower EZ3
Decal Battery
Decal Disconnect
Decal Lift Handle
Pad Footrest Lh STLT
Pad Footrest Rh STLT
Manual Owner's (EngIish)
Manual Owner's (Spanish)
4,10
wheeb 1
11
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
DESCRIPTION
59192 Valve Cap, Tire
65139 Stem, Valve
106222X Tire, Front
59904 Tube, Front Tire (Not Provided,
Service Item Only)
106732X624 Rim, Front
278H Fitting, Grease (Front Wheel Only)
9040H Bearing, Flange (Front Wheel
Only)
106108X624 Rim, Rear
138468 Tire, Rear
7152J Tube, Rear Tire(Not Provided,
Service Item Only)
104757X428 Cap, Axle
144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
44
