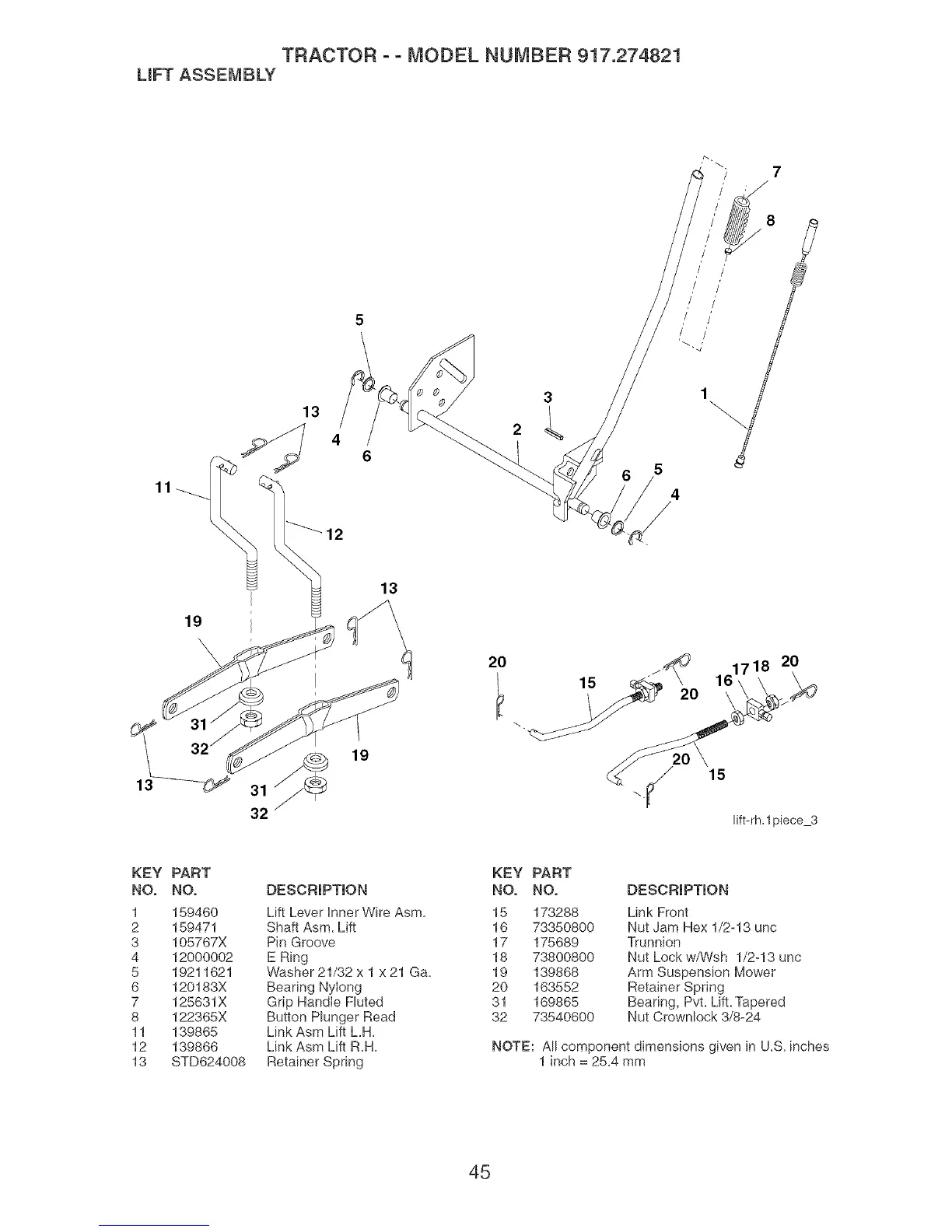

Craftsman 917.274821 - Lift Assembly; Lift Assembly Component Diagram

TRACTOR - - MODEL NUMBER 917.274821
LiFT ASSEfvIBLY
7
11
4
19
\
13
20
19 _ 1531 \.
32
Fift-rh.1piece3
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 159460 Lift Lever Inner Wire Asm. 15 173288
2 159471 Shaft Asm. Lift 16 73350800
3 105767X Pin Groove 17 175689
4 12000002 E Ring 18 73800800
5 19211621 Washer 21/32 x 1 x21 Ga. 19 139868
6 120183X Bearing NyIong 20 163552
7 125631X Grip HandIe Fluted 31 169865
8 122365X Button Plunger Read 32 73540600
11 139865 Link Asm Lift LH.
12 139866 Link Asm Lift R.H.
13 STD624008 Retainer Spring
DESCRIPTION
Link Front
Nut Jam Hex 1/2-13 unc
Trunnion
Nut Lock w/Wsh 1/2-13 unc
Arm Suspension Mower
Retainer Spring
Bearing, Pvt. Lift. Tapered
Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
