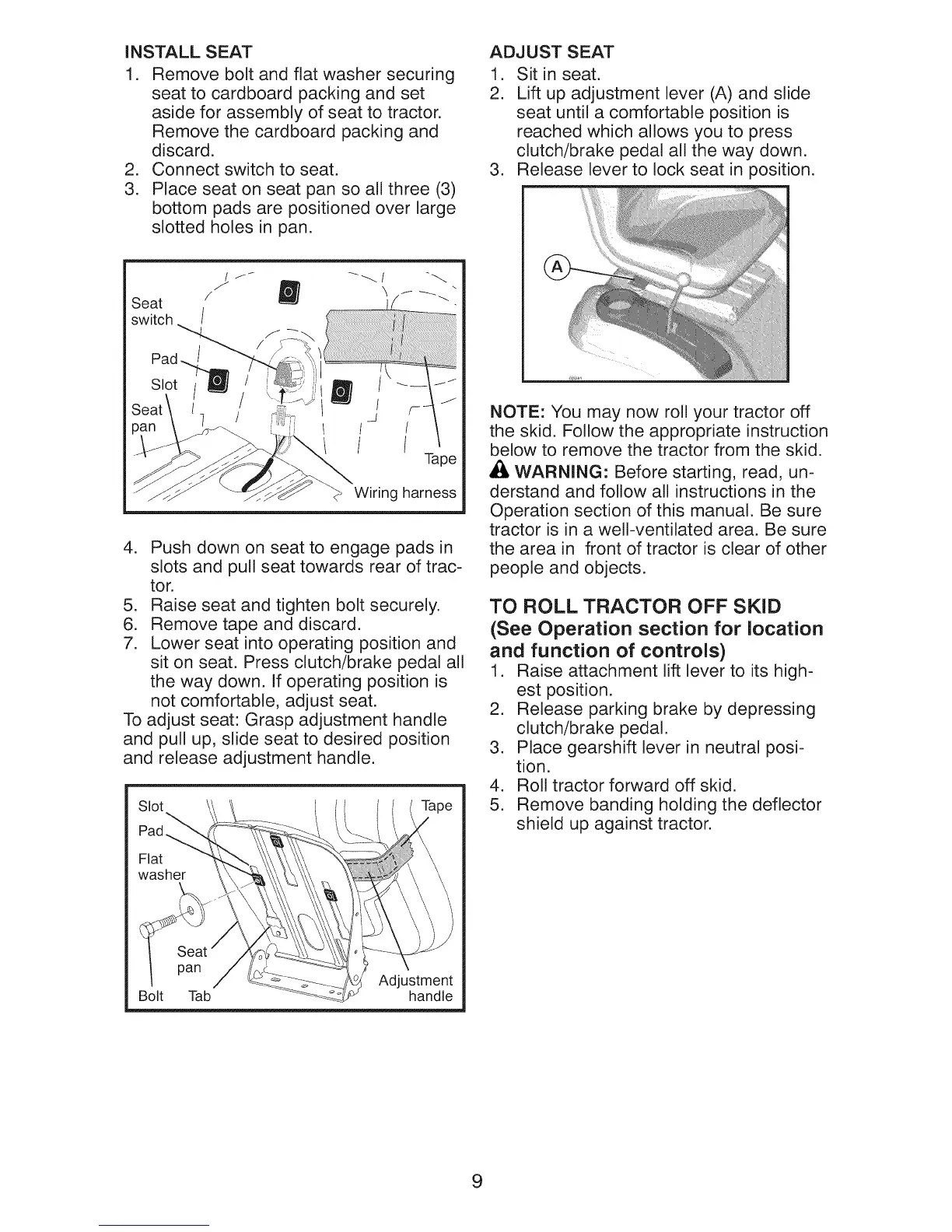

INSTALL SEAT
1. Remove bolt and flat washer securing
seat to cardboard packing and set
aside for assembly of seat to tractor.
Remove the cardboard packing and
discard,
2. Connect switch to seat.
3. Place seat on seat pan so all three (3)
bottom pads are positioned over large
slotted holes in pan.
ADJUST SEAT
1. Sit in seat.
2. Lift up adjustment lever (A) and slide
seat until a comfortable position is
reached which allows you to press
clutch/brake pedal all the way down.
3. Release lever to lock seat in position.
J
Seat /
switch /
Pad"__
Slot/'_
Wiring harness
4. Push down on seat to engage pads in
slots and pull seat towards rear of trac-
tor.
5. Raise seat and tighten bolt securely.
6. Remove tape and discard.
7. Lower seat into operating position and
sit on seat. Press clutch/brake pedal all
the way down. If operating position is
not comfortable, adjust seat.
To adjust seat: Grasp adjustment handle
and pull up, slide seat to desired position
and release adjustment handle.
Slot
Flat
washer
i pan
Bolt Tab
Adjustment
handle
NOTE: You may now roll your tractor off
the skid. Follow the appropriate instruction
below to remove the tractor from the skid.
WARNING: Before starting, read, un-
derstand and follow all instructions in the
Operation section of this manual. Be sure
tractor is in a well-ventilated area. Be sure
the area in front of tractor is clear of other
people and objects.
TO ROLL TRACTOR OFF SKID
(See Operation section for location
and function of controls)
1. Raise attachment lift lever to its high-
est position,
2. Release parking brake by depressing
clutch/brake pedal,
3. Place gearshift lever in neutral posi-
tion.
4. Roll tractor forward off skid.
5. Remove banding holding the deflector
shield up against tractor.
