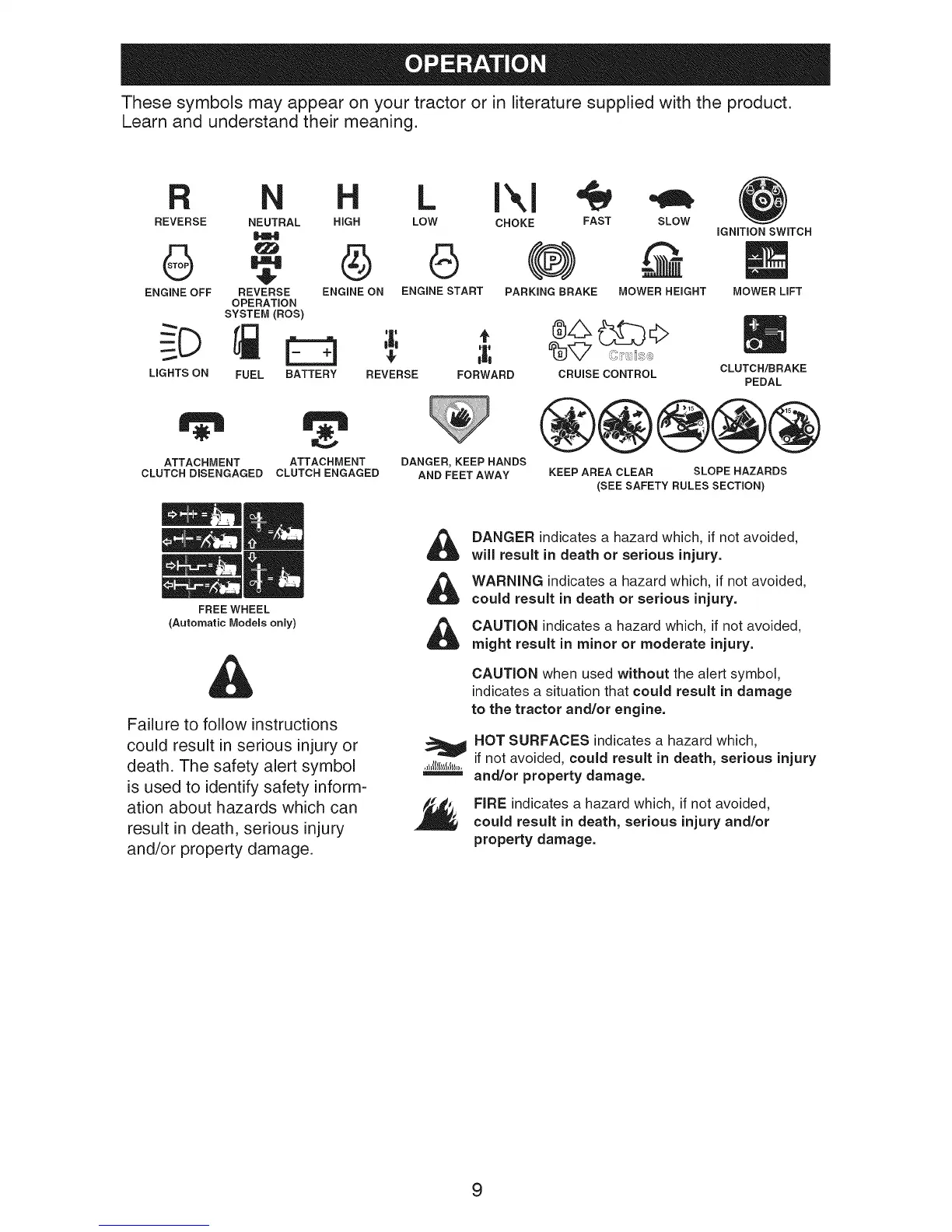

These symbols may appear on your tractor or in literature supplied with the product.
Learn and understand their meaning.
R N H L
REVERSE NEUTRAL HIGH LOW
ENGINE OFF REVERSE ENGINE ON ENGINE START
OPERATION
SYSTEM (ROS)
LIGHTS ON
FUEL BATTERY
ATTACHMENT
CLUTCH DISENGAGED
ATTACH MENT
CLUTCH ENGAGED
FREE WHEEL
(Automatic Models only)
Failure to follow instructions
could result in serious injury or
death. The safety alert symbol
is used to identify safety inform-
ation about hazards which can
result in death, serious injury
and/or property damage.
I\1
CHOKE FAST SLOW
PARKING BRAKE MOWER HEIGHT
iGNITION SWITCH
MOWER LiFT
J;
REVERSE
,t
FORWARD
DANGER, KEEP HANDS
AND FEET AWAY
CRUISE CONTROL CLUTCH/BRAKE
PEDAL
KEEP AREA CLEAR SLOPE HAZARDS
(SEE SAFETY RULES SECTION)
&
&
&
,Jl_llllll/_ll_,,
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not avoided,
could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.
CAUTION when used without the alert symbol,
indicates a situation that could result in damage
to the tractor and/or engine.
HOT SURFACES indicates a hazard which,
if not avoided, could result in death, serious injury
and/or property damage.
FiRE indicates a hazard which, if not avoided,
could result in death, serious injury and/or
property damage.
9
To Next Page
