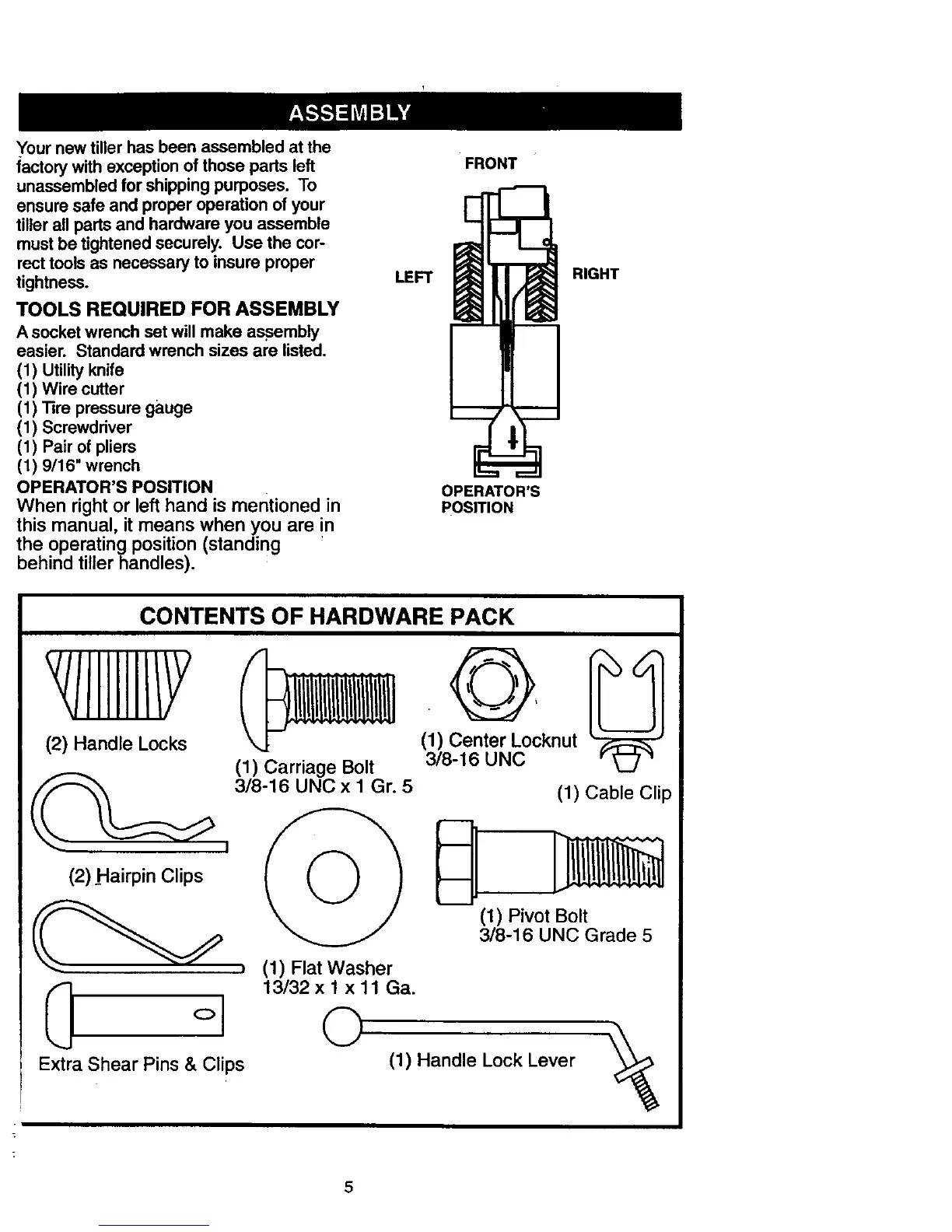

Craftsman 917.29331 - Assembly; Tools Required for Assembly; Operators Position; Contents of Hardware Pack

Your new tiller has been assembled at the
factorywith exception of those parts left
unassembled for shipping purposes. To
ensure safe and proper operation of your
tiller all pads and hardware you assemble
must be tightened securely. Use the cor-
recttools as necessary to insure proper
tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socketwrench set willmake assembly
easier. Standard wrench sizes are listed.
(1) Utilityknife
(1) Wire cutter
(1) Tire pressure gauge
(1) Screwdriver
(1) Pair of pliers
(1) 9/16" wrench
OPERATOR'S POSITION
When right or left hand is mentioned in
this manual, it means when you are in
the operating position (standing '
behind tiller handles).
FRONT
LEFT
OPERATOR'S
POSITION
RIGHT
CONTENTS OF HARDWARE PACK
//IIIIII/Y
(2) Handle Locks
(1) Carriage Bolt
(1) Center Locknut
3/8-16 UNC
3/8-16 UNC x 1Gr. 5
(1) Cable Clip
(2) Hairpin Clips i _ _ ]__
(13/)8.P_NB_lt rade 5
t
(1) Flat Washer
(_ . 13/32 x 1 x 11 Ga.
°I ©
Extra Shear Pins & Clips (1) Handle Lock Lever
5
