Craftsman 917.370430 - Page 41

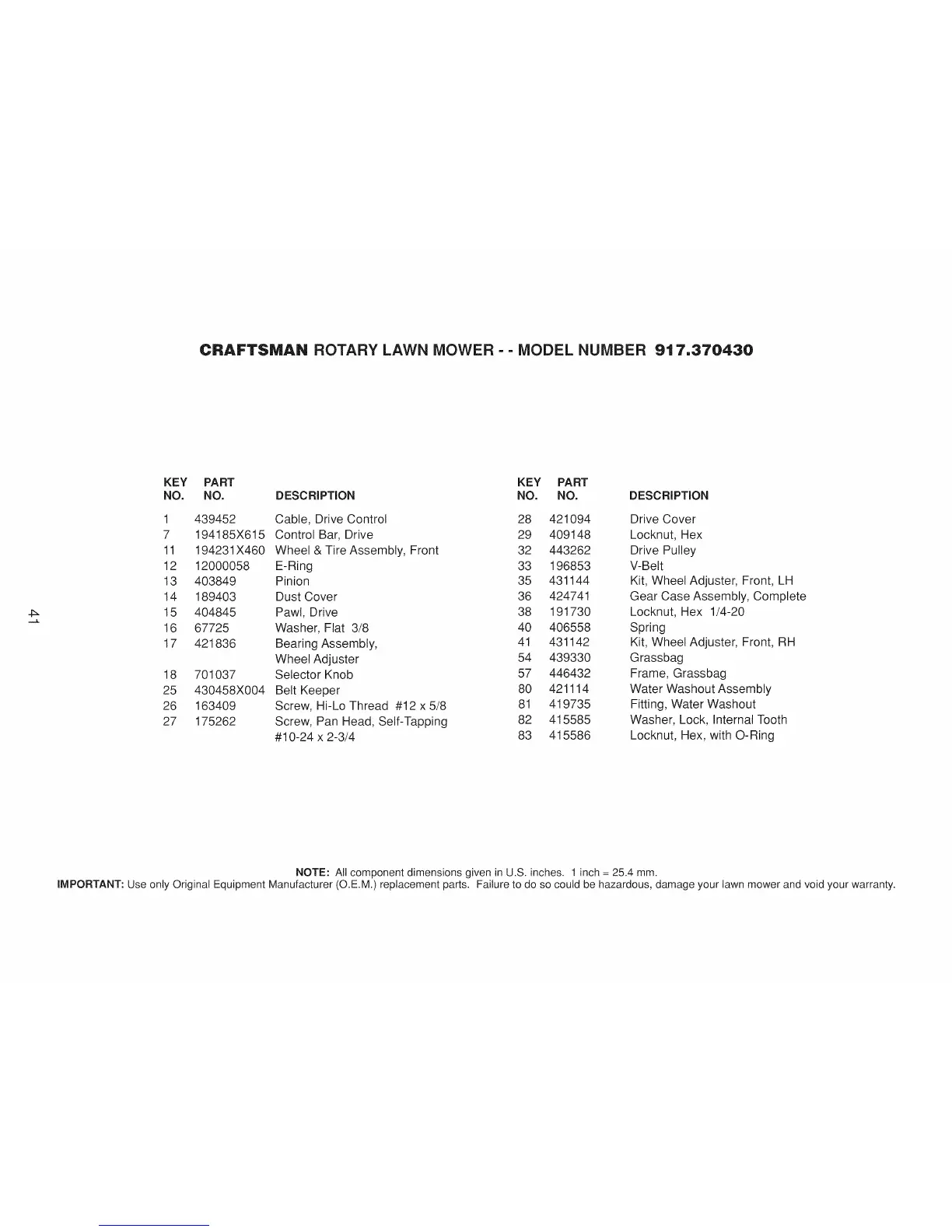

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917,370430
KEY PART KEY PART
NO. NO. DESCRiPTiON NO. NO. DESCRiPTiON
1 439452 Cable, Drive Control 28 421094
7 194185X615 Control Bar, Drive 29 409148
11 194231X460 Wheel & Tire Assembly, Front 32 443262
12 12000058 E-Ring 33 196853
13 403849 Pinion 35 431144
14 189403 Dust Cover 36 424741
15 404845 Pawl, Drive 38 191730
16 67725 Washer, Flat 3/8 40 406558
17 421836 Bearing Assembly, 41 431142
Wheel Adjuster 54 439330
18 701037 Selector Knob 57 446432
25 430458X004 Belt Keeper 80 421114
26 163409 Screw, Hi-Lo Thread #12 x 5/8 81 419735
27 175262 Screw, Pan Head, Self-Tapping 82 415585
#10-24 x 2-3/4 83 415586
Drive Cover
Locknut, Hex
Drive Pulley
V-Belt
Kit, Wheel Adjuster, Front, LH
Gear Case Assembly, Complete
Locknut, Hex 1/4-20
Spring
Kit, Wheel Adjuster, Front, RH
Grassbag
Frame, Grassbag
Water Washout Assembly
Fitting, Water Washout
Washer, Lock, Internal Tooth
Locknut, Hex, with O-Ring
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm.
_MPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your lawn mower and void your warranty.
