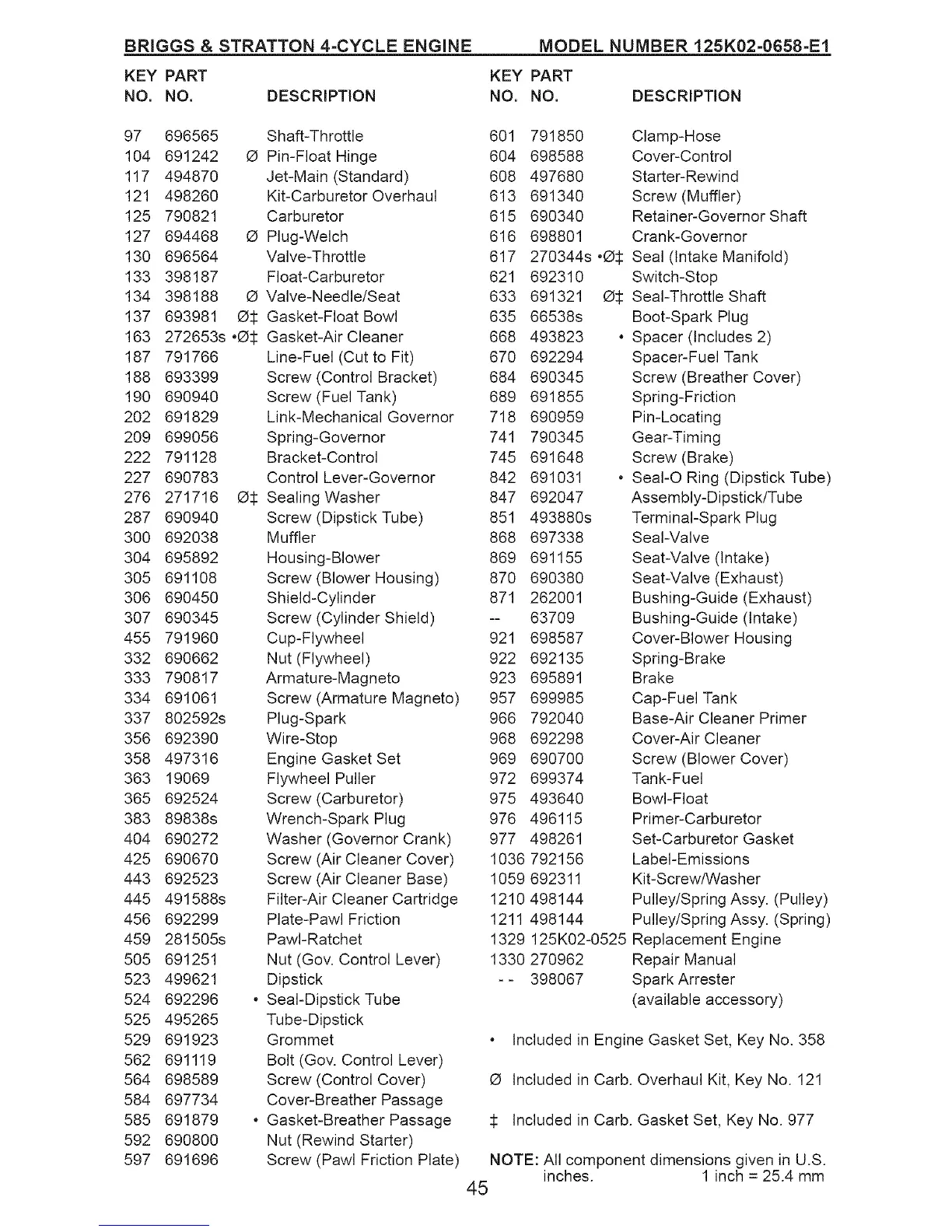

BRIGGS & STRATTON 4=CYCLE ENGINE MODEL NUMBER 125K02=0658=E1
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
97 696565 Shaft-Throttle 601 791850 Clamp-Hose
104 691242 O Pin-FIoatHinge 604 698588 Cover-Control
117 494870 Jet-Main (Standard) 608 497680 Starter-Rewind
121 498260 Kit-Carburetor Overhaul 613 691340 Screw (Muffler)
125 790821 Carburetor 615 690340 Retainer-Governor Shaft
127 694468 O Plug-Welch 616 698801 Crank-Governor
130 696564 Valve-Throttle 617 270344s .O$ Seal (Intake Manifold)
133 398187 Float-Carburetor 621 692310 Switch-Stop
134 398188 O Valve-Needle/Seat 633 691321 O$ Seal-Throttle Shaft
137 693981 O:!: Gasket-Float Bowl 635 66538s Boot-Spark Plug
163 272653s .O$ Gasket-AirCleaner 668 493823 . Spacer(Includes2)
187 791766 Line-Fuel (Cut to Fit) 670 692294 Spacer-Fuel Tank
188 693399 Screw (Control Bracket) 684 690345 Screw (Breather Cover)
190 690940 Screw (Fuel Tank) 689 691855 Spring-Friction
202 691829 Link-MechanicaIGovernor 718 690959 Pin-Locating
209 699056 Spring-Governor 741 790345 Gear-Timing
222 791128 Bracket-Control 745 691648 Screw(Brake)
227 690783 Control Lever-Governor 842 691031 . SeaI-O Ring (Dipstick Tube)
276 271716 O$ Sealing Washer 847 692047 Assembly-Dipstick/Tube
287 690940 Screw (Dipstick Tube) 851 493880s Terminal-Spark Plug
300 692038 Muffler 868 697338 Seal-Valve
304 695892 Housing-Blower 869 691155 Seat-Valve(Intake)
305 691108 Screw (Blower Housing) 870 690380 Seat-Valve (Exhaust)
306 690450 Shield-Cylinder 871 262001 Bushing-Guide (Exhaust)
307 690345 Screw (Cylinder Shield) -- 63709 Bushing-Guide (Intake)
455 791960 Cup-Flywheel 921 698587 Cover-Blower Housing
332 690662 Nut(Flywheel) 922 692135 Spring-Brake
333 790817 Armature-Magneto 923 695891 Brake
334 691061 Screw (Armature Magneto) 957 699985 Cap-Fuel Tank
337 802592s Plug-Spark 966 792040 Base-Air Cleaner Primer
356 692390 Wire-Stop 968 692298 Cover-Air Cleaner
358 497316 Engine Gasket Set 969 690700 Screw (Blower Cover)
363 19069 Flywheel Puller 972 699374 Tank-Fuel
365 692524 Screw(Carburetor) 975 493640 Bowl-Float
383 89838s Wrench-Spark Plug 976 496115 Primer-Carburetor
404 690272 Washer (Governor Crank) 977 498261 Set-Carburetor Gasket
425 690670 Screw (Air Cleaner Cover) 1036 792156 Label-Emissions
443 692523 Screw (Air Cleaner Base) 1059 692311 Kit-Screw/Washer
445 491588s Filter-Air Cleaner Cartridge 1210 498144 Pulley/SpringAssy. (Pulley)
456 692299 Plate-Pawl Friction 1211 498144 Pulley/SpringAssy. (Spring)
459 281505s PawI-Ratchet 1329 125K02-0525 Replacement Engine
505 691251 Nut (Gov. Control Lever) 1330 270962 Repair Manual
523 499621 Dipstick - - 398067 SparkArrester
524 692296 . Seal-Dipstick Tube (available accessory)
525 495265 Tube-Dipstick
529 691923 Grommet . Included in Engine Gasket Set, Key No. 358
562 691119 Bolt (Gov. Control Lever)
564 698589 Screw (Control Cover) O Included in Carb. Overhaul Kit, Key No. 121
584 697734 Cover-Breather Passage
585 691879 . Gasket-Breather Passage $ Included in Carb. Gasket Set, Key No. 977
592 690800 Nut (Rewind Starter)
597 691696 Screw (Pawl Friction Plate) NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
45
