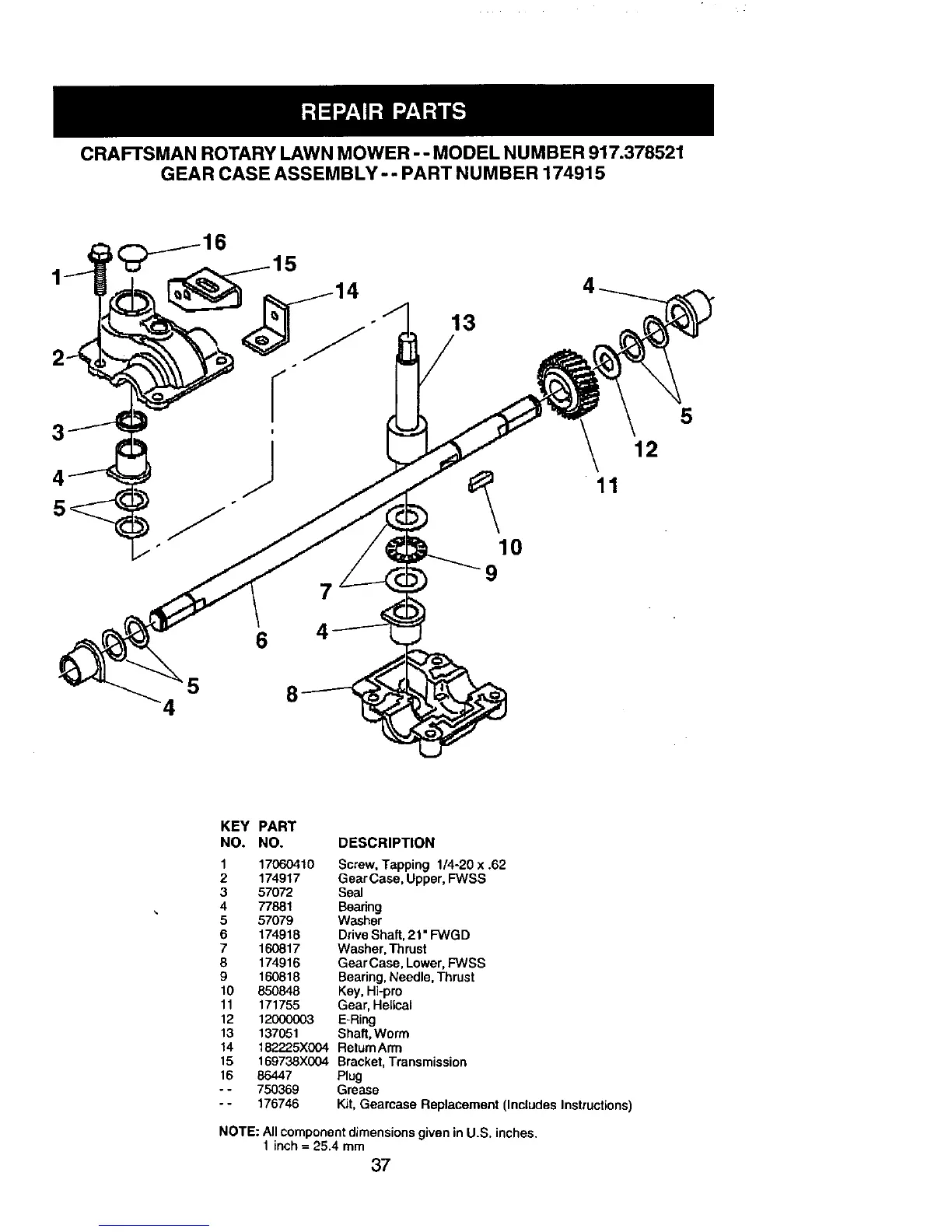

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.378521
GEAR CASE ASSEMBLY - - PART NUMBER 174915
7
13
10
9
11
5
12
6
4 5 8
KEY PART
NO. NO. DESCRIPTION
1 17060410 Screw, Tapping 1/4-20 x .62
2 174917 Gear Case, Upper, FWSS
3 57072 Seal
4 77881 Beanng
5 57079 Washer
6 174918 DriveShaft, 21"FWGD
7 160817 Washer, Thrust
8 174916 Gear Case, Lower,FWSS
9 160818 Bearing,Needle, Thrust
10 850848 Key, Hi-pro
11 171755 Gear, Helical
12 12000003 E-Ring
13 137051 Shaft, Worm
14 182225X004 RetumArm
15 169738X004 Bracket,Transmission
16 86447 Plug
- - 750369 Grease
- - 176746 Kit, Gearcase Replacement (Includes Instructions)
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
