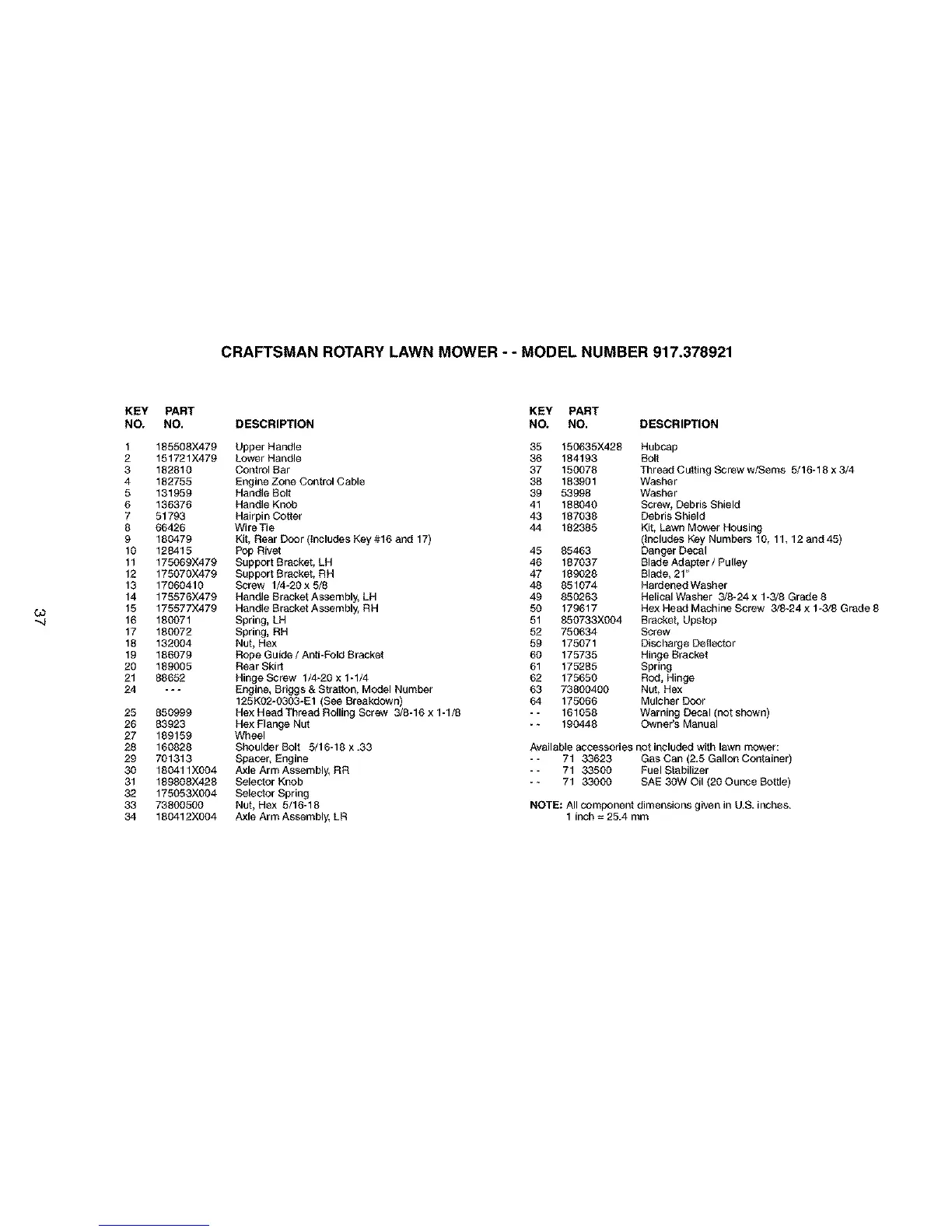

CRAFTSMAN ROTARY LAWN MOWER - - MODEL NUMBER 917.378921
KEY
NO,
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
25
26
27
28
29
30
31
32
33
34
PART
NO.
185508X479
151721X479
182810
182755
131959
136376
51793
66426
180479
128415
175069X479
175070X479
17060410
175576X479
175577X479
180071
180072
132004
186079
189005
88652
850999
83923
189159
160828
701313
180411XO04
189808X428
175053X004
73800500
180412X004
KEY PART
DESCRIPTION NO, NO. DESCRIPTION
Upper Handle
Lower Handle
Control Bar
Engine Zone Control Cable
Handle Bolt
Handle Knob
Hairpin Coeer
WireTie
Kit, Rear Door (Includes Key #16 and 17)
Pop Rivet
Support Bracket, LH
Support Bracket, RH
Screw 1/4-20 x 5/8
Handle Bracket Assembly. LH
Handle Bracket Assembly, RH
Spring, LH
Spring, RH
Nut, Hex
Rope Guide / Anti-Fold Bracket
Rear Skirt
Hinge Screw 1/4-20 x 1-1/4
Engine, Briggs & Stratton, Model Number
125K02-0303-E1 (See Breakdown)
Hex Head Thread Rolling Screw 3/6-16 x 1-1/8
Hex Flange Nut
Wheel
Sbeulder 8olt 5/16-18 x .33
Spacer, Engine
Axle Arm Assembly. RR
Selector Knob
Selector Spring
Nut, Hex 5/16-18
Axle Arm Assembly. LR
35
36
37
38
39
41
43
44
45
46
47
48
49
50
51
52
59
60
61
62
63
64
150635X428 Hubcap
184193 Bolt
150078 Thread C ulting Screw w/Sems 5/16-18 x 3/4
183901 Washer
53998 Washer
188040 Screw, Debris Shield
187038 Debris Shield
182385 Kit, Lawn Mower Housing
(Includes Key Numbers 1O, 11, 12 and 45)
85463 Danger Decal
187037 Blade Adapter / Pu Uey
189028 Blade, 21"
851074 Hardened Washer
850263 Helical Washer 3/6-24 x 1-3/8 Grade 8
179617 Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
850733X004 Bracket, Upstop
750634 Screw
175071 Discharge Deflector
175735 Hinge Bracket
175285 Spring
175650 Rod, Hinge
73800400 Nut, Hex
175066 Mulcber Door
161056 Warning Decal (not shown)
190448 Owner's Manual
Available accessories not included with lawn mower:
- - 71 33623 Gas Can (2.5 Gallon Container)
- - 71 33500 Fuel Stabilizer
• * 71 33000 SAE 30W Oil (20 Ounce Bottle)
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
