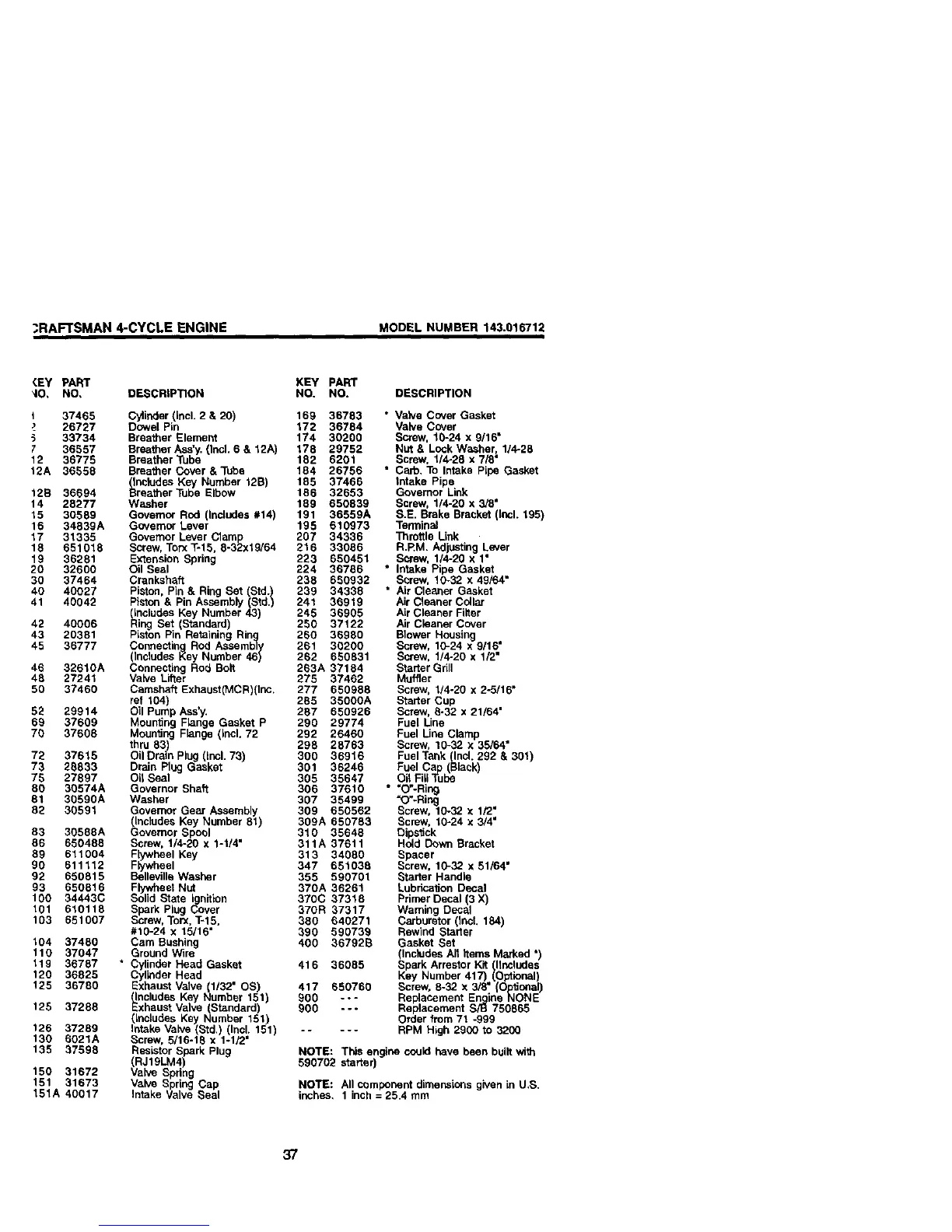

_RAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712
(EY PART KEY PART
tO, NO, DESCRIPTION NO. NO. DESCRIPTION
37465 Cylinder (Incl. 2 & 20) 169 36783 * Valve Cover Gasket
_- 26727 Dowel Pin 172 36784 Valve Cover
33734 Breather Element 174 30200 Screw. 10-24 x 9/16"
7 36557 Breather Ass'y. (Incl. 6 & 12A) 178 29752 Nut & Lock Washer, 1/4-28
12 36775 Breather Tube 182 6201 Screw, 1/4-28 x 7/8 °
t2A 36558 Breather Cover & Tube 184 26756 * Carb. To Intake Pipe Gasket
(IInctudes Key Number 12B) 185 37466 intake Pipe
12B 36694 Breather Tube Elbow 186 32653 Governor Link
14 28277 Washer 189 650839 Screw. 1/4-20 x 3/8"
15 30589 Governor Rod (Includes #14) 191 36559A S.E. Brake Bracket (Incl. 195)
16 34839A Governor Lever 195 610973 Terminal
17 31335 Governor Lever Clamp 207 34336 Throttle Link
18 651018 Screw, Torx T-15, 8-32x19/64 216 33086 R.RM. Adjusting Lever
19 36281 Extension Spring 223 680451 Serew 1/4-20 x 1"
20 32600 Oil Seal 224 36786 * Intake Pipe Gasket
30 37464 Crankshaft 238 650932 Screw. 10-32 x 49164"
40 40027 Piston, Pin & Ring Set (Std.) 239 34338 " Air Cleaner Gasket
41 40042 Piston & Pin Assembly (Std.) 241 36919 Air Cleaner Collar
(includes Key Number 43) 245 36905 Air Cleaner Filler
42 40006 Ring Set (Standard) 250 37122 Air Cleaner Cover
43 20381 Piston Pin Retaining Ring 260 36980 Blower Housing
45 36777 Connecting Rod Assembly 261 30200 Screw, 10-24 x 9/16"
(Includes Key Number 46) 262 650831 Screw, 1/4-20 x 1/2"
46 32610A Connecting Rod Bolt 263A 37184 Starter Grill
48 27241 Valve Lifter 275 37462 Muffler
50 37460 Camshaft Exhaust(MCR)(Inc, 277 650988 Screw, 1/4-20 x 2-5/16"
ref 104) 265 35000A Starter Cup
52 29914 Oil Pump Ass_/. 287 650926 Screw, 8-32 x 21/64"
69 37609 Mounting Flange Gasket P 290 29774 Fuel Line
70 37608 MouctJng Flange (Incl. 72 292 26460 Fuel Line Clamp
thru 83) 298 28763 Screw, 10-32 x 35/64 =
72 37615 Oil Drain Plug (incl. 73) 300 36916 Fuel Tank (Incl. 292 & 301)
73 28833 Drain Plug Gasket 301 36246 Fuel Cap (Black)
75 27897 OIt Seal 305 35647 Oil Fill Tube
80 30574A Governor Shaft 306 37610 " "CY'-RJn9
81 30590A Washer 307 35499 =O"-Ring
82 30591 Governor Gear Assembly 309 650562 Screw, 10-32 x 1/2"
(includes Key Number 81) 309A 650783 Screw, 10-24 x 3/4"
83 30588A Governor Spool 310 35648 Dipstick
86 650488 Screw, 1/4-20 x 1-1/4" 311A 37611 Hold Down Bracket
89 611004 Flywheel Key 313 34080 Spacer
90 611112 Flywheel 347 651038 Screw. 10-32 x 51164"
92 650815 Belleville Washer 355 590701 _tarter Handle
93 650816 Flywheet Nut 370A 36261 Luhdcation Decal
100 34443C Solid State =grlnitlan 370C 37318 Primer Decal (3 X)
101 610118 Spark Plug Cover 370R 37317 Wamleg Decal
103 651007 Screw, Torx, T_15, 380 640271 Carburetor (Incl. 184)
#10-24 x 15/16" 390 590739 Rewind Starter
104 37480 Cam Bushing 400 36792S Gasket Set
110 37047 Ground Wire (Includes Air items Marked ")
119 36787 * Cylinder Head Gasket 416 36085 Spark Arrestor Kit (llncludes
120 36825 Cylinder Head Key Number 417) (Optional)
125 36780 Exhaust Valve (1/32" DS) 417 650760 Screw. 8-32 x 3/8" (Optional)
_lncludes Key Number 151) 900 --- Replacement Engine NONE
125 37288 _xhaust Valve(Standard 900 --- Replacement S/B 750865
(includes Key Number 151) Order from 71 -999
126 37289 Intake Valve (Std,) (Incl. 151) RPM High 2900 to 3200
130 6021A Screw, 5/16-18 x 1-1/2"
135 37598 Resistor Spark Plug NOTE: This engine could have been built with
(RJ19LM4) 590702 starter)
150 31672 Valve Spring
151 31673 Valve Spring Cap NOTE: All component dimensions given in U,S.
151A 40017 Intake Valve Seal inches. 1 inch = 25.4 mm
37
