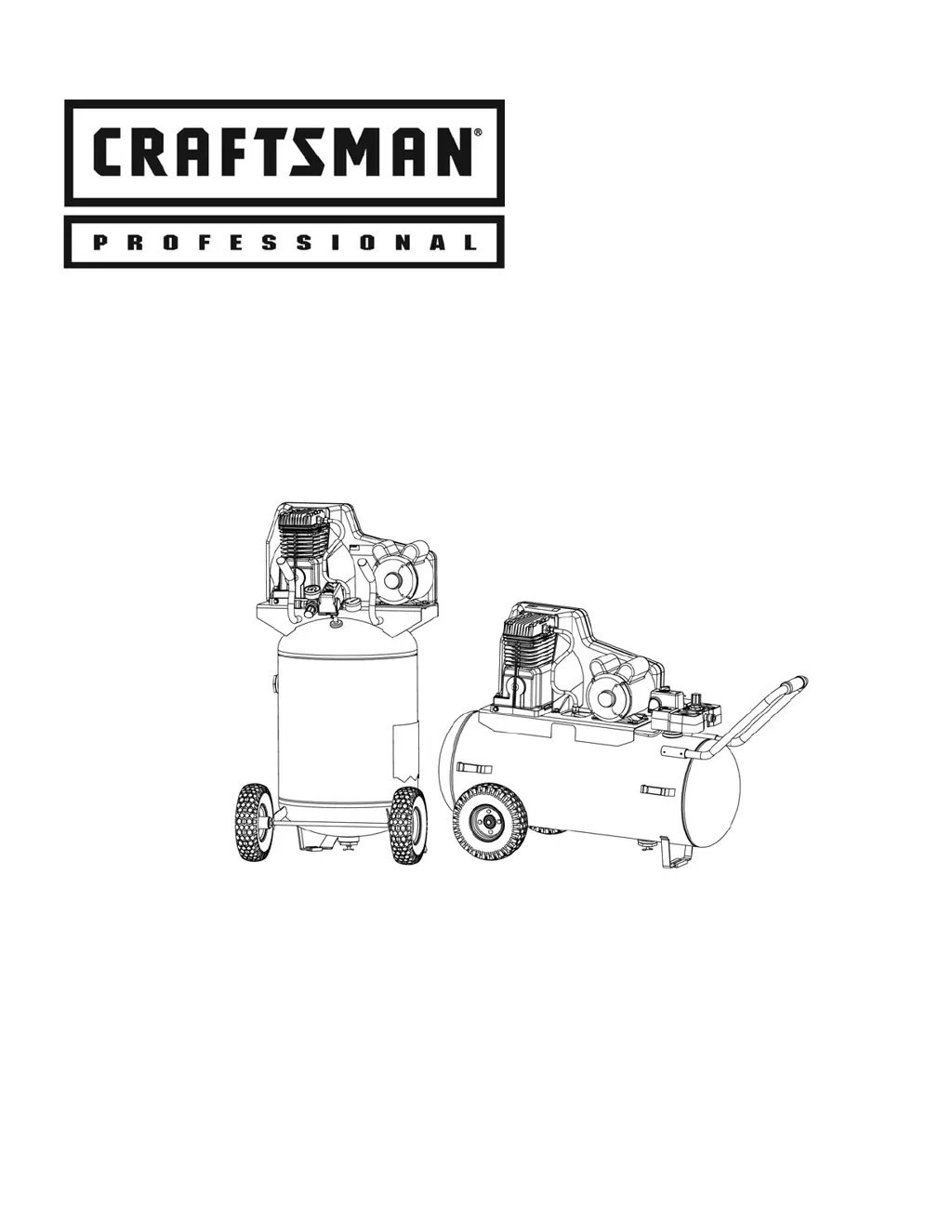

Craftsman 921.16475 - User Manual

Questions and Answers

A
amanda51Aug 14, 2025
Why does my Craftsman 921.16475 trip the circuit breaker?
- R
  Randy MooreAug 14, 2025
  Excessive current draw can trip the circuit breaker due to several reasons. It could be due to low voltage or motor overload. Ensure your power supply is adequate and the compressor is on a dedicated circuit. If you're using an extension cord, try operating the compressor without it. If the compressor is connected to a circuit protected by a fuse, use dual element time delay fuses (Buss Fusetron type “T” only). The drive belt tension may also be too tight; readjust the belt tension. Another possible cause is restricted air passages. Inspect and replace the transfer tubes or the check valve.
B
bmaddenAug 17, 2025
What to do if my Craftsman 921.16475 Air Compressor has low discharge pressure?
- S
  Samuel RodriguezAug 17, 2025
  If your air compressor has low discharge pressure, there are several potential causes. You may have air leaks, so tighten or replace any leaking fittings or connections, being careful not to overtighten them. Another reason could be a restricted air intake; in this case, clean or replace the air filter element(s).
B
brandonloweAug 21, 2025
Why is there oil in the discharge air from my Craftsman 921.16475?
- C
  Cheryl MccormickAug 21, 2025
  Oil in the discharge air can occur due to several reasons. It may be caused by a restricted air intake, so clean or replace the air filter element(s). Another possibility is that the oil level is too high; reduce it to the proper level.
J
Justin MurphyAug 25, 2025
What to do if my Craftsman Air Compressor stalls?
- J
  Jonathan BarronAug 25, 2025
  If your Craftsman Air Compressor stalls, it could be due to low voltage to the motor, ensure you furnish adequate power. Another cause could be a bad check valve.
B
Beth SandovalAug 27, 2025
What to do if my Craftsman Air Compressor won’t start in cold temperatures?
- P
  Patrick Young Jr.Aug 27, 2025
  If your compressor won’t start in cold temperatures, it could be due to too much back pressure in the tank; open the petcock when starting the motor. It might also be because of 40W oil in the crankcase; use synthetic, non-detergent air compressor oil instead. The compressor itself might be too cold, so move it to a warmer location.
J
Joyce JacksonAug 30, 2025
How to prevent my Craftsman 921.16475 from overheating?
- J
  John JonesAug 31, 2025
  Overheating can occur due to poor ventilation. Relocate the compressor to an area with cool, dry, well-circulated air, ensuring it is at least 12 inches from the nearest wall. Dirty cooling surfaces can also cause overheating, so clean all cooling surfaces thoroughly. Restricted air passages can also cause overheating. Inspect and replace transfer tubes or the check valve.
S
Sherry FlynnSep 3, 2025
Why is my Craftsman 921.16475 pump knocking?
- A
  Ariel DuranSep 3, 2025
  A knocking sound in the compressor pump can be caused by a loose motor pulley or pump flywheel; retighten the pulley and flywheel and check their alignment. It could also indicate a low oil level in the pump crankcase, so ensure you keep the oil at the proper level at all times.
N
nmeltonSep 6, 2025
How to reduce excessive belt wear on my Craftsman Air Compressor?
- D
  Debra GlassSep 6, 2025
  Excessive belt wear can be attributed to a pulley being out of alignment; realign the pulley with the compressor flywheel. Improper belt tension can also cause this issue; readjust the tension. Additionally, a pulley that wobbles should be replaced, and you should check for a damaged crankshaft or flywheel.
C
Christopher CharlesSep 10, 2025
Why is air leaking through the bleeder valve of my Craftsman Air Compressor after it shuts off?
- L
  Lisa DiazSep 12, 2025
  Air leaking through the bleeder valve after the compressor shuts off is often due to a dirty or defective check valve. Replace or clean the check valve.

Summary

Important Safety Instructions

Operational Safety Risks

Covers fire, explosion, electrical shock, burns, injury from moving parts and hot surfaces.

Health and Environmental Safety

Addresses breathing hazards, dust, eye protection, and tank integrity.

Compressor Controls and Motor Reset

Motor Reset Switch

Electrical Power Requirements

Dedicated Circuit and Extension Cords

Guidance on using a dedicated circuit and proper extension cord selection.

Grounding Instructions

Details importance and procedure for proper electrical grounding.

Operating Instructions

Break-in of the Pump

Procedure for breaking in the pump's internal parts for the first 30 minutes of operation.

Daily Start-Up

Shutdown Procedure

Maintenance Procedures

Checking and Changing Oil

Drive Belt Tension and Pulley Alignment

Procedure for adjusting belt tension and ensuring proper pulley alignment.

Pulley Alignment and Belt Replacement

Pulley Alignment Correction

Steps to correct pulley misalignment for optimal belt life.

Drive Belt Replacement

Check Valve Maintenance

Troubleshooting Guide

Common Problems and Solutions

Addresses issues like circuit breaker trips, stalling, low pressure, and noise.

Craftsman 921.16475 Specifications

General

Model Number	921.16475
Type	Portable
Max Pressure	150 PSI
Tank Capacity	6 Gallons
Power Source	Electric
CFM at 40 PSI	4.0 CFM
Voltage	120V
Pump Type	Oil-Free
Horsepower	1.5 HP
