ENGLISH
10

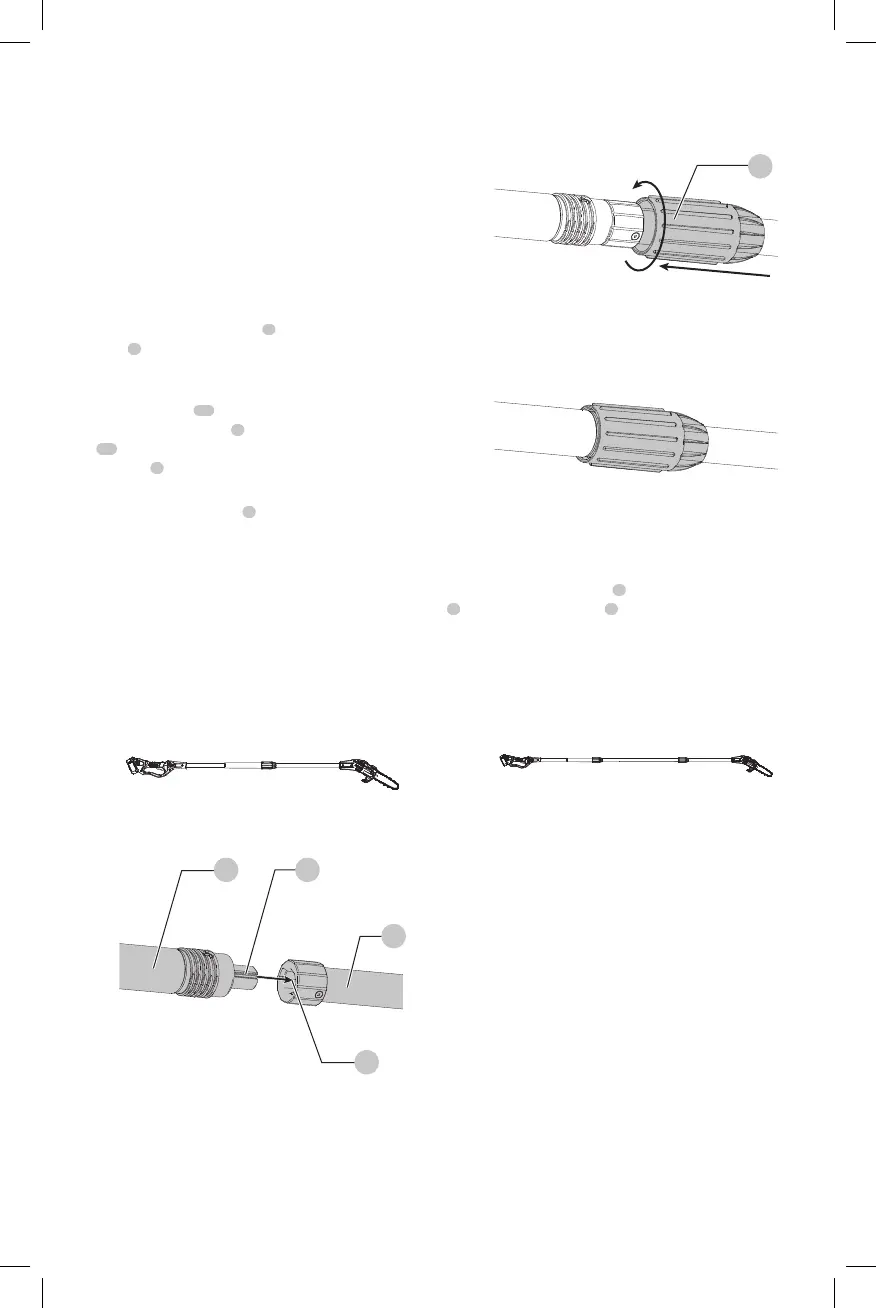

Joining Saw Head Module to
Handle Module (Fig. H–K)

WARNING: Sharp moving blade. To prevent
accidental operation, insure that battery is
disconnected from the handle and that the protective
scabbard is in place on the chain before performing
the following operations. Failure to do this could result
in serious personal injury.
The three assembliess which make up the pole saw are
keyed to insure correct assembly. If an assembly does not
smoothly attach to another do not force fit.
Combining the handle assembly
1
to the saw head
assembly
3
creates a pole saw that is approximately 6'
(1.8m) in length as shown in Figure H.
To attach the handle assembly to the saw head assembly:
1. Align the groove
21
on the outside of the coupling end
of the handle assembly
1
with the tongue

22
on the inside of the coupling end of the saw head
assembly
3
. Refer to FigureI. Push the two sections
completelytogether. Refer to FigureJ.
2. Slide the threaded sleeve
9
on the saw head assembly
down as far as possible and rotate the sleeve clockwise
until it stops and completely covers the threads as
shown in FigureK.

WARNING: Always check to make sure that the
sleeve is completely threaded on and that the red
threads are no longer visible. Not threading the sleeve
completely on could result in the assemblys becoming
disconnected creating a hazardous condition.
Periodically check the connections to insure that no
red threads are visible.
Fig.H
Fig.I
1
21
22
3
Fig.J
9
Fig.K
Joining Center Extension to Saw Head
Module and Handle Module (Fig. A, L)
Adding the center extension
2
to the handle assembly

1
and saw head assembly
3
creates a pole saw that is
approximately 9' (2.7 m) in length as shown in FigureL.
Refer to to Joining Saw Head Module to HandleModule
for directions on how to attach the middle assembly to the
handle assembly and saw head assembly.
Fig.L

WARNING: Always check to make sure that the
sleeve is completely threaded on and that the red
threads are no longer visible. Not threading the sleeve
completely on could result in the assemblys becoming
disconnected creating a hazardous condition.
Periodically check the connections to insure that no
red threads are visible.
DISASSEMBLY

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove the battery pack
before making any adjustments or removing/
installing attachments or accessories. An
accidental start-up can causeinjury.
Detaching Saw Head Module (Fig. M)

WARNING: Sharp moving blade. To prevent
accidental operation, insure that battery is
disconnected from the handle and that the protective
scabbard is in place on the chain before performing
the following operations. Failure to do this could result
in serious personal injury.
