COMPONENTS (FIG. A)
Motor
Be sure your power supply agrees with the nameplate
marking. Voltage decrease of more than 10% will cause loss
of power and overheating. These tools are factory tested; if
this tool does not operate, check power supply.
Intended Use
This blower is designed for household outdoor blower use.
DO NOT use under wet conditions or in presence of
flammable liquids orgases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of
serious personal injury, turn unit off and
disconnect it from power source before making
any adjustments or removing/installing
attachments or accessories. An accidental start-up
can causeinjury.
CAUTION: The tube must be attached to
the housing
5
before use.

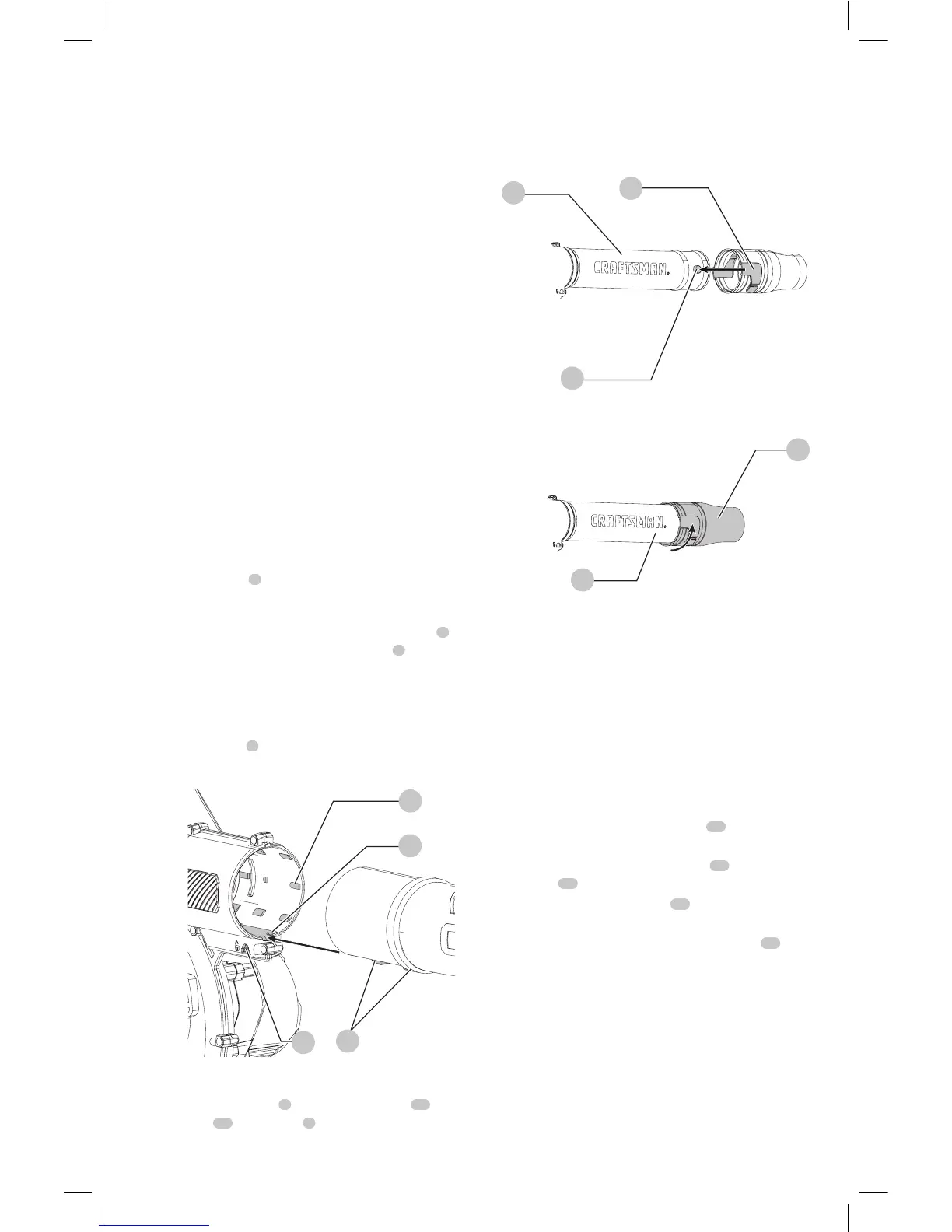

Tube Assembly (Fig. C)
1. To attach the tube to the blower, line up the pegs
6
on the bottom of the tube with the notch
7
on the
bottom of the housing opening. Push the tube into the
blower housing until the lock engages the tube.
2. Pull on the tube to ensure it is securely in place.
3. To remove the tube, insert a screwdriver into the
unlocking hole
8
on the side of the housing. Lift the tab
inside and pull tube out.
Fig.C
5
6
7
8
Attaching Nozzle (Fig. D, E)
1. Line up the channels
9
of the desired nozzle
10
with
the nubs
11
on the tube
4
.
2. Slide the nozzle onto the tube.
3. Firmly twist the nozzle to lock the nubs completely
into the recess of the nozzle. Ensure the nozzle is
securelyattached.
Fig.D
9
11
4
Fig.E
10
4
Attaching Extension Cord to Blower
(Fig. A, F)
WARNING: Do not use with tube removed.
WARNING: Ensure the trigger switch
is not engaged to reduce the risk of starting the
applianceaccidentally.
1. Near the end of the extension cord
12
, fold the
extension cord to create a loop.
2. Feed the loop into the bottom hole
13
of the cord
retainer
14
.
3. Slide the loop over the hook
15
of the cord retainer so
it rests fully in the cord retainer.
4. Plug the extension cord into the power head
16
.
