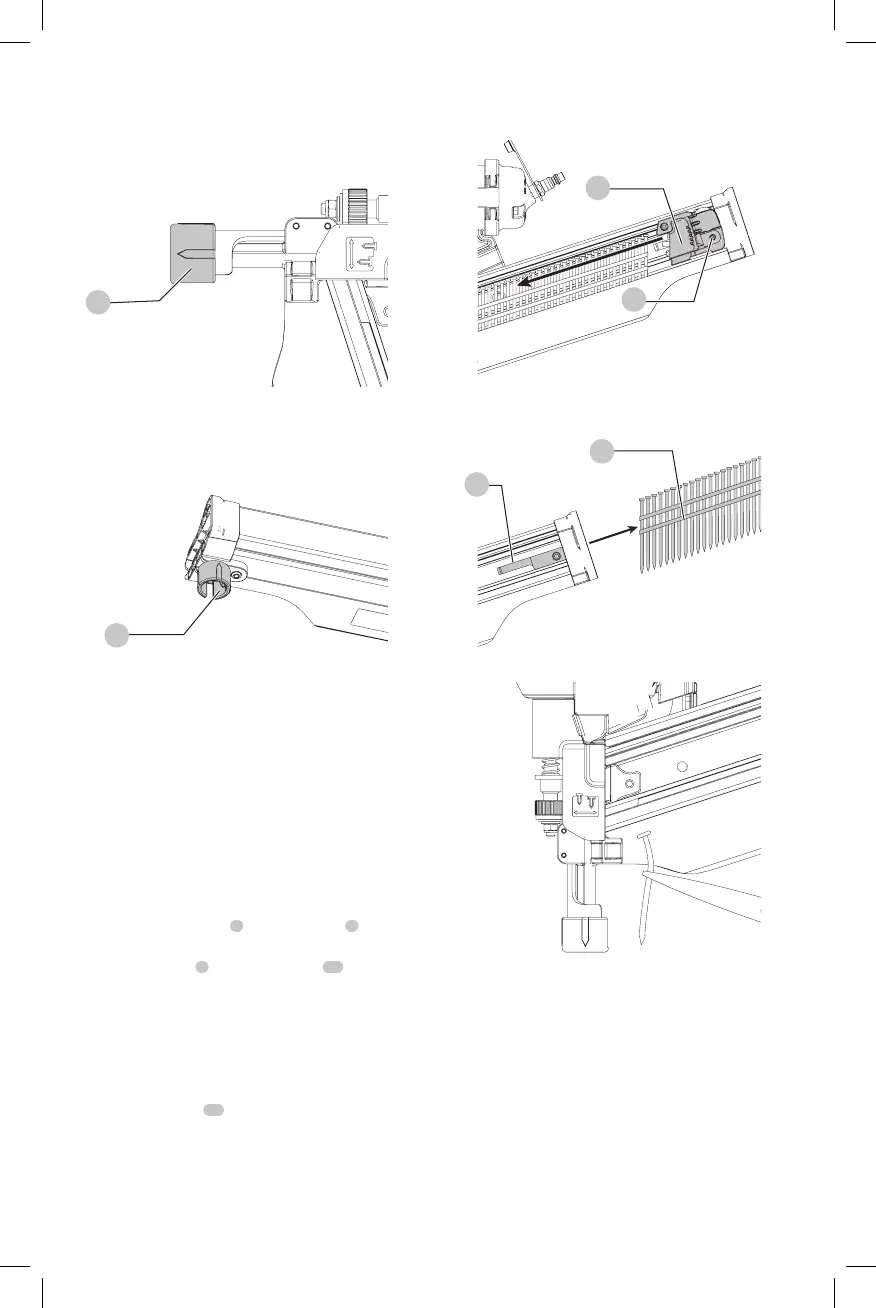

Clearing a Jammed Fastener (Fig. M–P)

WARNING: To reduce the risk of serious personal
injury, turn unit off and remove air supply before
making any adjustments or removing/installing
attachments or accessories. An accidental
actuation can causeinjury.
If a nail becomes jammed in the nose, keep the tool pointed
away from you and follow these instructions toclear:
1. Disconnect the tool from the air supply and engage
triggerlock.
2. Depress pusher release
8
and slide pusher
9
all the
way to the front of themagazine.
3. Depress nail stop
5
and slide fasteners
13
frommagazine.
4. If nail is jammed between the driver and nose force
driver blade back to the top using a 1/4" (6.4mm)
punch and hammer. When the nail is released it will fall
free or can be removed usingpliers.
5. If nail still can not be removed, remove the magazine:
a. Remove screws
16
.
b. Removemagazine.
c. Remove bentnail.
d. Reassemble in reverseorder.
NOTE: Should nails continue to jam frequently in nose, have
tool serviced by an authorized servicecenter.
