NOTE: Do not allow the pusher to snap forward against
the nail strip, allowing this to happen could damage the
nailcollation.
NOTE: This tool has a low nail lock out device which will not
allow the tool to drive fasteners when the fastener quantity
in the magazine is reduced to four.
Trigger

WARNING: Keep fingers AWAY from the trigger when
not driving fasteners to avoid accidental actuation.
Never carry a tool with finger on the trigger. In bump
action mode (contact actuation mode), the tool will
drive a fastener if the contact trip is bumped while the
trigger isdepressed.
The CMP21PL is equipped with a selectable trigger. This
trigger allows the operator to select either single sequential
action trigger mode or bump action trigger mode. In
accordance with the ANSI Standard SNT-101-2015, the
trigger is shipped as a single sequential action trigger mode.
The selectable trigger also has a trigger lock button to keep
the trigger locked at all times when the tool is not inuse.
Single Sequential Actuation Trigger
(Fig. G)

WARNING: Allow the tool to recoil off the work
surface after actuation. If the contact trip remains
depressed a nail will be driven each time the trigger is
released and pulled, which could result in accidental
actuation, possibly causinginjury.
The single sequential trigger’s intended use is for
intermittent fastening where very careful and accurate
placement isdesired.
Contact Actuation Trigger (Fig. G)
The contact actuation trigger is intended for rapid fastening
on flat, stationarysurfaces.
Using the contact actuation trigger, two methods are
available: place actuation and contactactuation.
Actuating Tool (Fig. G, H)

WARNING: To reduce the risk of injury, Always wear
proper eye [ANSI Z87.1 (CAN/CSA Z94.3)] and hearing
protection [ANSI S12.6 (S3.19)] when operating
thistool.
Changing the Actuation Mode
1. Push the trigger lock button
10
down.
2. Rotate the mode selector button
11
counterclockwise.
3. Align the triangular indicator to the desiredmode.
a. For Sequential Mode
as in FigureG.
b. For Contact Mode
as in FigureH.
4. Then push the trigger lock button back up to the
un-lockedposition.

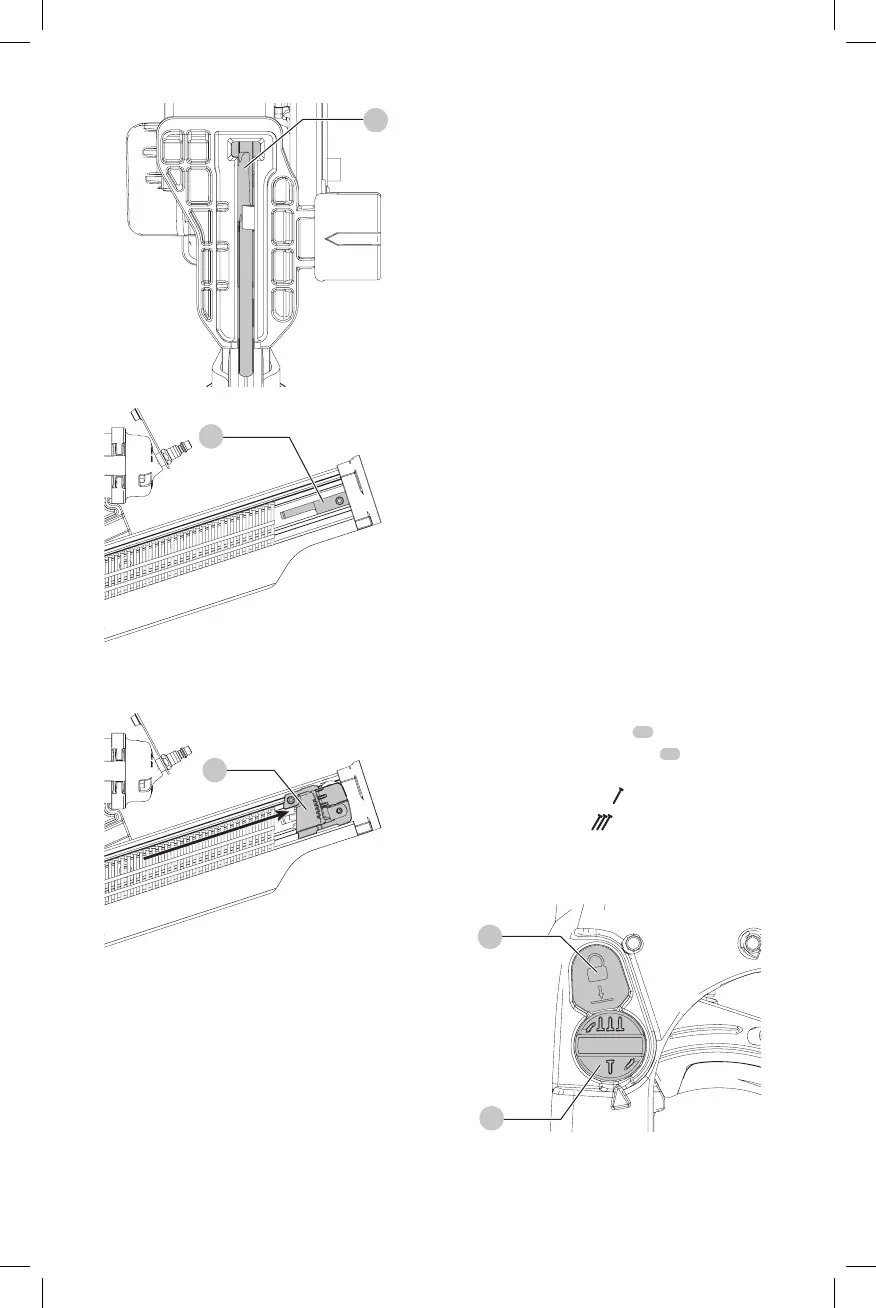

Fig.G
11
10
