OPERATION
ii, ,i ,,,i, i,, "IIII''M"= '"111"'"111
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR
Compare the illustrationswith yourtractor to familiarize yourself with the locations of various controls and adjustments_ Save
.,this manual for future reference_
THROTTLE]CHOKE
CONTROL
CLUTCH/
BRAKE
PEDAL
LIGHT
IGNITION SWITCH
AMMETER SWITCH POSITION
LIFT LEVER
PLUNGER
ATTACHMENT
LIFT LEVER
HEIGHT
ADJUSTMENT
KNOB
ATTACHMENT
CLUTCH LEVER
PARKING BRAKE
GEAR SHIFT
LEVER

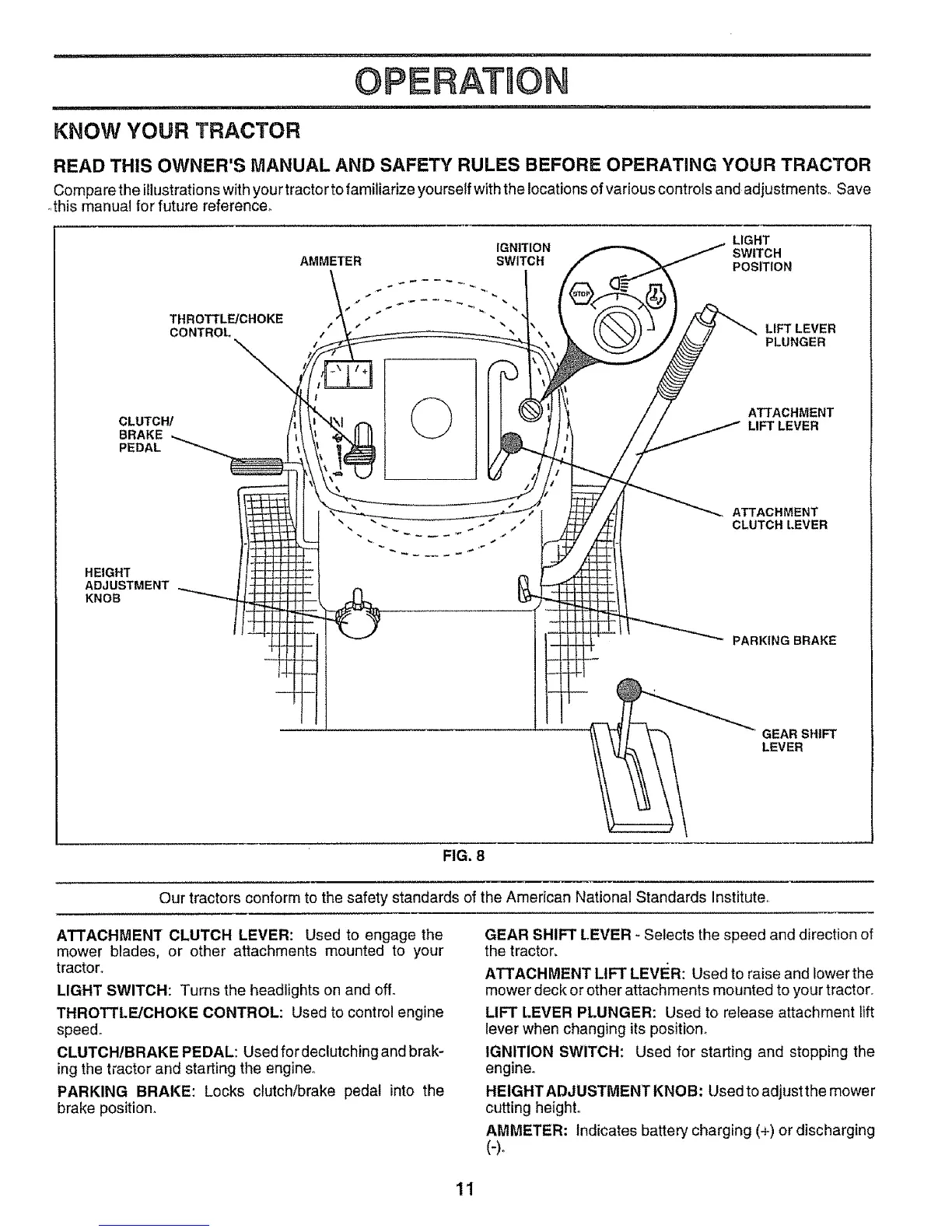

FIG. 8
Our tractors conform to the safety standards of the American National Standards Instituter
ATTACHMENT CLUTCH LEVER: Used to engage the
mower blades, or other attachments mounted to your
tractor°
LIGHT SWITCH: Turns the headlights on and off.
THROTTLE/CHOKE CONTROL: Used to control engine
speed.
CLUTCH/BRAKE PEDAL: Used fordeclutching and brak-
ing the tractor and starting the engine_
PARKING BRAKE: Locks clutch/brake pedal into the
brake position.
GEAR SHIFT LEVER - Selects the speed and direction of
the tractor,
ATTACHMENT LIFT LEVER: Used to raise and lower the
mower deck or other attachments mounted to your tractor_
LIFT LEVER PLUNGER: Used to release attachment lift
lever when changing its position.
IGNITION SWITCH: Used for starting and stopping the
engine°
HEIGHT ADJUSTMENT KNOB; Used to adjust the mower
cutting height.
AMMETER: Indicates battery charging (+) or discharging
(-)o
