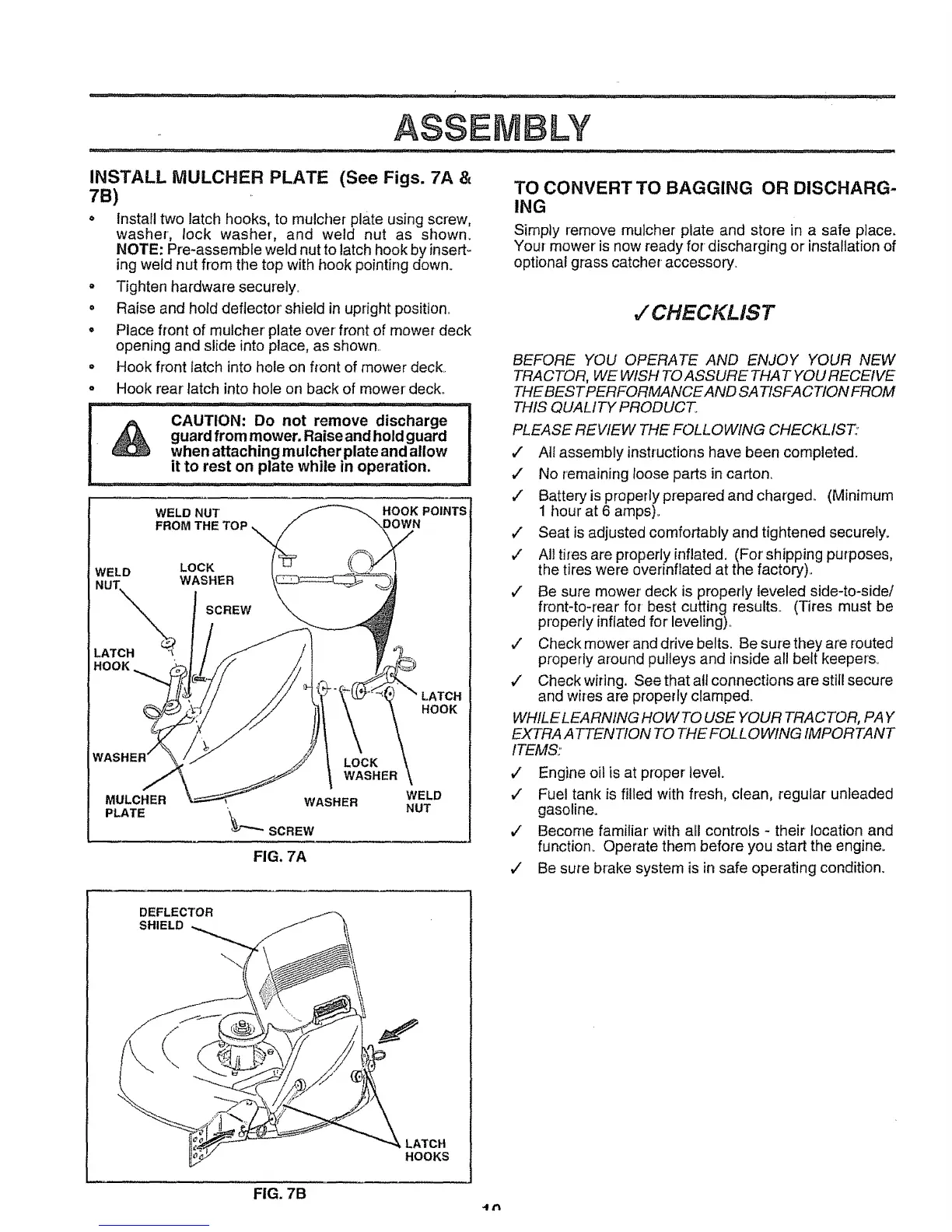

ASSEMBLY
INSTALL IVlULCHER PLATE (See Figs. 7A &
7B)
o Install two latch hooks, to mulcher plate using screw,
washer, lock washer, and weld nut as shown
NOTE: Pre-assemble weld nut to latch hook by insert-
ing weld nut from the top with hook pointing down°
o Tighten hardware securely
o Raise and hold deflector shield in upright position
° Place front of mulcher plate over front of mower deck
opening and slide into place, as shown
° Hook front latch into hole on front of mower deck
o Hook rear latch into hole on back of mower deck.
t_, CAUTION: Do not remove discharge I
guard from mower. Raiseand hold guard I
e_&j_ when attaching mulcher plate and allow
it to rest on plate while in operation. I
WELD NUT HOOK POINTS
FROM THE TOP
WELD
HOOK
LOCK
WASHER
LATCH
HOOK
MULCHER
PLATE
LOCK
WASHER
WASHER
_SCREW
FIG, 7A
WELD
NUT
TO CONVERT TO BAGGING OR DISCHARG-
ING
Simply remove mulcher plate and store in a safe place.
Your mower is now ready for discharging or installation of
optional grass catcher accessory
vrCHECKL IS T
BEFORE YOU OPERATE AND ENJOY YOUR NEW
TRACTOR, WE WISH TO ASSURE THAT YOU RECEIVE
THE BESTPERFORMANCEAND SA TISFACTION FROM
THIS QUALITY PRODUCT
PLEASE REVIEW THE FOLLOW!IVG CHECKLIST:
,/ All assembly instructions have beer] completed
v" No remaining loose parts in carton
J Batteryis properly prepared and charged (Minimum
1 hour at 6 amps)
,I Seat is adjusted comfortably and tightened securely_
,." All tires are properly inflated (For shipping purposes,
the tires were overinflated at the factory)
v" Be sure mower deck is properly leveled side-to-side/
front-to-rear for best cutting resultso (Tires must be
properly inflated for leveling).
,/ Check mower and drive belts Be sure they are routed
properly around pulleys and inside all belt keepers°
,t" Check wiring. See that all connections are still secure
and wires are properly clamped
WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY
EXTRAA TTENTION TO THE FOLLOWING IMPORTANT
ITEMS:
v' Engine oil is at proper level
,/ Fuel tank is filled with fresh, clean, regular unleaded
gasoline
v' Become familiar with all controls - their location and
function_ Operate them before you start the engine.
,/ Be sure brake system is in safe operating condition.
DEFLECTOR
SHIELD
LATCH
HOOKS
FIG. 7B
